AIMS Power 11 Amp PWM Waterproof Solar Charge Controller Overview

Super easy to install, waterproof solar charge controller. This compact controller includes the solar panel and battery cables for quick set up.

AIMS Power 11 Amp PWM Waterproof Solar Charge Controller Features

• Easy to install
• Waterproof - IP68

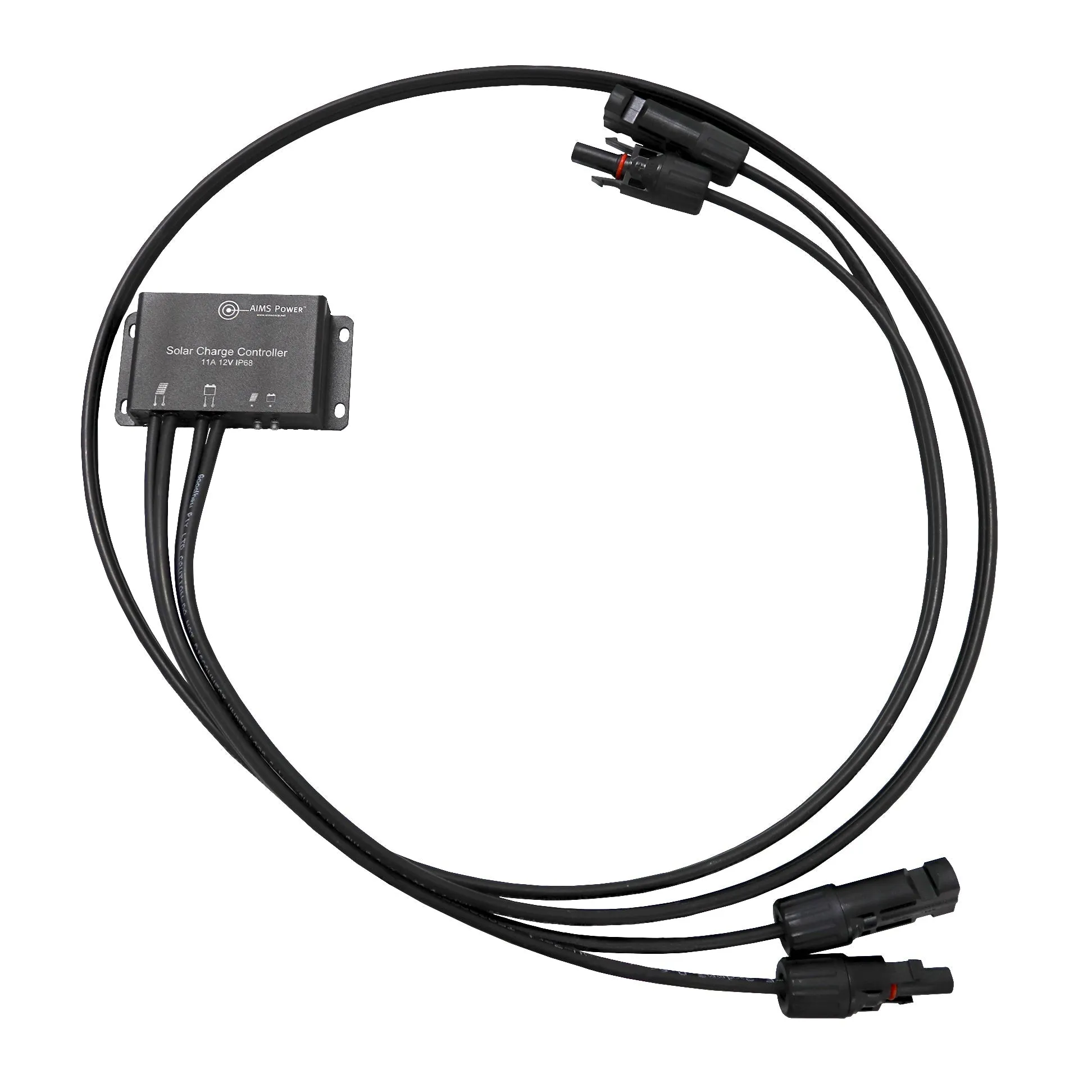

• Built in cables for easy extension using the MC4 connectors
• LED indicators
• 2 stage charger

AIMS Power 11 Amp PWM Waterproof Solar Charge Controller Specifications

• 12V battery systems
• Max charge current - 11A
• Max PV input voltage - <30Voc
• Max PV Input Power - 190W (depending on sunlight)
• Boost charge - 14.2V
• Float charge - 13.8V
• Boost charge recovery voltage - 13.2V
• Over discharge recovery voltage - 11.1V
• PV input cable length - 13 inches
• Battery output cable length - 5 FT
• Boost charge duration - 2 hours
• Operating temp -32F to 140F / -35C to 60C
• IP68
• Weight - .5 lb. unit, 6 lbs. shipped
• Dimensions - 3.25"  X 1.75" x .625"
