Name: AlienWhoop ZER0 Brushed Flight Controller
SKU: 644535

Product Details ＋

Second batch ZER0 boards are available. Improvements include:

New DSMX ZER0 for Spektrum pilots
Gesture selectable motor filters crafted for optimal performance
Gesture selectable low voltage behavior (default blink LED; toggle to force landing when battery critically low)

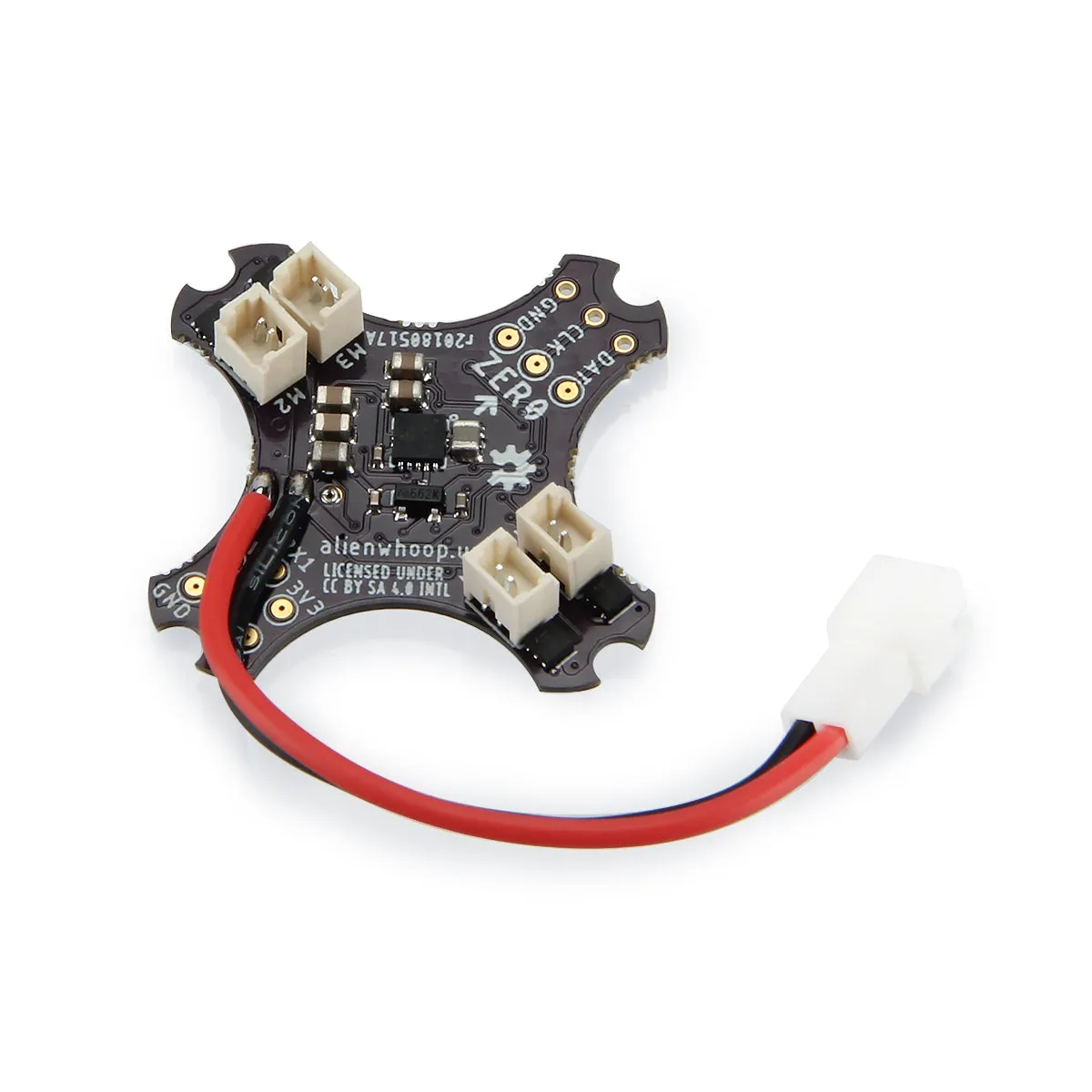

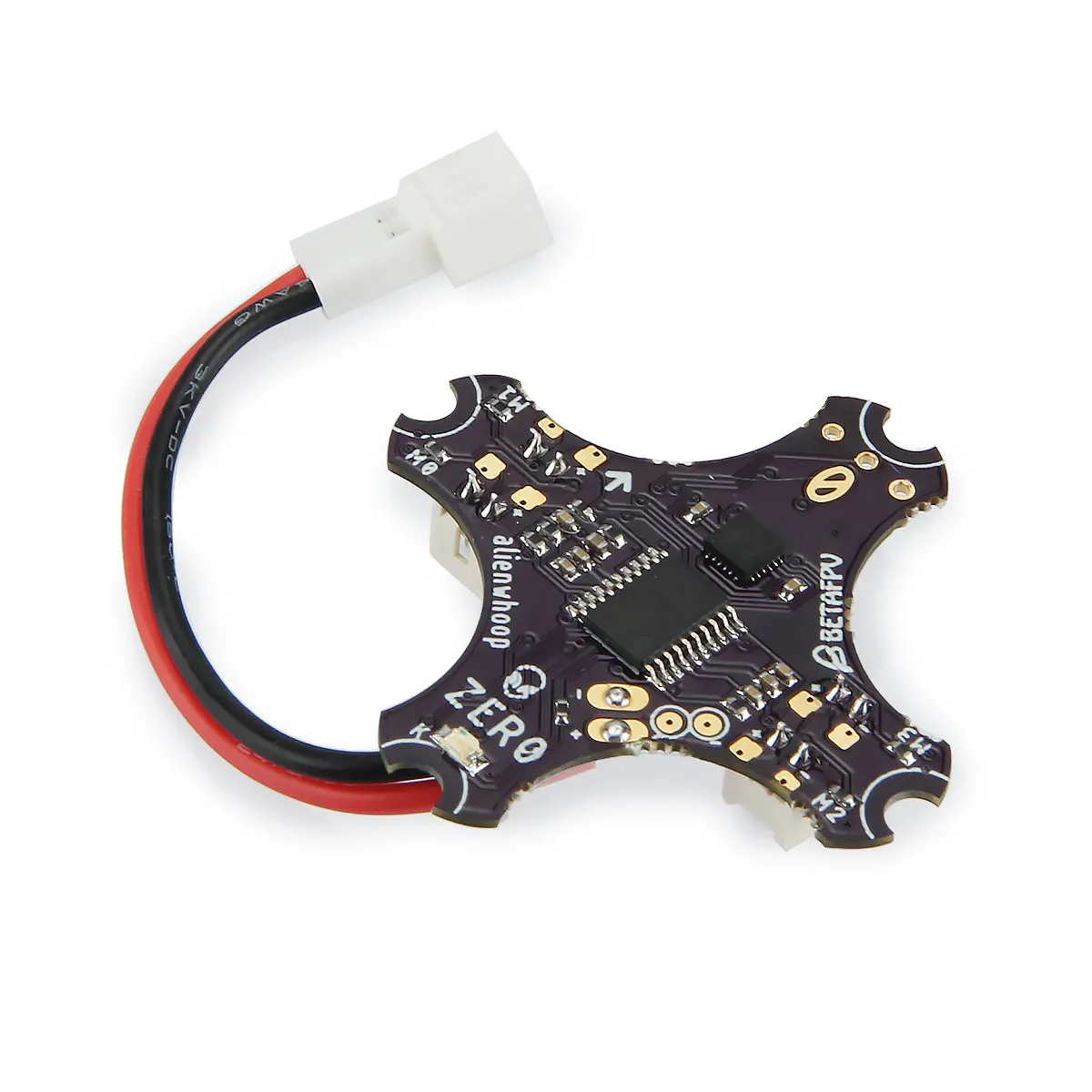

AlienWhoop ZER0 flight controller for Whoop, Blade Inductrix, Eachine, BetaFPV, and other micro brushed quadcopter frames. Best in class flight controller running NotFastEnuf Silverware firmware.

For customers from USA/UK/AU, you could get the FC board from the local store.

USA:
UK:
Australia:

Specification

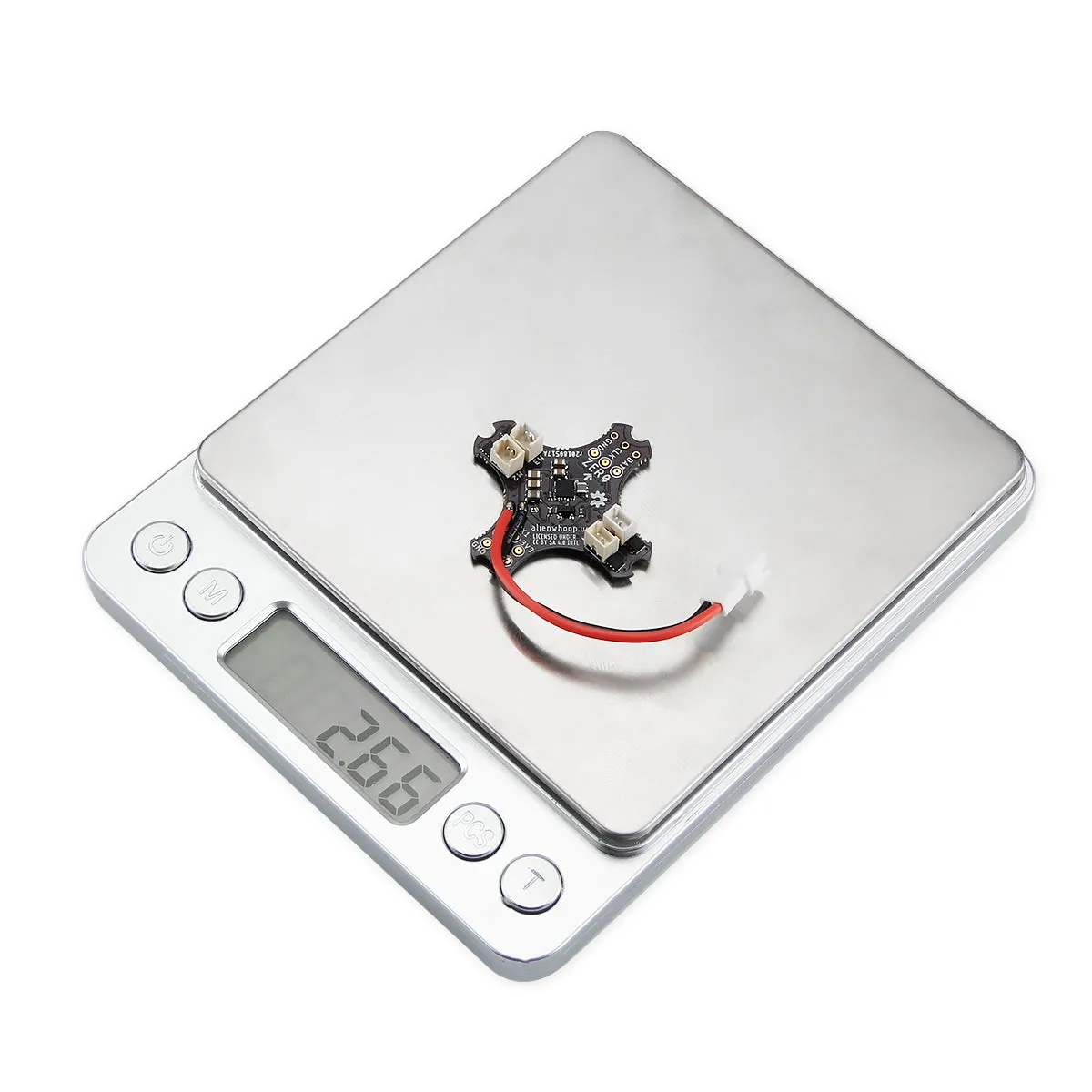

Slim and sleek design for maximum weight savings, power, and responsiveness
Designed by 2 of the top 16 fastest pilots at the 2018 Whoop Invitational championship teamed up with NotFastEnuf

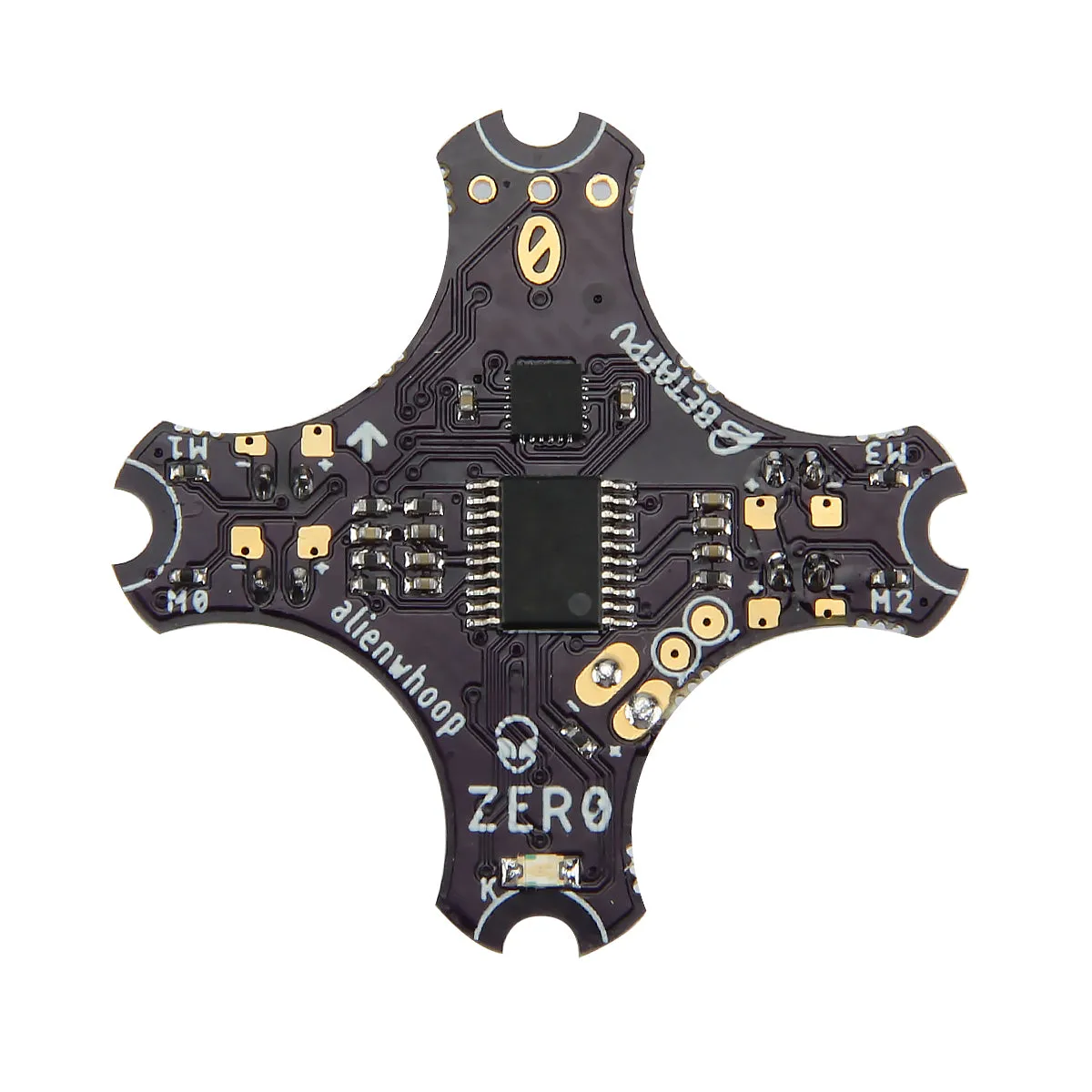

STM32F030F4P ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz (can be overclocked to 64MHz)
Invensense MPU-6881 Six-Axis (Gyro Accelerometer) precision temperature compensating MotionTracking™ Device
Powerful MOSFETs
2oz copper with ENIG plated pads for best power
Factory loaded with NotFastEnuf Silverware for maximum brushed motor performance
5V 2A BEC with 3.3V regulator
Supports 1S or 2S LIPO (JST 2.0 PH aka PowerWhoop connector factory installed)

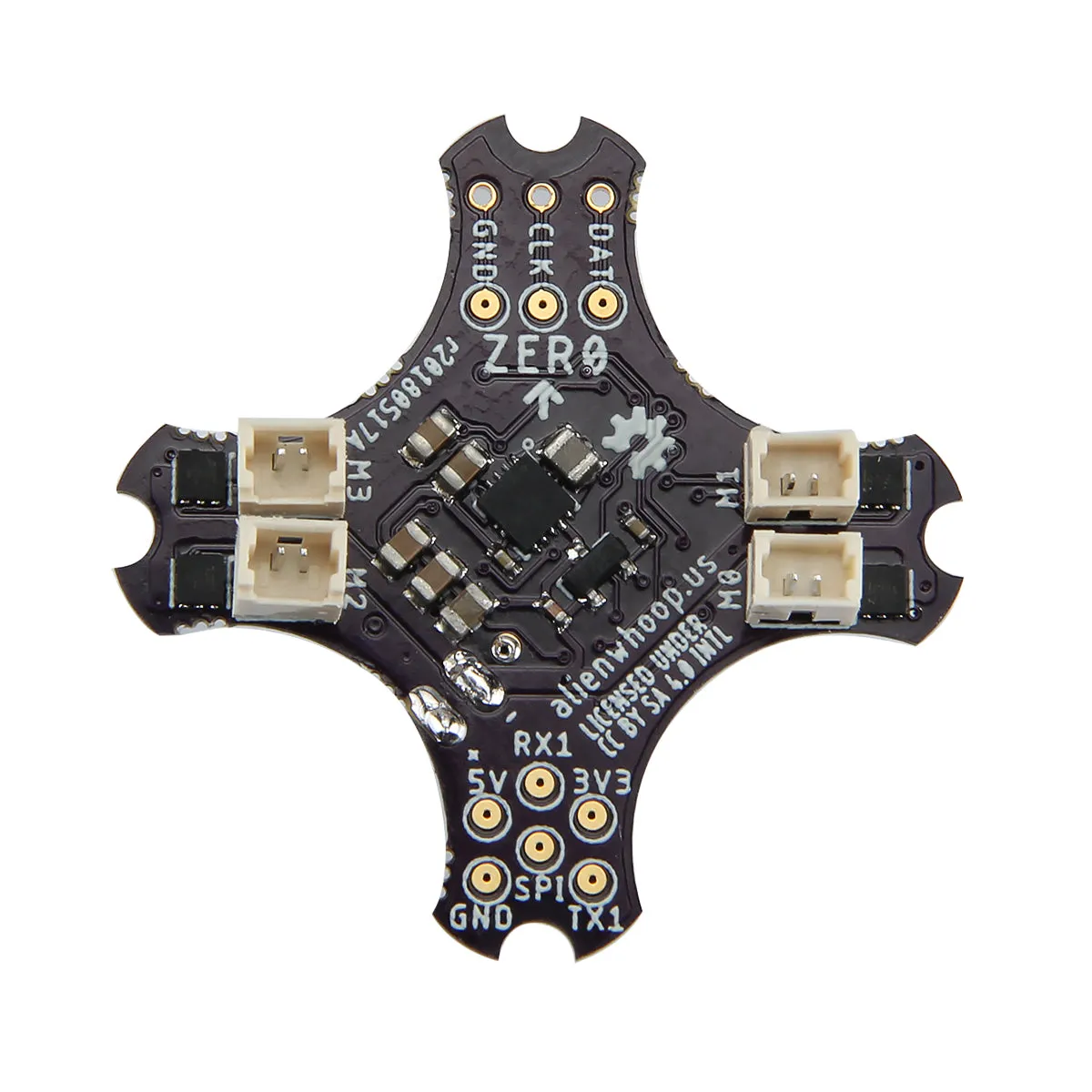

Conveniently located motor plugs (direct solder optional pads on top)
Pads adjacent LIPO pigtail for maximum VTX/camera current and clarity
Voltage sense for advanced flight compensation (and telemetry on supported receivers)
Built-in inverter supports SBUS receivers (Futaba,FrSky,TBS Crossfire)
Extra pads for LED strip, beeper, etc. (requires firmware customization)
Easy updating without disassembly using standard programming header

Receiver Recommend

For Frsky pilots, high recommend the

For Spektrum pilots, we recommend the .

Important

Pilots must supply their own external SBUS or SPI receiver. Currently supporting FrSky SBUS, TBS Crossfire (using SBUS), and Bayang receivers made from Eachine/BWhoop toy transmitter modules
2S power requires customized firmware with compatible PIDs and settings
Attempting to flash while receiver and transmitter powered can brick your fc
Recovery via DFU pads possible but not guaranteed

Currently Unsupported

Silverware was originally designed to support toy transmitters running the Bayang RC protocol. Support for professional RC protocols is being added over time. The AlienWhoop ZER0 will support these once the code is ready :

CRSF (TBS Crossfire can use SBUS instead for now)
iBUS (FlySky)
F.PORT (FrSky one wire protocol)

Printable Pilot's Guide

ZER0 dev team member Michael Montiverdi (MontiFPV) Pilot's Guide will take you step by step from understanding the board layout to getting your transmitter configured.
