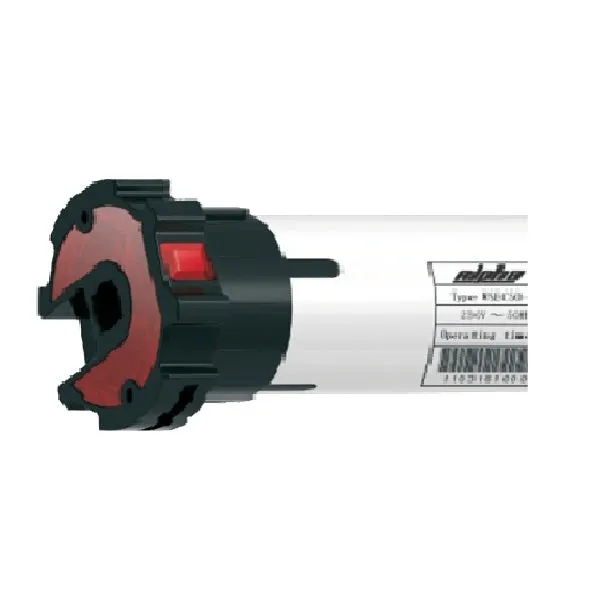

BEST CHOICE FOR AUTOMATION SYSTEM where electrically controlled 4 core motors are required.
This motor is recommended for all external straight drop awning products.
Limits may be set by using either the WSB01 limit setting tool or by using the button on the motor head.
These motors cannot be protected or controlled by Sun/Wind or Motion sensors. Any protective features must be provided by the control system operating the motors.
These motors are NOT remote control and require a WSB01 limit setting tool to electronically set the limits. Control is via a building management system or by wall switches which are available separately. These motors may be parallel wired if desired. Limits may be set by using either the WSB01 limit setting tool or by using the button on the motor head.
Support
Technical information
45mm diameter
240V / 50Hz
Electronic limit switch
For use with C-Bus and similar systems
Parallel wiring compatible
Counter balanced noise suppression
| RATED TORQUE (Nm) | 30 |
| OUTPUT SPEED (rpm) | 17 |
| NOMINAL CONSUMPTION (W) | 226 |
| NOMINAL VOLTAGE (V) | 240 |
| NOMINAL CURRENT (A) | 0.95 |
| RUNNING TIME (Min) | 4 |
| PROTECTION INDEX (IP) | 44 |
| TOTAL LENGTH (mm) | 570 |
| MAXIMUM TURNS | INFINITY |
| NET WEIGHT (kg) | 2.20 |
Product numbers
WSEC503017
