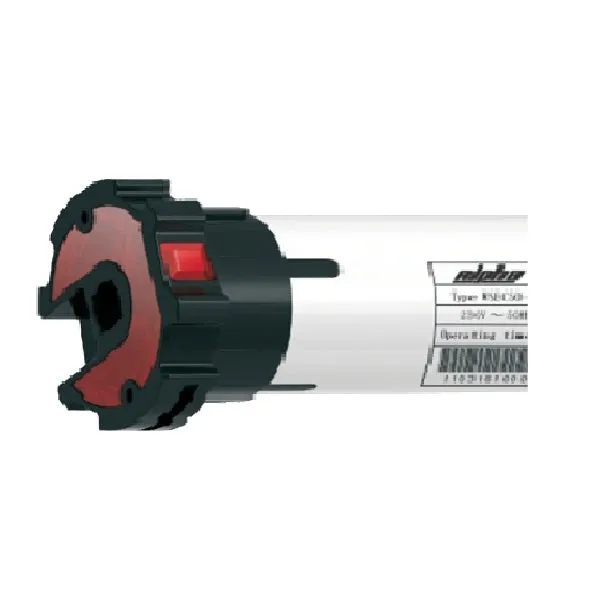

Also referred to as “Cassette Awning” motors, these motors are designed to automatically set their inner limit based on tension.
The outer limit is set manually using the WSB01 limit setting tool and it will find its own inner stopping position by detecting the resistance as it reaches the fully closed position the first time it is closed. After this the motor will stop in this position after detecting an increased resistance of 25% while moving.
These motors cannot be protected or controlled by Sun/Wind or Motion sensors. Any protective features must be provided by the control system operating the motors.
Support
Technical information
45mm diameter
240V / 50Hz
Electronic limit switch
For use with C-Bus and similar systems
Parallel wiring compatible
Counter balanced noise suppression
| RATED TORQUE (Nm) | 50 |
| OUTPUT SPEED (rpm) | 13 |
| NOMINAL CONSUMPTION (W) | 244 |
| NOMINAL VOLTAGE (V) | 240 |
| NOMINAL CURRENT (A) | 1.06 |
| RUNNING TIME (Min) | 4 |
| PROTECTION INDEX (IP) | 44 |
| TOTAL LENGTH (mm) | 600 |
| MAXIMUM TURNS | INFINITY |
| NET WEIGHT (kg) | 2.30 |
Product numbers
WSEC503017A
