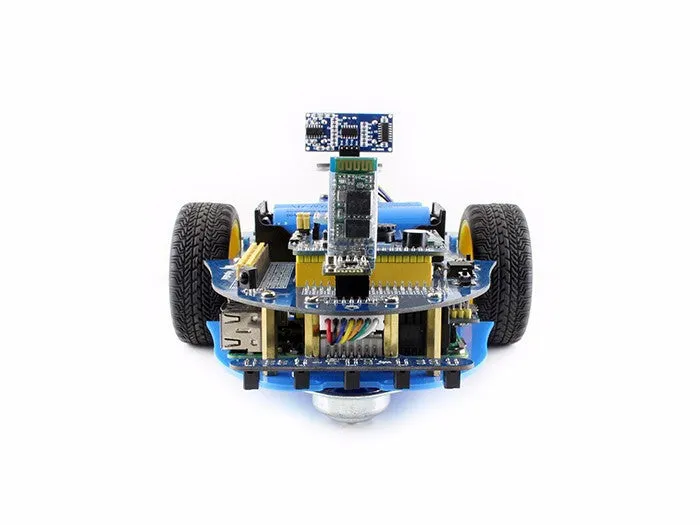

This kit comes with controller board UNO PLUS, AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), ultrasonic sensor, Bluetooth module, and a versatile Arduino accessory shield.

While utilizing UNO PLUS as controller board, this kit is based on the Arduino software/hardware open source platform. Combined with the modular design, it's an ideal platform to get started with Arduino robot.

UNO PLUS Features

UNO PLUS is a development board compatible with the Arduino UNO R3, an improved & enhanced alternative solution for Arduino UNO R3.

UNO PLUS Vs UNO R3：

AlphaBot Features

• Raspberry Pi/Arduino interfaces, works with either one separately, or both

• Arduino extend header, supports Arduino shields

• Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.

• LM298P motor driver with diode protection circuit, more safety

• LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino

• TLC1543 AD acquisition chip, allows the Pi to use analog sensors

Accessory Shield integrates common used accessories/components listed as follows :

• Joystick (5 directions)


• Adjustable potentiometer

• Buzzer

• RGB LED

• Temperature sensor

• 3-axis digital accelerometer

• High precision RTC

• 0.96inch OLED

• XBee interface

1. ATMEGA328P-AU

2. AMS1117-3.3 : 3.3V voltage regulator

3. NCP1117ST50T3G : 5V voltage regulator

4. FT232RL : USB to UART convertor

5. Arduino interface


• compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7

• solder pads provided, supports prototype breadboard

• ICSP interface

• MICRO USB connector : for uploading program OR serial port debugging

• Power output header : 3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards

• FT232 pins : for burning Bootloader into the microcontroller

• DC input : 7V ~ 12V

• Reset button

• Power indicator

• Serial port Rx/Tx indicator

• User LED

• Power configuration switch : for configuring the operating voltage

• Bootloader selection switch


• turn ON : the board will reset when power-up OR other USB devices were detected connecting to the PC

• turn OFF : the onboard program runs immediately when power-up, and the board will not reset when other USB devices were detected connecting to the PC

1. Raspberry Pi interface: for connecting Raspberry Pi

2. Arduino interface: for connecting Arduino

3. Motor interface

4. Ultrasonic module interface

5. Servo module interface

6. Obstacle avoidance module interface

7. Speed measuring interface

8. Battery holder: supports 18650 batteries

9. Reserved power input (not soldered): for connecting other external power supply

10. Arduino expansion header: for connecting Arduino shields

11. UART interface: for connecting Bluetooth module, to control the robot remotely via Bluetooth

12. SPI interface: for connecting NRF24L01 wireless module

13. Line tracking module interface

14. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors

15. LM298P: dual H bridge motor driver chip, up to 2A current

16. Anti-reverse diode

17. Power switch

18. LM2596: 5V regulator

19. Power indicator

20. UART switch: turn on to enable serial communication between Raspberry Pi and Arduino

21. IR receiver: control the robot remotely via infrared

22. Raspberry Pi/Arduino selection: select the Raspberry Pi or Arduino to control the robot peripherals

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

Package Contents		Products
Item	Description	AlphaBot	AlphaBot-Ar-Basic	AlphaBot-Ar-Bluetooth	AlphaBot-Pi Acc Pack	AlphaBot-Pi
RPi3 B	Raspberry Pi 3 Model B					√
UNO PLUS	enhanced control board, Arduino compliant		√	√
AlphaBot chassis kit	mainboard, wheels, drivers, etc.	√	√	√	√	√
Tracker Sensor	line tracking module	√	√	√	√	√
Photo Interrupter Sensor	speed measuring module (2pcs)	√	√	√	√	√
Infrared Proximity Sensor	obstacle avoidance module (2pcs)	√	√	√	√	√
IR remote controller	remotely control the robot	√	√	√	√	√
SG90	servo		√	√	√	√
Ultrasonic sensor	ultrasonic obstacle avoidance, distance measuring		√	√	AlphaBot, Bluetooth robot building kit for Arduino Title: Localstock Overseasstock $ 71.24 $ 54.80 Please select combo product attributes The combo subtotal is $,SAVE$ Unavailable Add to Cart Buy It Now You May Also Like $ 28.64 4Port Usb 3.0 X1 Pcie Bus,Powered Internal Card $ 76.06 $ 58.51 Control Module for Quickie S646, S646SE, S636, S626 Electric Wheelchairs | 910059 | Qtronix | Pilot $ 59.98 $ 38.98 The Jackbox Party Trilogy $ 89.28 $ 68.68 50 Watt 4,800lm Daylight IP65 Aluminium Grey Floodlight $ 15.98 FORNORM Hot Wired 1 piece Joypad Gamepads Shock Game Gamepad Joystick USB2.0 For Laptop PC Computer Win7/8/10/XP/Vista $ 59.12 $ 45.48 26" 36V 500W Front Wheel Electric Bicycle Kit $ 34.99 Strike Pack™ Dominator Xbox Series X|S® $ 73.20 $ 56.31 30 AWG insulated electronic hookup wire for console repairs & modifications - 50cm | ZedLabz $ 27.50 Cable Guys - Spyro The Dragon XL 12" Collectable Device Holder $ 90.10 $ 54.71 Wireless Controller For Microsoft Xbox One Computer PC Controller Controle Mando For Xbox One Slim Console Gamepad PC Joystick ＋ Home Wireless Game Controllers ＋ Bluetooth Gamepads Multi-Device Game Controllers Programmable Game Controllers ＋ Customizable Button Controllers PC-Compatible Game Controllers Accessories ＋ Controller Grips Button Replacement Kits Sensors ＋ Motion Control Sensors Joystick Precision Modules Lighting ＋ Controller LED Indicators Cart ＋ Your cart is currently empty. Total: VIEW CART
