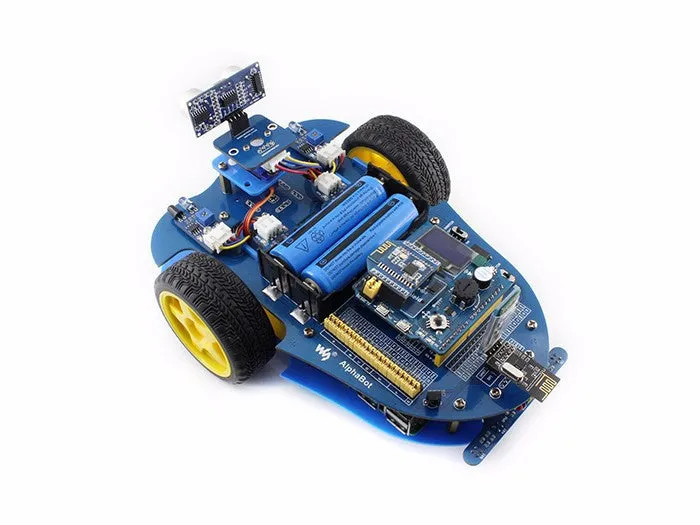

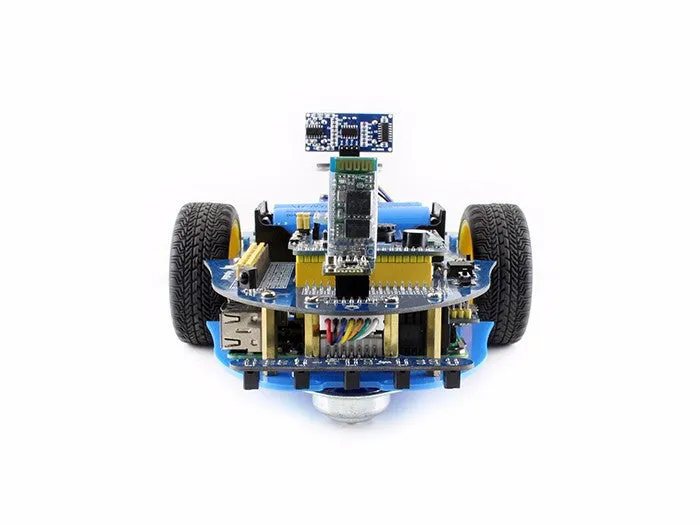

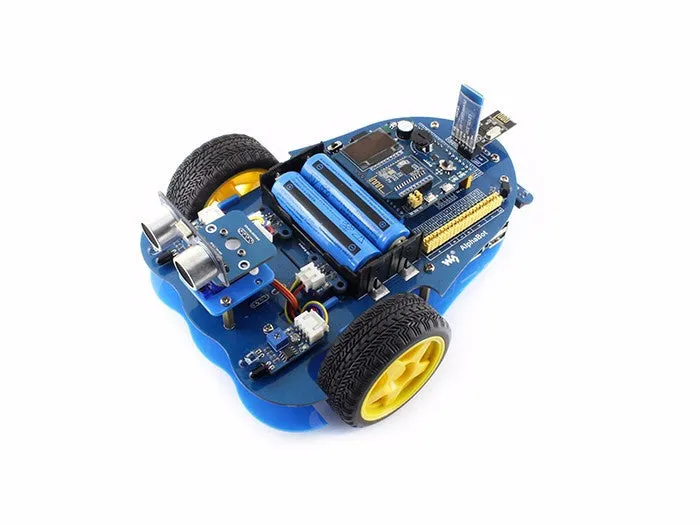

This kit comes with controller board UNO PLUS, AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), ultrasonic sensor, Bluetooth module, and a versatile Arduino accessory shield.

While utilizing UNO PLUS as controller board, this kit is based on the Arduino software/hardware open source platform. Combined with the modular design, it's an ideal platform to get started with Arduino robot.

UNO PLUS Features

UNO PLUS is a development board compatible with the Arduino UNO R3, an improved & enhanced alternative solution for Arduino UNO R3.

UNO PLUS Vs UNO R3：

AlphaBot Features

• Raspberry Pi/Arduino interfaces, works with either one separately, or both

• Arduino extend header, supports Arduino shields

• Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.

• LM298P motor driver with diode protection circuit, more safety

• LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino

• TLC1543 AD acquisition chip, allows the Pi to use analog sensors

Accessory Shield integrates common used accessories/components listed as follows :

• Joystick (5 directions)


• Adjustable potentiometer

• Buzzer

• RGB LED

• Temperature sensor

• 3-axis digital accelerometer

• High precision RTC

• 0.96inch OLED

• XBee interface

1. ATMEGA328P-AU

2. AMS1117-3.3 : 3.3V voltage regulator

3. NCP1117ST50T3G : 5V voltage regulator

4. FT232RL : USB to UART convertor

5. Arduino interface


• compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7

• solder pads provided, supports prototype breadboard

• ICSP interface

• MICRO USB connector : for uploading program OR serial port debugging

• Power output header : 3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards

• FT232 pins : for burning Bootloader into the microcontroller

• DC input : 7V ~ 12V

• Reset button

• Power indicator

• Serial port Rx/Tx indicator

• User LED

• Power configuration switch : for configuring the operating voltage

• Bootloader selection switch


• turn ON : the board will reset when power-up OR other USB devices were detected connecting to the PC

• turn OFF : the onboard program runs immediately when power-up, and the board will not reset when other USB devices were detected connecting to the PC

1. Raspberry Pi interface: for connecting Raspberry Pi

2. Arduino interface: for connecting Arduino

3. Motor interface

4. Ultrasonic module interface

5. Servo module interface

6. Obstacle avoidance module interface

7. Speed measuring interface

8. Battery holder: supports 18650 batteries

9. Reserved power input (not soldered): for connecting other external power supply

10. Arduino expansion header: for connecting Arduino shields

11. UART interface: for connecting Bluetooth module, to control the robot remotely via Bluetooth

12. SPI interface: for connecting NRF24L01 wireless module

13. Line tracking module interface

14. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors

15. LM298P: dual H bridge motor driver chip, up to 2A current

16. Anti-reverse diode

17. Power switch

18. LM2596: 5V regulator

19. Power indicator

20. UART switch: turn on to enable serial communication between Raspberry Pi and Arduino

21. IR receiver: control the robot remotely via infrared

22. Raspberry Pi/Arduino selection: select the Raspberry Pi or Arduino to control the robot peripherals

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

Package Contents		Products
Item	Description	AlphaBot	AlphaBot-Ar-Basic	AlphaBot-Ar-Bluetooth	AlphaBot-Pi Acc Pack	AlphaBot-Pi
RPi3 B	Raspberry Pi 3 Model B					√
UNO PLUS	enhanced control board, Arduino compliant		√	√
AlphaBot chassis kit	mainboard, wheels, drivers, etc.	√	√	√	√	√
Tracker Sensor	line tracking module	√	√	√	√	√
Photo Interrupter Sensor	speed measuring module (2pcs)	√	√	√	√	√
Infrared Proximity Sensor	obstacle avoidance module (2pcs)	√	√	√	√	√
IR remote controller	remotely control the robot	√	√	√	√	√
SG90	servo		√	√	√	√
Ultrasonic sensor	ultrasonic obstacle avoidance, distance measuring		√	√	AlphaBot, Bluetooth robot building kit for Arduino Title: Localstock Overseasstock $ 57.56 $ 44.28 Please select combo product attributes The combo subtotal is $,SAVE$ Unavailable Add to Cart Buy It Now You May Also Like $ 35.70 $ 21.68 DATA FROG USB Wired Gamepad for Xbox 360 /Slim Controller for Windows 7/8/10 Microsoft PC Controller Support for Steam Game $ 87.95 $ 67.65 11kg Flywheel Spin Bike, LCD Console, Belt Drive - Proflex $ 60.15 $ 46.27 Gamecube Thumbstick Replacements $ 80.52 $ 61.94 Billet Fuel Pump Speed Controller ARO16306 $ 67.68 $ 52.06 ATEN 4 x 4 USB 3.1 Gen 1 Industrial Hub Switch $ 27.50 Cable Guys - Spyro The Dragon XL 12" Collectable Device Holder $ 18.12 PS4 Vertical Stand w/ Cooling Fan Charger Multi functional PlayStation 4 $ 79.27 $ 60.98 Sony PS3 DualShock 3 Game Controller (Standard Edition) - Brand New $ 89.95 $ 69.19 Medic Grow Smart-8 Full Spectrum LED Grow Light - 760w, High PPFD, Tunable Spectrum,Built-in Timer, Sunrise / Sunset, Onboard Dimming, AC 110-277V $ 52.69 $ 40.53 Makeblock mBot2 ＋ Home Wireless Game Controllers ＋ Bluetooth Gamepads Multi-Device Game Controllers Programmable Game Controllers ＋ Customizable Button Controllers PC-Compatible Game Controllers Accessories ＋ Controller Grips Button Replacement Kits Sensors ＋ Motion Control Sensors Joystick Precision Modules Lighting ＋ Controller LED Indicators Cart ＋ Your cart is currently empty. Total: VIEW CART
