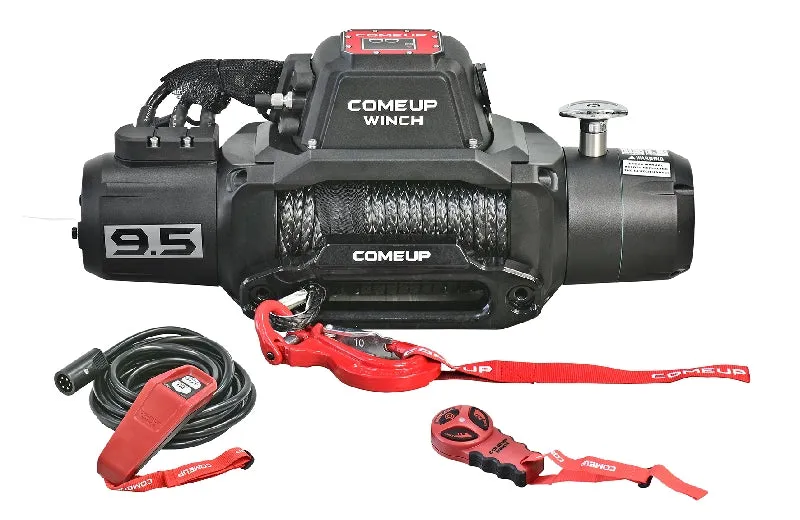

Get ComeUp's new Solo Series Winch!

Description:

• 12V DC severe duty winch rated at 9,500 lb pulling meets and exceeds your expectations.
• Heavy duty series wound motor equipped with thermal protection switch alters.
• Trendy design on winch body with a new stylish control pack dedicated to providing an excellent winching experience.

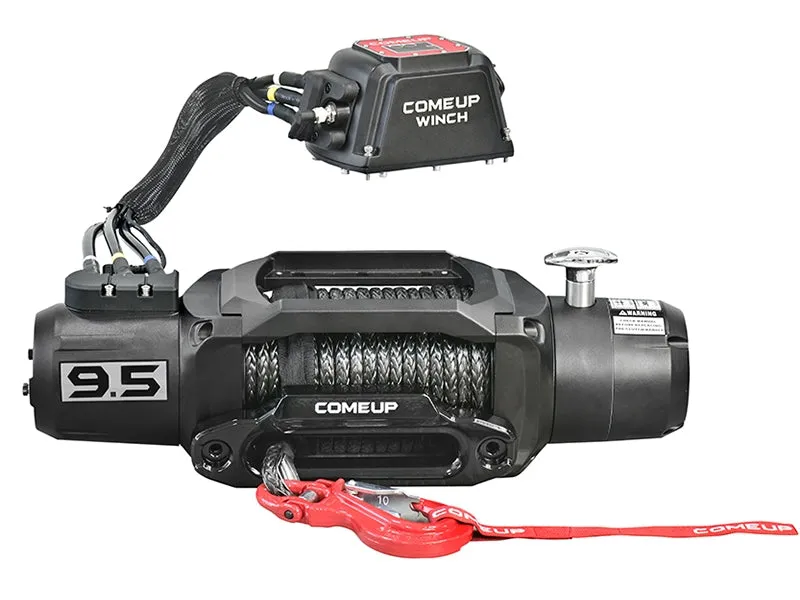

• The convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.

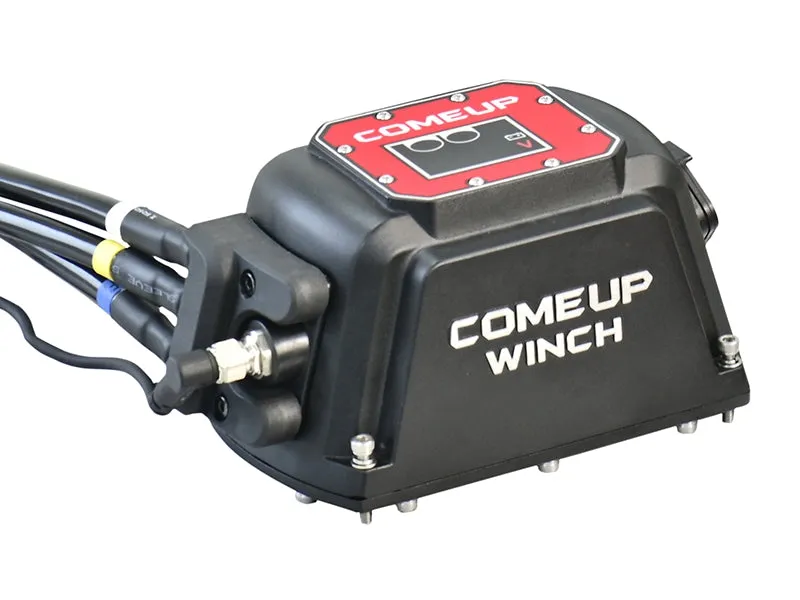

• Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
• Newly designed wireless and wired controllers offer better holding and reliable operation.
• The wired controller has a magnet design, allowing it to be put on idle vehicle body.
• Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
• 12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.
• The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
• Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
• Built-in radio control module includes functions:
  - On/off switch prevents the vehicle battery from draining when no use
  - Motor over-heating warning by LED indicators and beeper

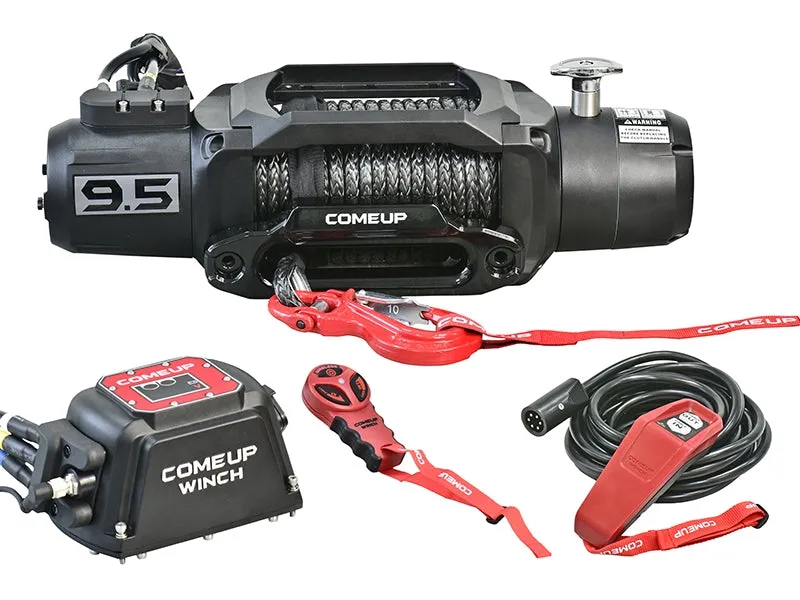

Includes:

• Hawse fairlead
• Built-in wireless remote control modules
• Remote control w/5 m (17’) cord
• Bridge control box
• Synthetic rope w/sling hook
• 1.8 m (6’) 2 gauge battery lead
• Handsaver strap

Specifications:

• Part number: PN 291200 (12V)
• Rated line pull: 4,309 kg / 9,500 lb single line
• Line speed (1^st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load
                                        2.2 mpm / 7.2 fpm 380 A at 12V full load
• Motor: 3,730 w / 5.0 hp 12V series wound
• Gear ratio: 3-stage planetary 159:1

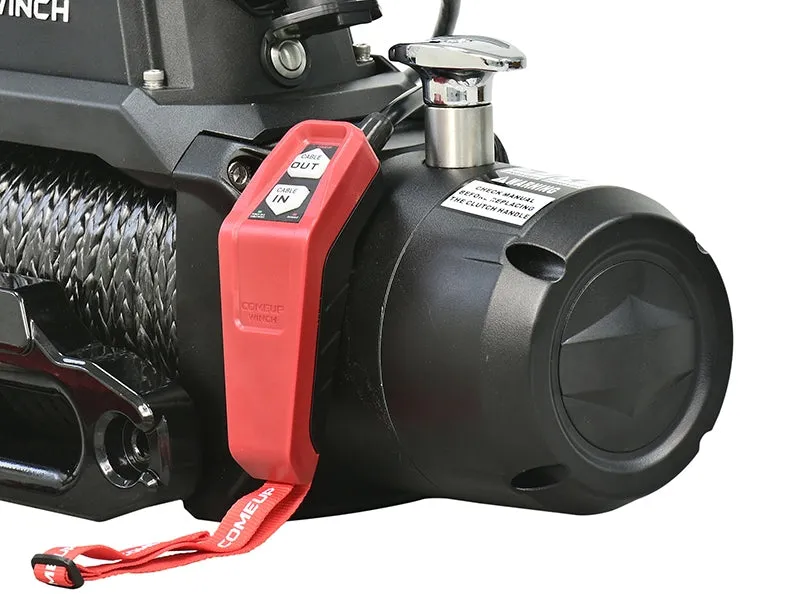

• Clutch (freespooling): Rotating ring gear
• Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
• Winch construction: Aluminum die cast housings with steel drum
• Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
• Control: Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
• Rope type: Synthetic rope
• Rope size: 10 mm x 30.5 m (3/8” x 100’)
• Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
• Mounting : Foot forward or foot down mounting workable
• Finish : Matte black powder-coated
