Product Details
＋
DH-ASR1101M

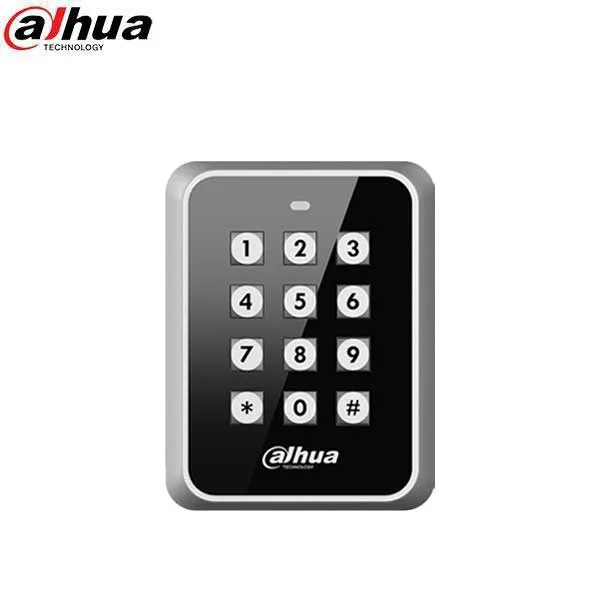

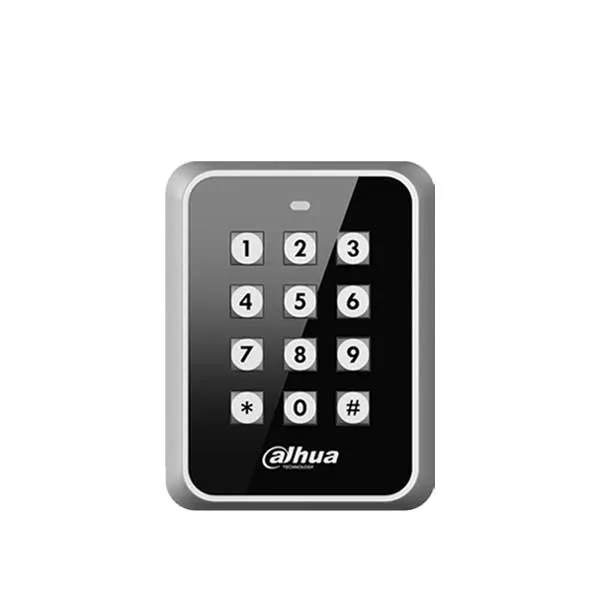

This is the Dahua Card Reader with metal keypad and 13.56 MHz RFID. it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.
Features
- Wiegand 34 or RS485 Protocol
- MIFARE 13.56 MHz Card
- Watch Dog Function for Tamper Detection
- Metal Keypad Buttons with Blue Backlight
- Audible and Visual Indicators
- Surface-mount Installation
Specifications
| System | |
| Main Processor | 8-bit |
| LCD Display | Red and Green LED Indicators, Blue Backlight |
| Audible Indicator | Buzzer |
| Reader | |
| Format | 13.56 MHz MIFARE |
| Distance | 2.36 in. to 3.15 in. maximum |
| Response Time | < 0.1 s |
| Keypad | Metal Button Keypad 12 Keys (1 to 9, *, #), Key 5 has Braille Markings |
| Interface | |
| To Controller | Wiegand 34, RS485 |
| Electrical | |
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Construction | |
| Color | Black |
| Dimensions | 4.33 in. x 3.35 in. x 1.02 in. |
| Vandal Resistance | IK08 |
| Certifications | EN UL FCC CAN/CSA |
