SPECIFICATIONS

100% brand new and high quality.

Material:plastic and metal

Type:Pir Switch.

Easy to install and simple to use.

Adjust the light soft and stable, no flickering.

Mainly use to control LED light lamps and LED Strip.

You can conveniently to let the light auto on/off .The switch can detect human body's infrared , and use infrared to control the load.

Users according to actual needs, the human body sensors installed in the appropriate environment.

Applications:Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads



Specifications:



Induction distance: 5 ~ 8 M

Induction angle: 120 degrees

Working temperature: -20-60 °

Input: 12-24V

Output current: 8A

Static power consumption: <1W

Output power: 12V: <96W, 24V: <192 W

Delay Time: 60-120 ms

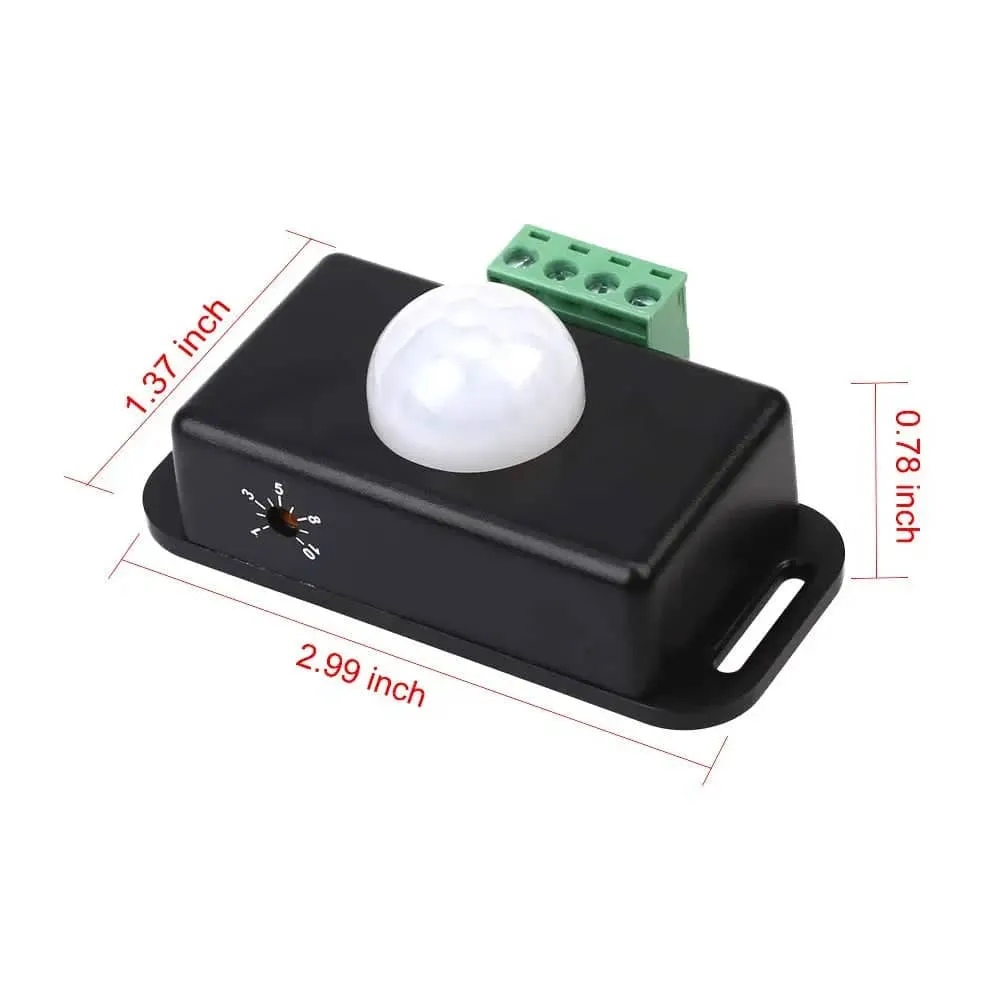

Dimensions: 76x45x35 mm(LxWxH)

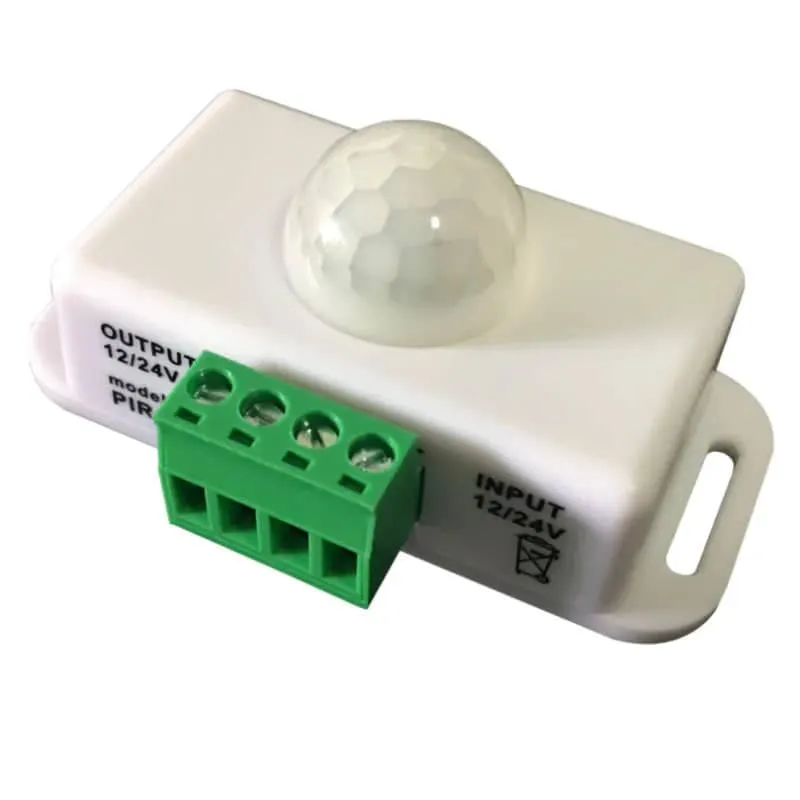

Color: Black/White
