• An ITA screen and glass lens all in one piece.
• Adjust brightness with touch sensor or button inputs.
• Applicable console text is present on lens. Silver text.

• Long touch the touch sensor for OSD menu.

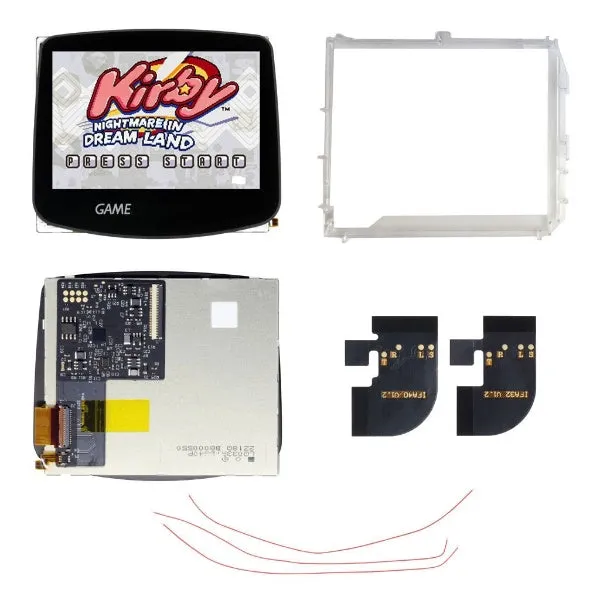

INCLUDED:

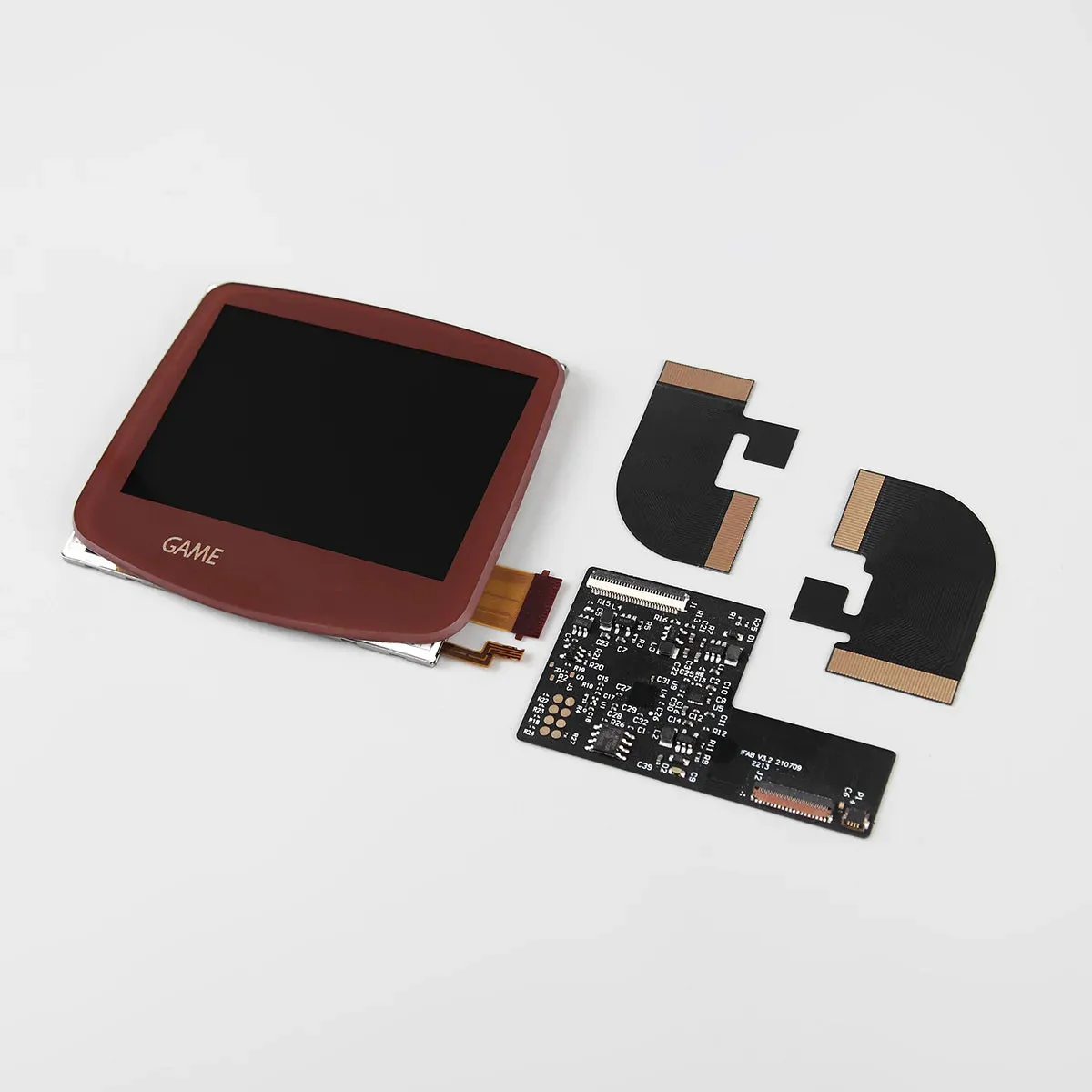

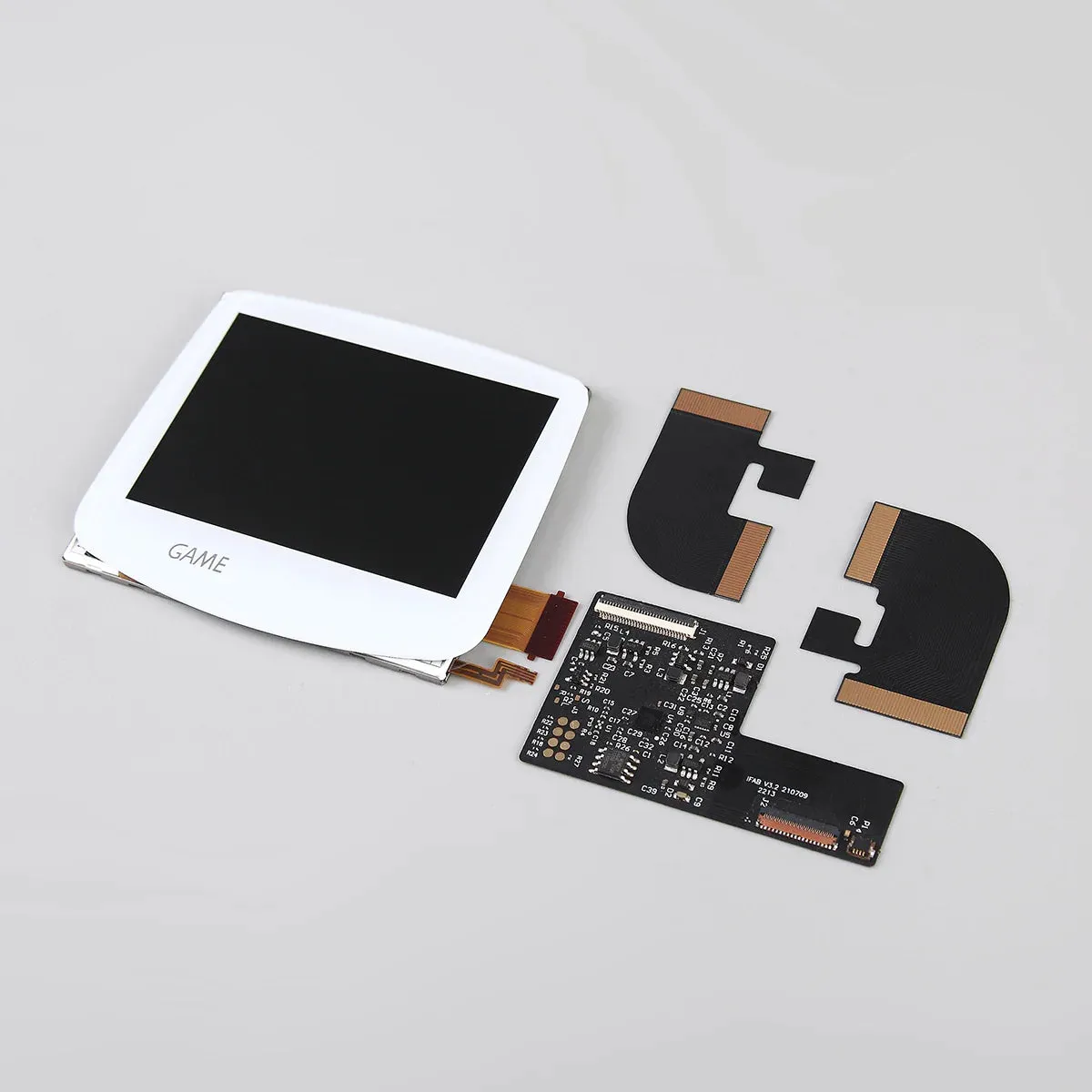

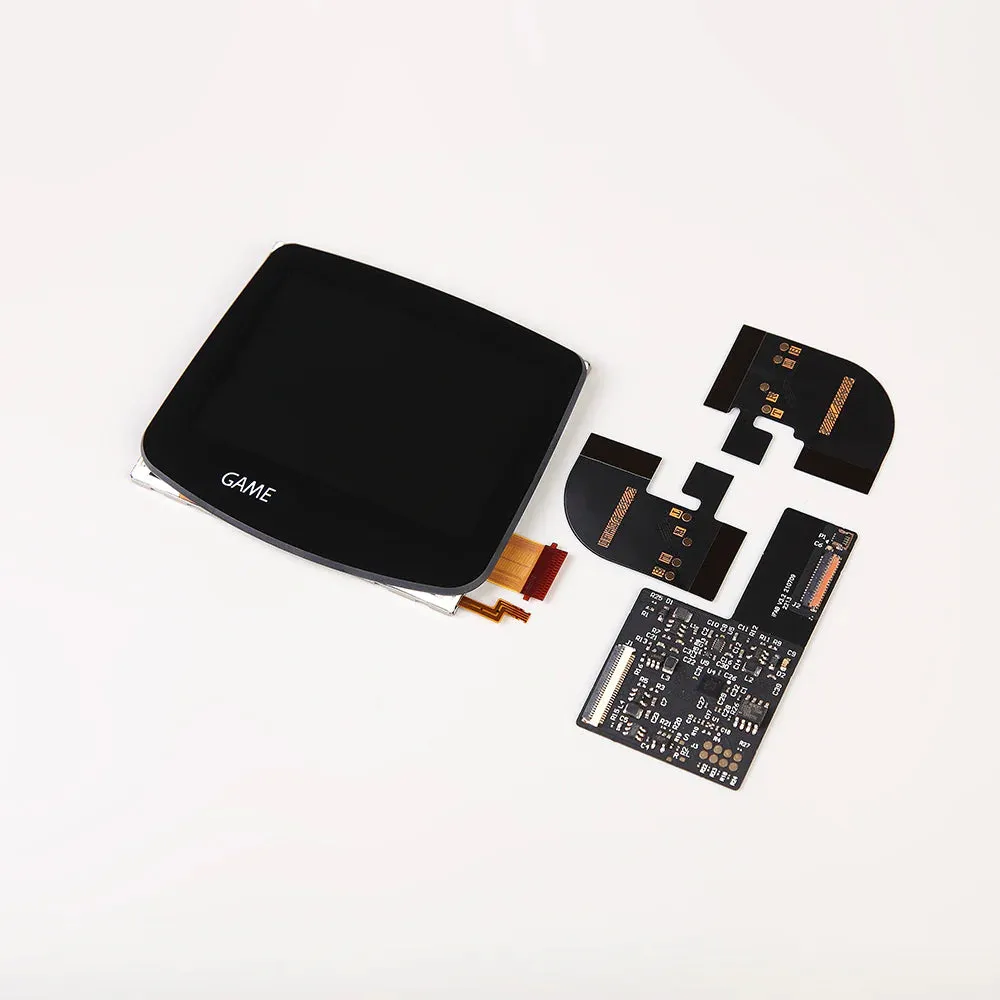

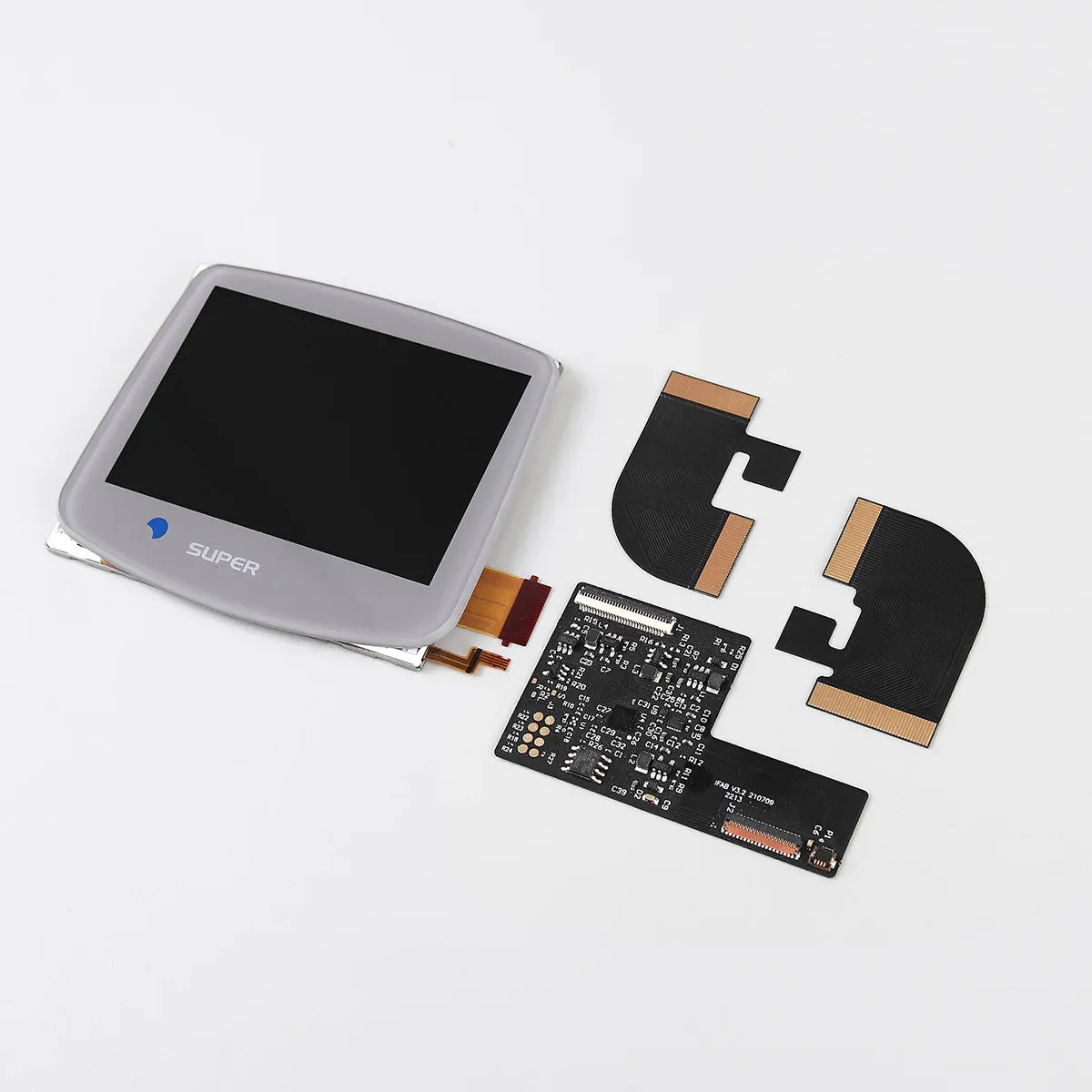

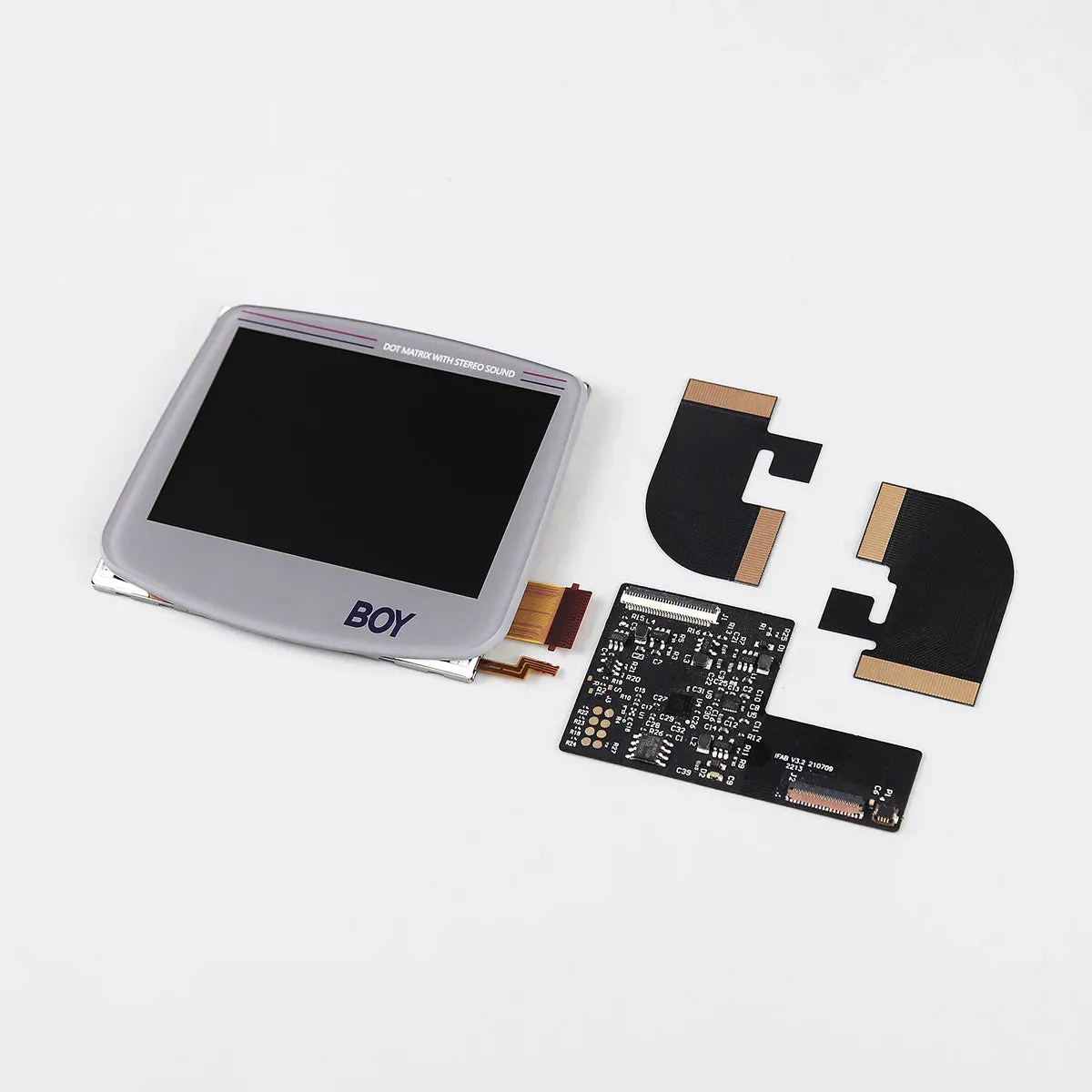

• 1 x ITA LCD with lens adhered (see warnings) and PCB ribbon cable attached

• 1 x 32 pin ribbon with touch sensor
• 1 x 40 pin ribbon with touch sensor
• 3 x Wires
• 1 x Bracket

PAIRS WELL WITH:

• (ONLY pairs with this shell)

DOCUMENTATION:

NOTES:

• Only pairs with the . Other other shells require extensive trimming. Refunds/replacements are not accepted if the incorrect shell is used.

• If you received a bracket that looks different from the one in the product photo, you may have received the wrong bracket. Please . If this is not completed and the LCD kit is damaged, refunds will not be accepted.
• Port on ribbon cable may be in different direction depending on variant. Please see install guide (not video) for further instructions.
• 40-pin Consoles need to remove the C54 capacitor.
• Long press touch sensor (two seconds) to enter OSD menu or hold Select, L, and R if you have soldered those wires. Enter the menu and press and hold for one second to switch the selection.
• To use the screen adjustment in the OSD menu, you will need to solder the Select, L, and R wires.
• After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please  for assistance.

WARNINGS:

• You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
• Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.

• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
