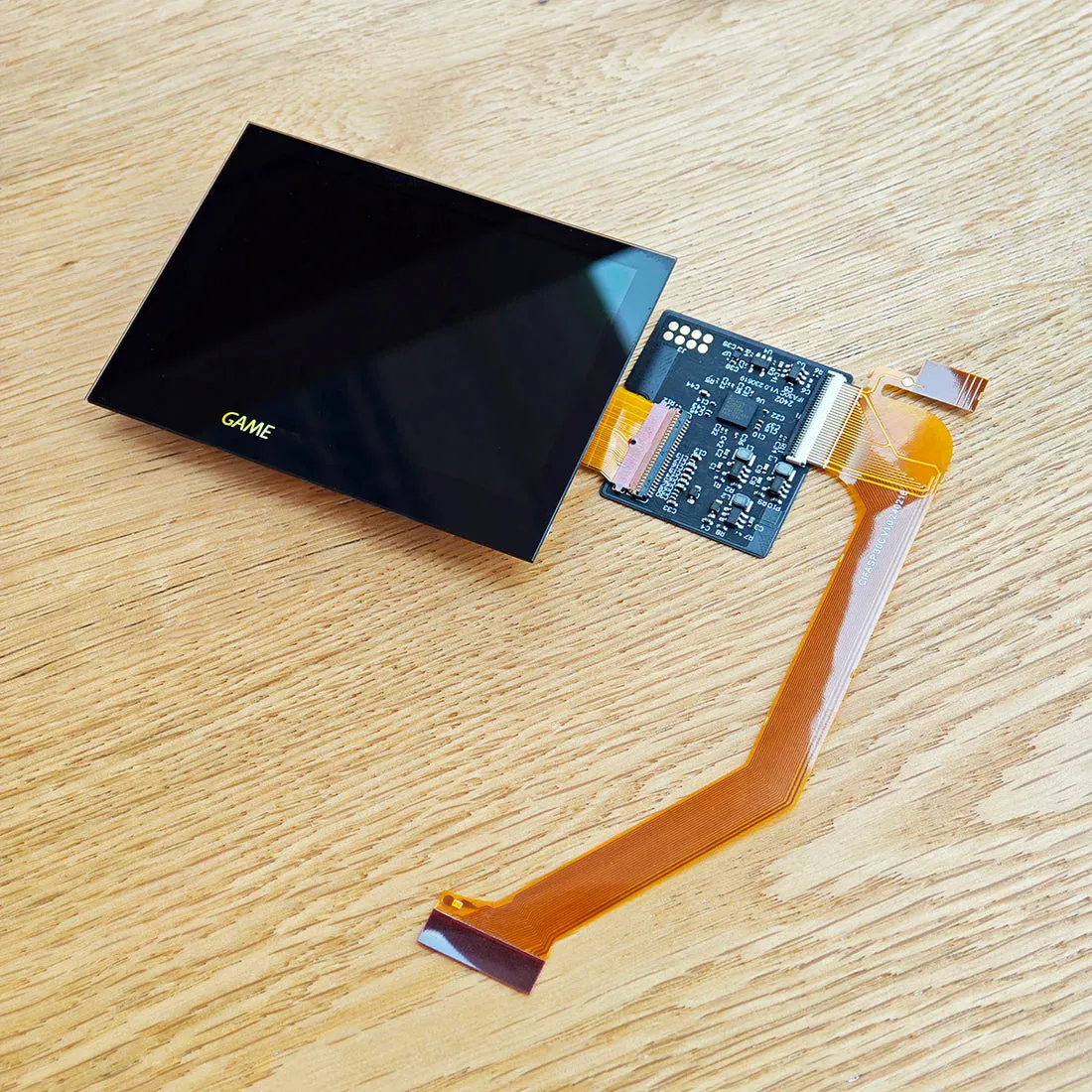

• 1x 3.0 Laminated IPS M2 LCD with adhered lens (See Warnings)
• 1x PCB
• 1x Ribbon with touch sensor attached

• 1x Wire


PAIRS WELL WITH:

DOCUMENTATION:

• - *FunnyPlaying did not include the bracket needed to help install this kit into their Mirror Clear ITA/IPS modified shells. If you are using the FunnyPlaying Mirror Clear shell, you can

NOTES:

To use the brightness button for OSD menu:

• Long hold (3 to 5 seconds) the brightness button to open the OSD
• Press the button once to change the currently highlighted option
• Long hold the brightness button again to switch highlighted options
• To close the OSD simply don't press the brightness button for 5 seconds

To use the touch sensor for OSD menu and brightness:

• Short press (one to two seconds) adjusts brightness levels without entering OSD menu. Long press (3 to 5 seconds) will open OSD menu.
• Long press again to change menu selection.
• Tap/short press to adjust selection in menu.
• To close the OSD simply don't press/tap the sensor for 5 seconds.


WARNINGS:

• You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
• Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
