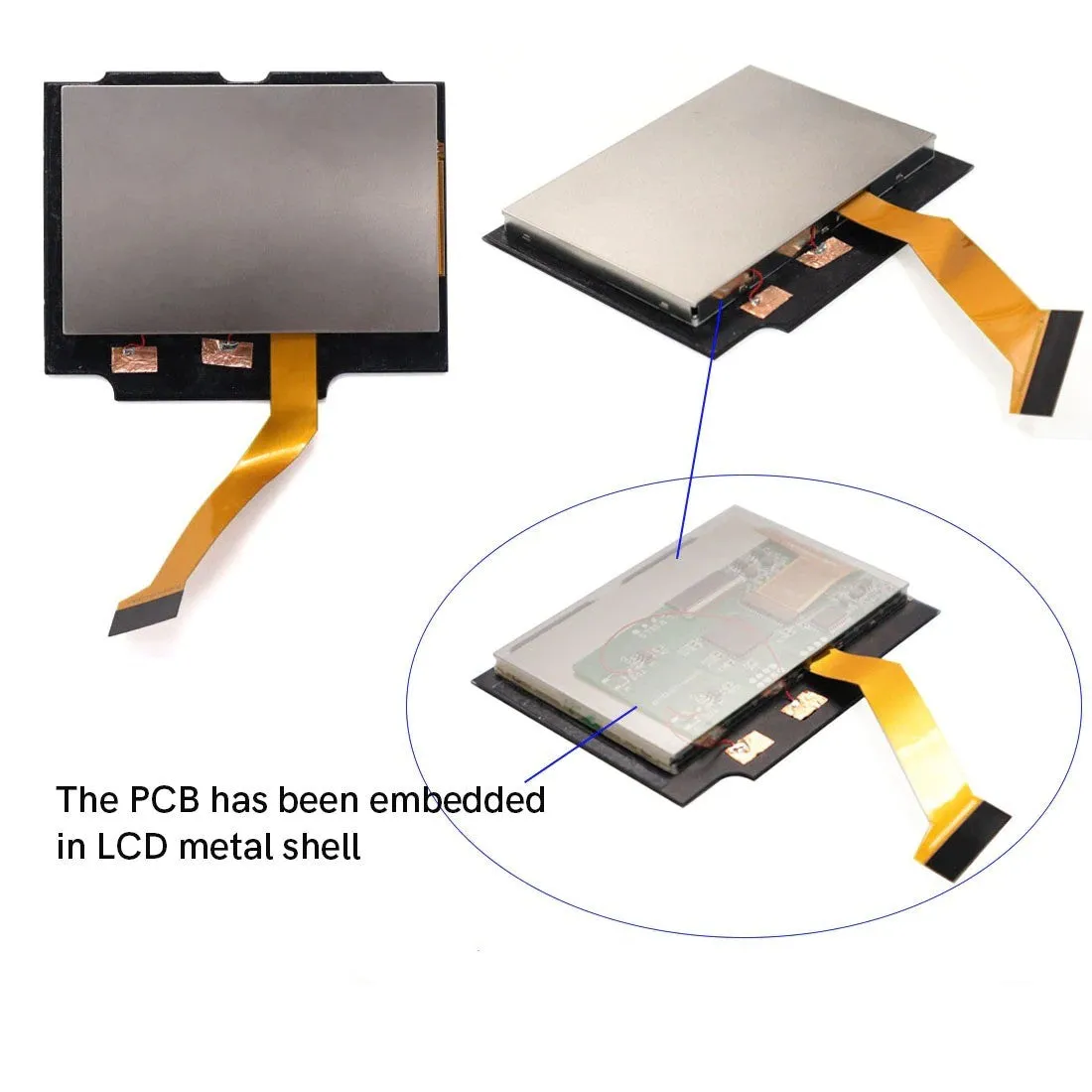

This LCD upgrade for GBA SP features a pre laminated and connected PCB into the lens shell, as well as brightness levels and pixel effects.

FEATURES:

• 720x480 display resolution.
• Wide view angle.
• V5 Pre-laminated glass screen lens and PCB board.

• Display size is same as original LCD.
• Only one wire to solder for OSD menu functionality.

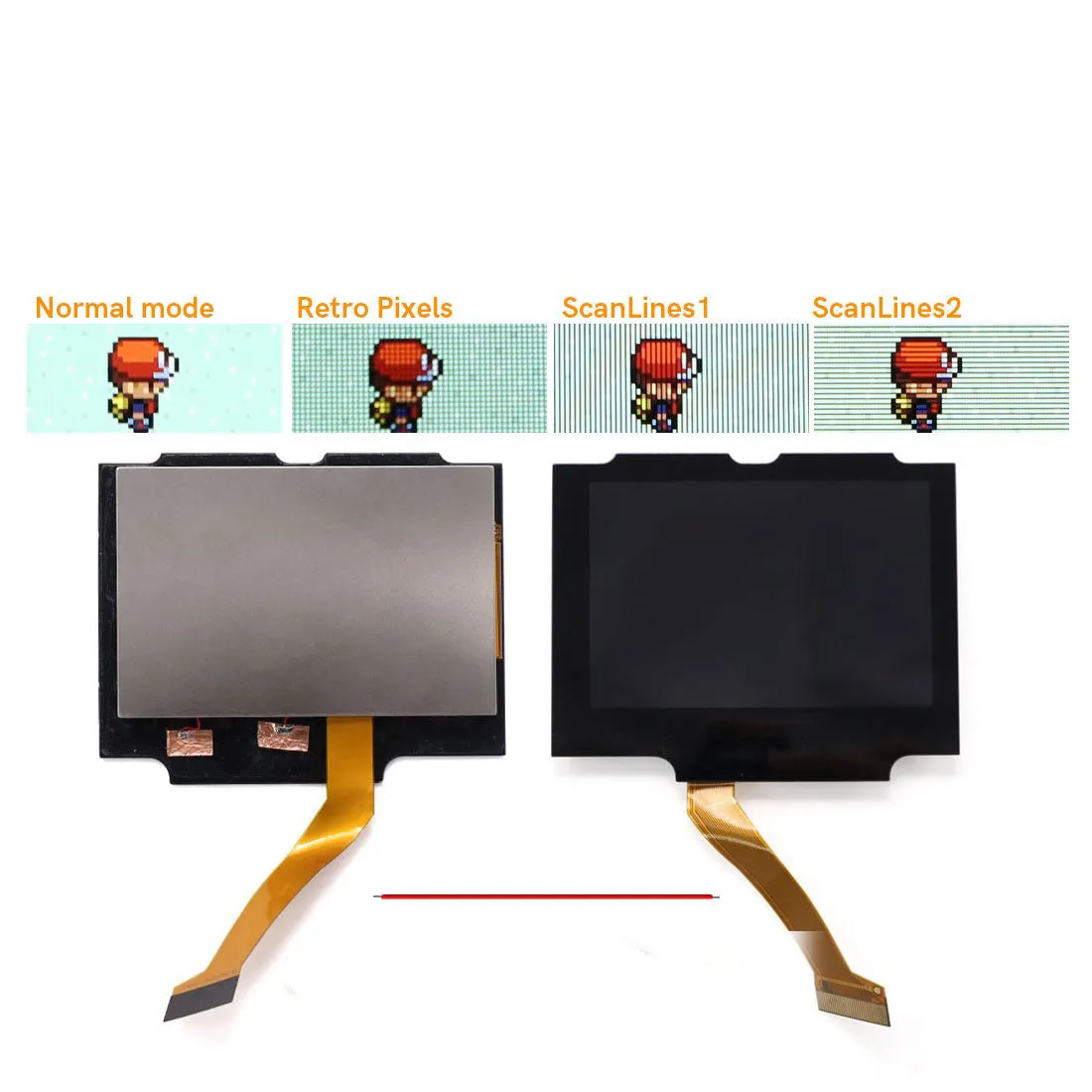

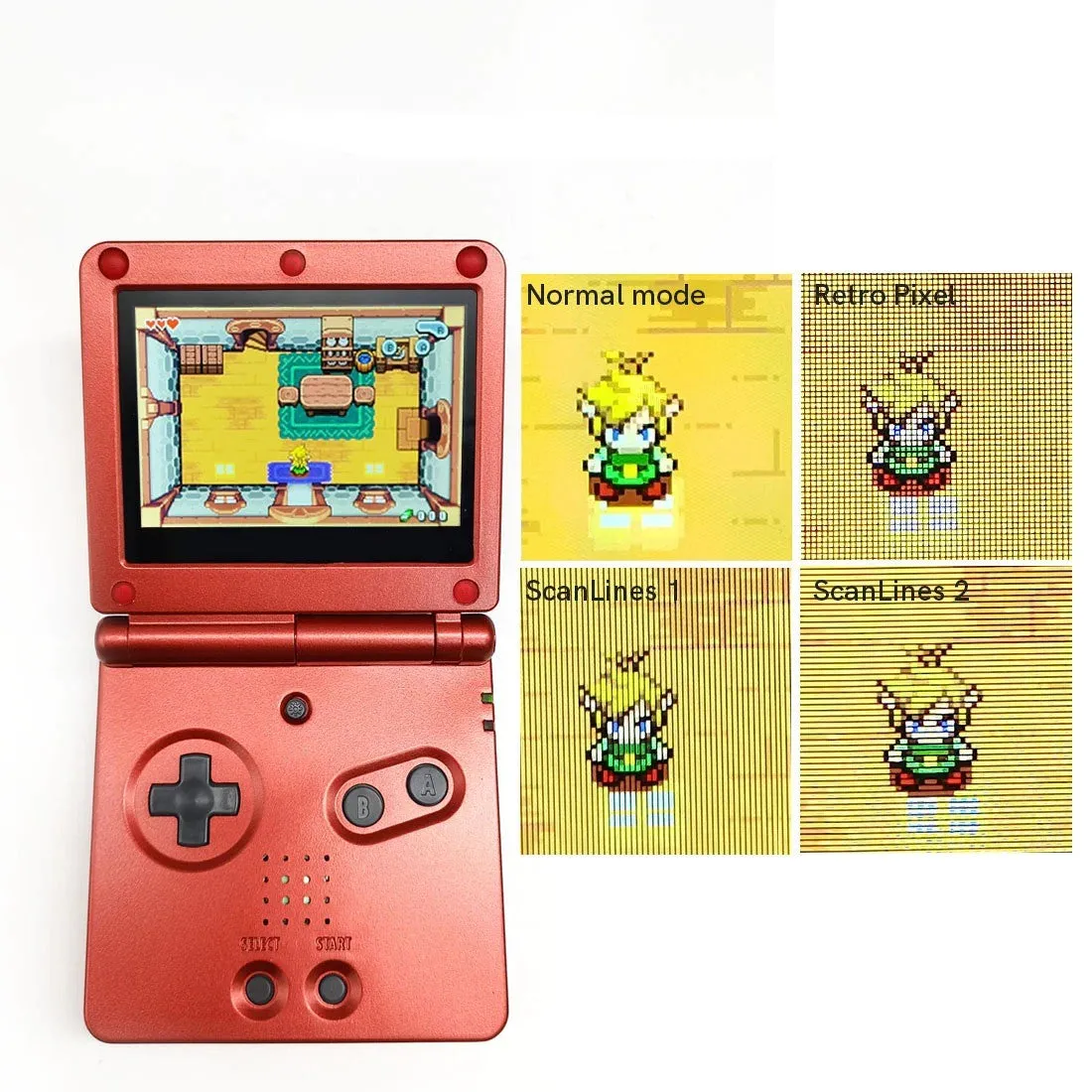

• 4 retro pixel effects.
• 15 Brightness levels.

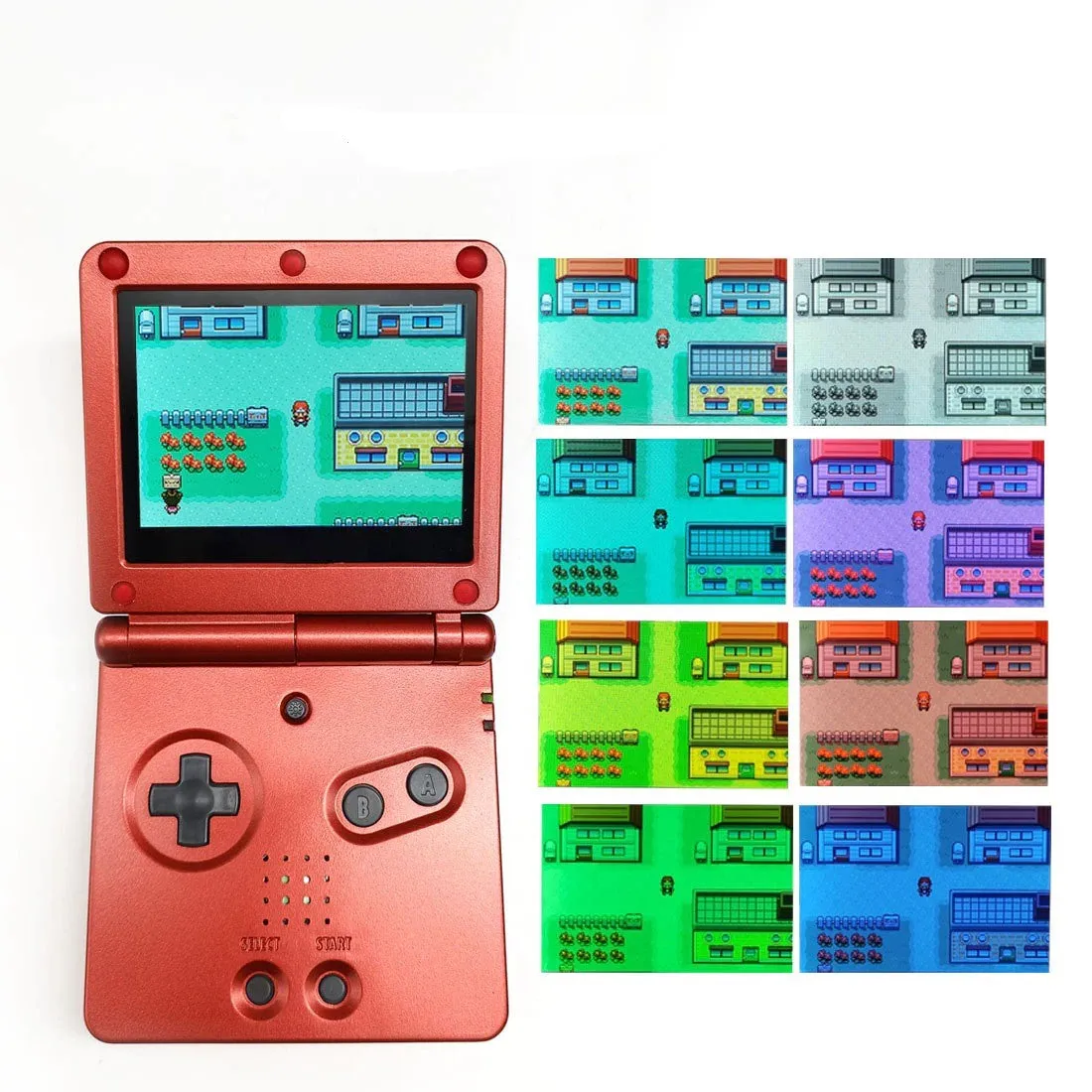

• 8 Color modes.
• Frame Blending option through OSD menu.
• Touch pad functionality for brightness and color adjustments.
• Ribbon now has two points to solder to for the brightness wire. Both work, an extra is included as a backup.
• Soldering 1 wire is optional for button activated OSD/brightness.
• Shell modification not required.


INCLUDED:

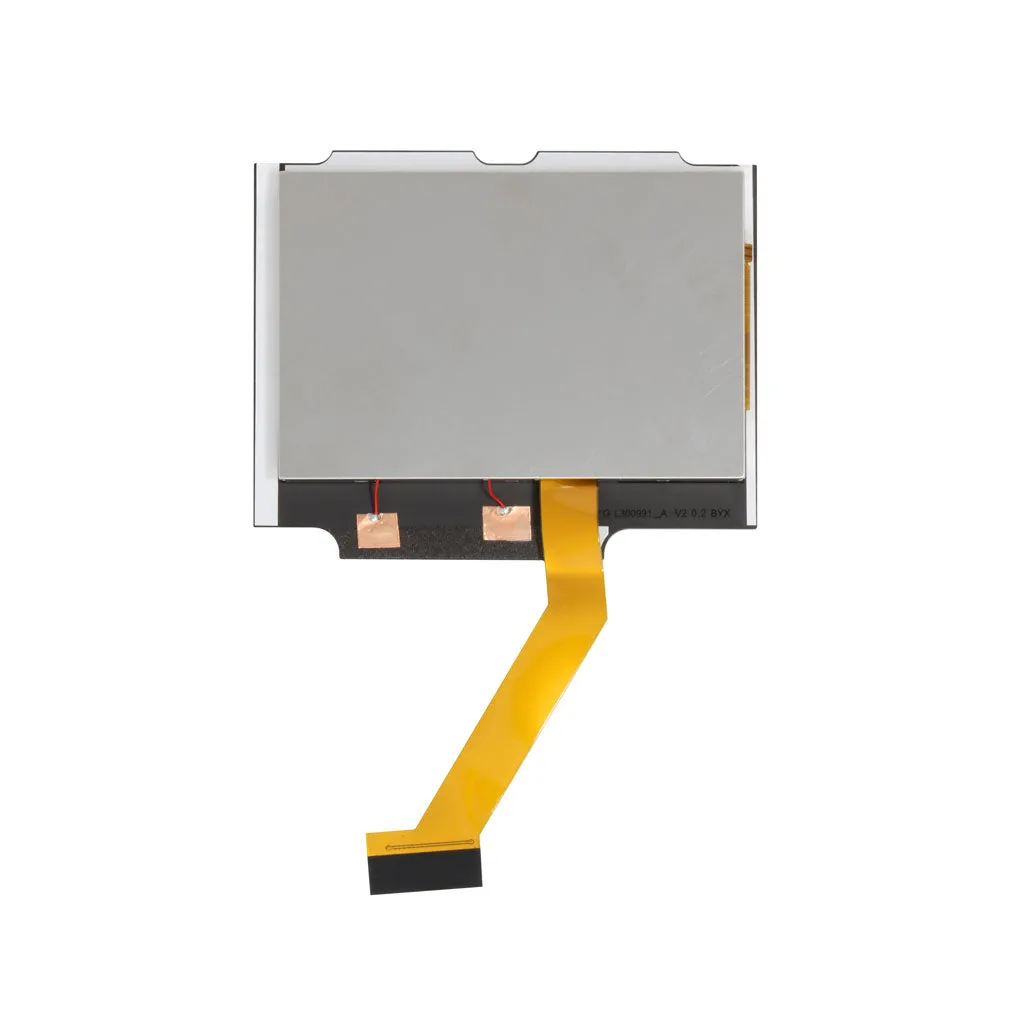

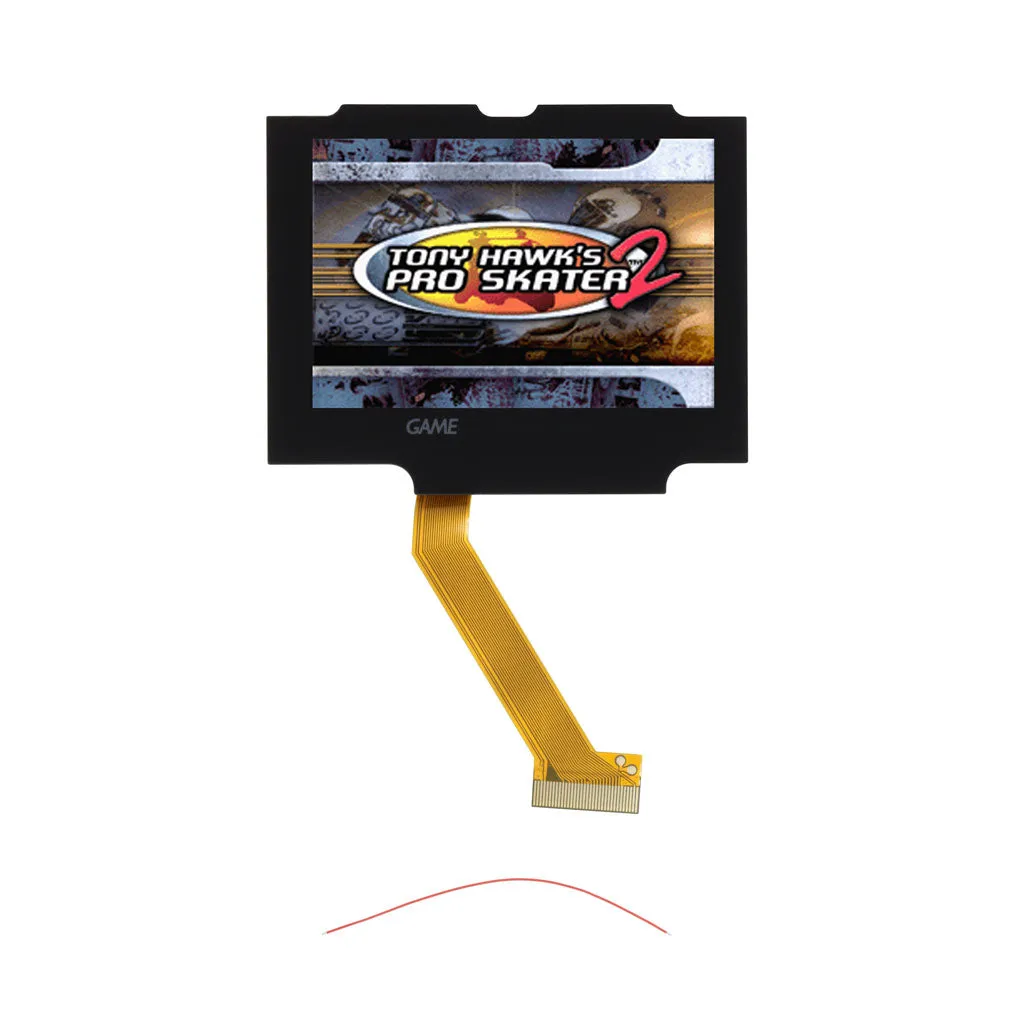

• 1x LCD with adhered lens and attached PCB ribbon cable
• 1x Wire

DOCUMENATION:

NOTES:

• After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please  for assistance.

Touch sensor use:

• After fully installed, press and hold down the left touch pad to cycle the color modes.
• Press and hold down the right touch pad to cycle pixel effects.
• Tap the right touch pad to cycle brightness.

If you soldered the brightness wire (Optional):

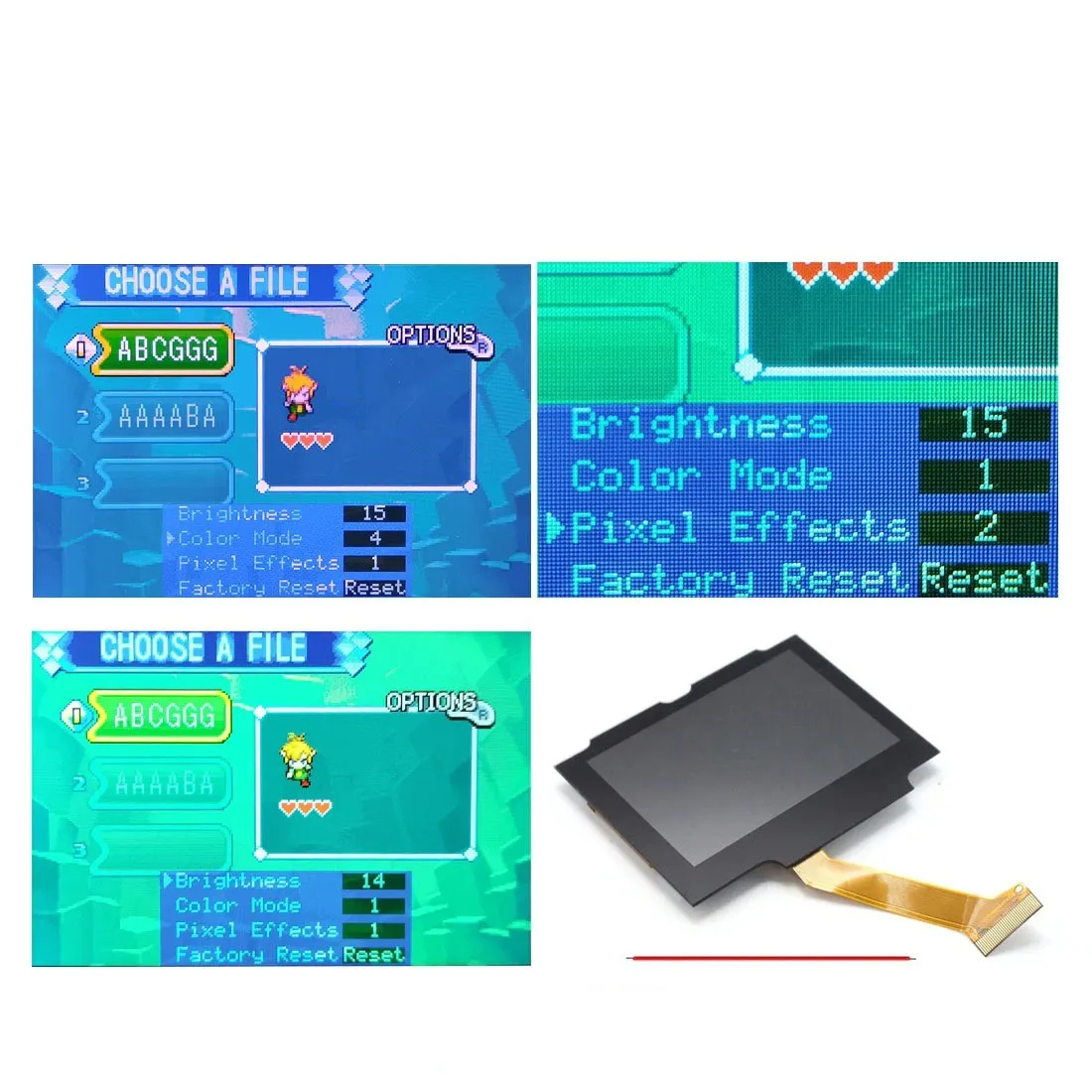

• Hold the brightness button down for 5 seconds to activate the OSD menu.
• Long press the button while in the menu to select the adjustment item. (Brightness, Color, Pixel)
• Quick press the button to adjust the selection.

WARNINGS:

• You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely an included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
• Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
