• Doesn't Require Soldering or Shell Trimming.
• Same display size as the original screen.
• 9 to 1 pixel Integer Scaling.
• Built-in OSD Menu.

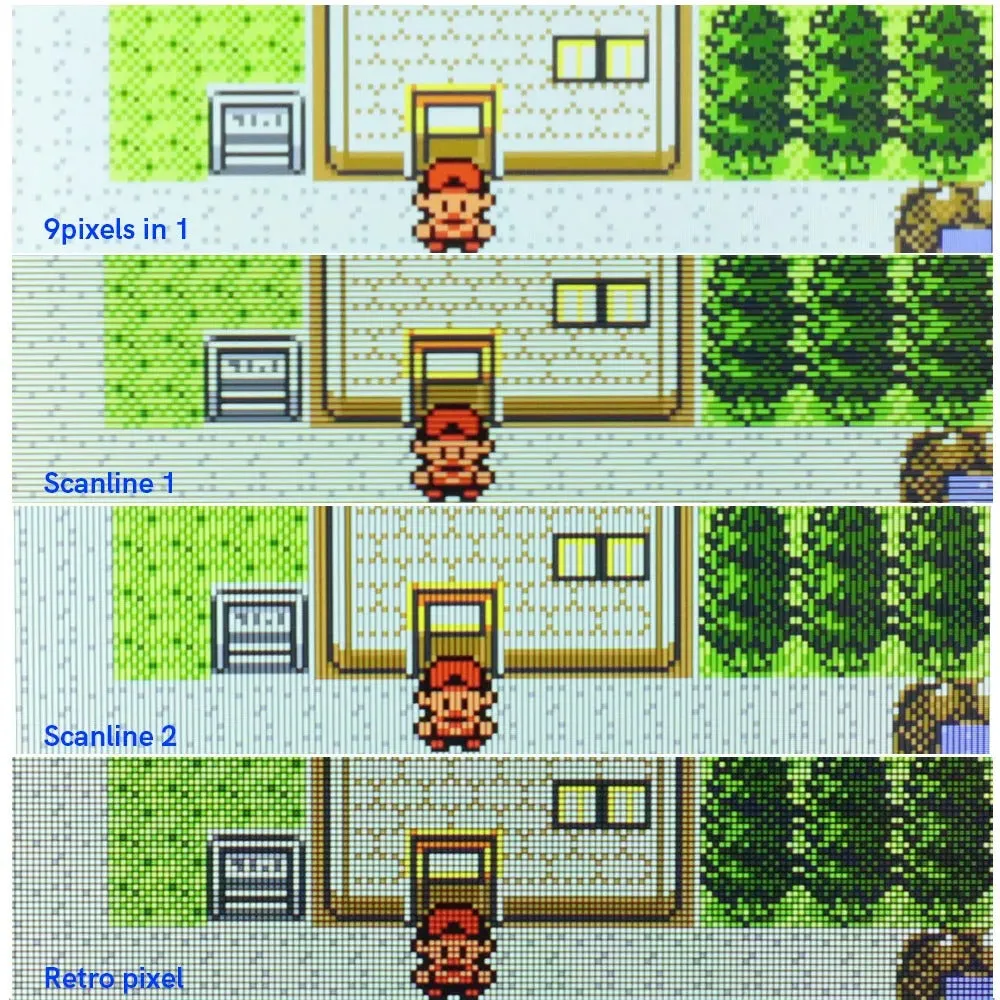

• Retro pixel Effects
• 15 brightness levels.

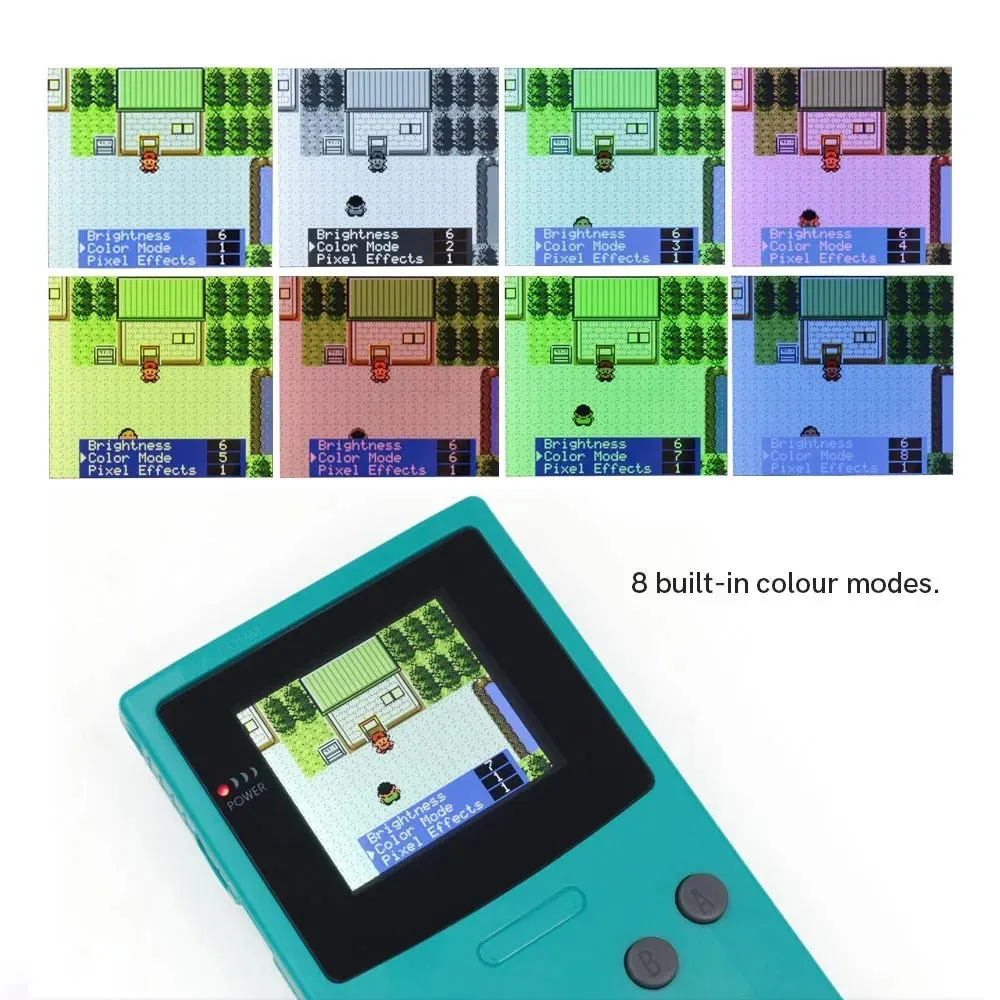

• 8 color modes.

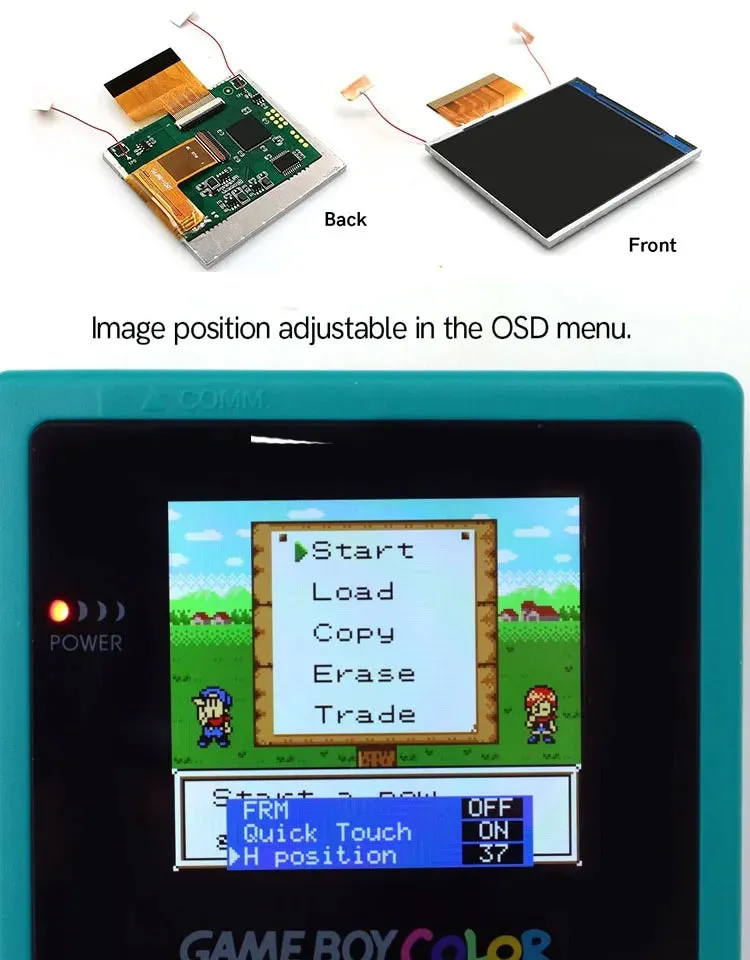

• Image position adjustable in the OSD menu.

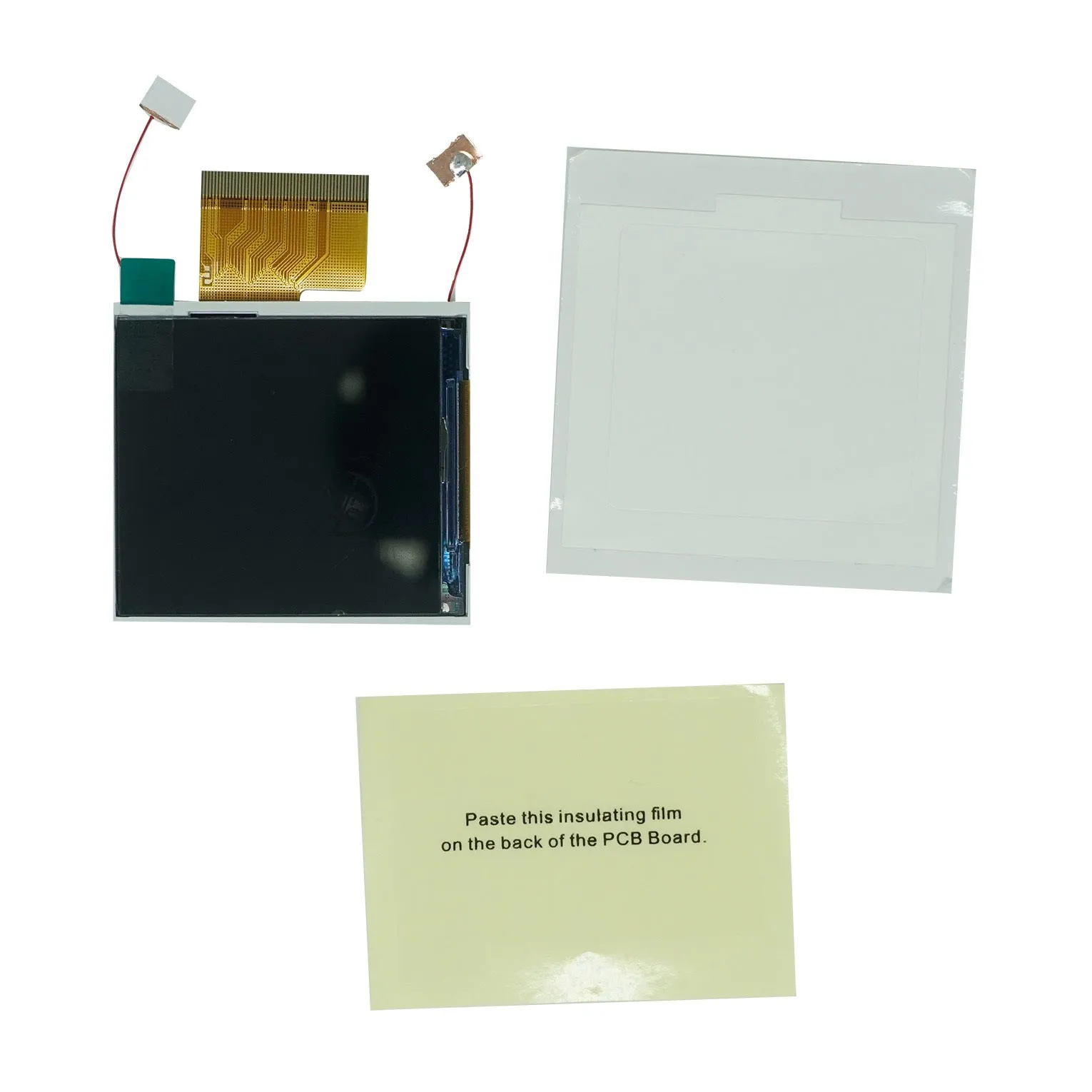

INCLUDED:

• 1x LCD
• 1x PCB with touch sensors
• 1x Ribbon

• 3x Wires
• 1x Insulation Film
• 1x Adhesive

PAIRS WELL WITH:

DOCUMENTATION

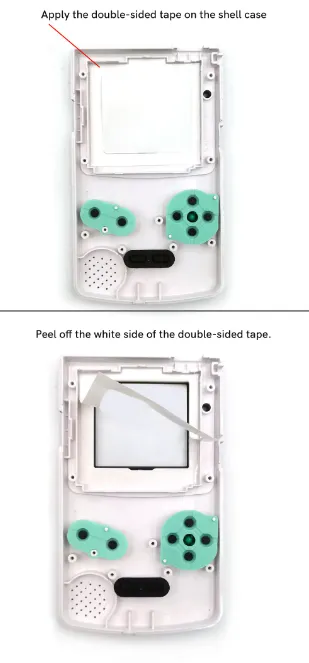

• See product photos for install information.

NOTES:

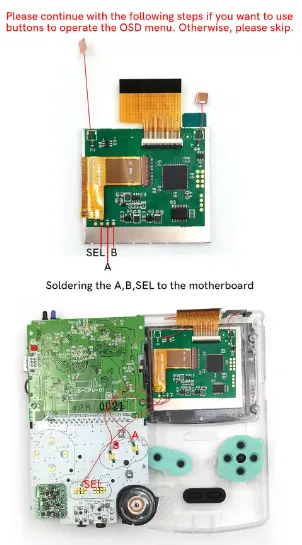

• OSD can be operated with touch sensors (no soldering required) or button presses (requires soldering).

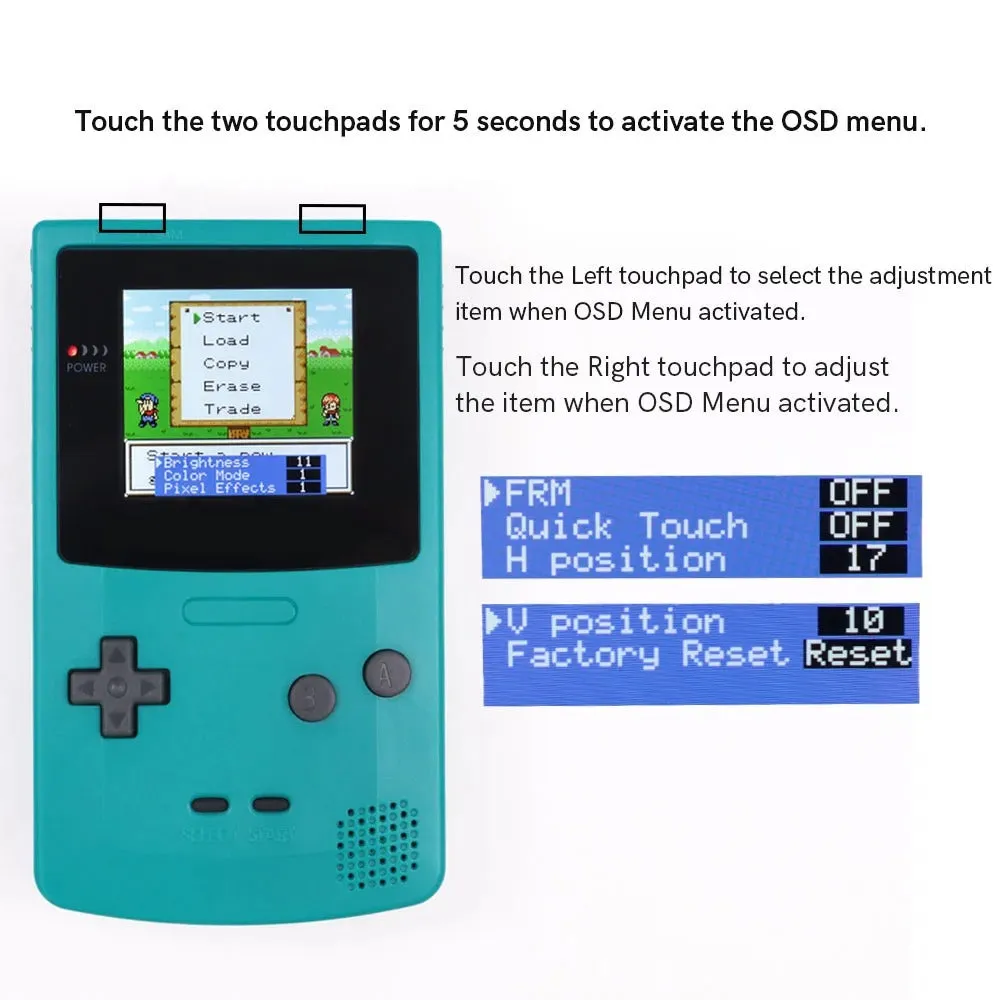

• Touch the two touchpads for 5 seconds to active the OSD menu.
• Touch the left touchpad to select an option when OSD Menu activated.
• Touch the right touchpad to adjust the option when OSD Menu activated.

WARNINGS:

• Test before installation! When you receive a backlight/LCD kit, you should  to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.

• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
