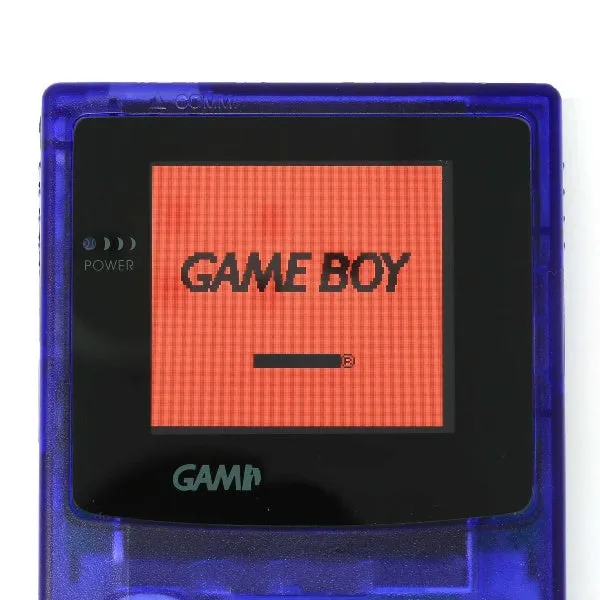

• Same display area as the original.

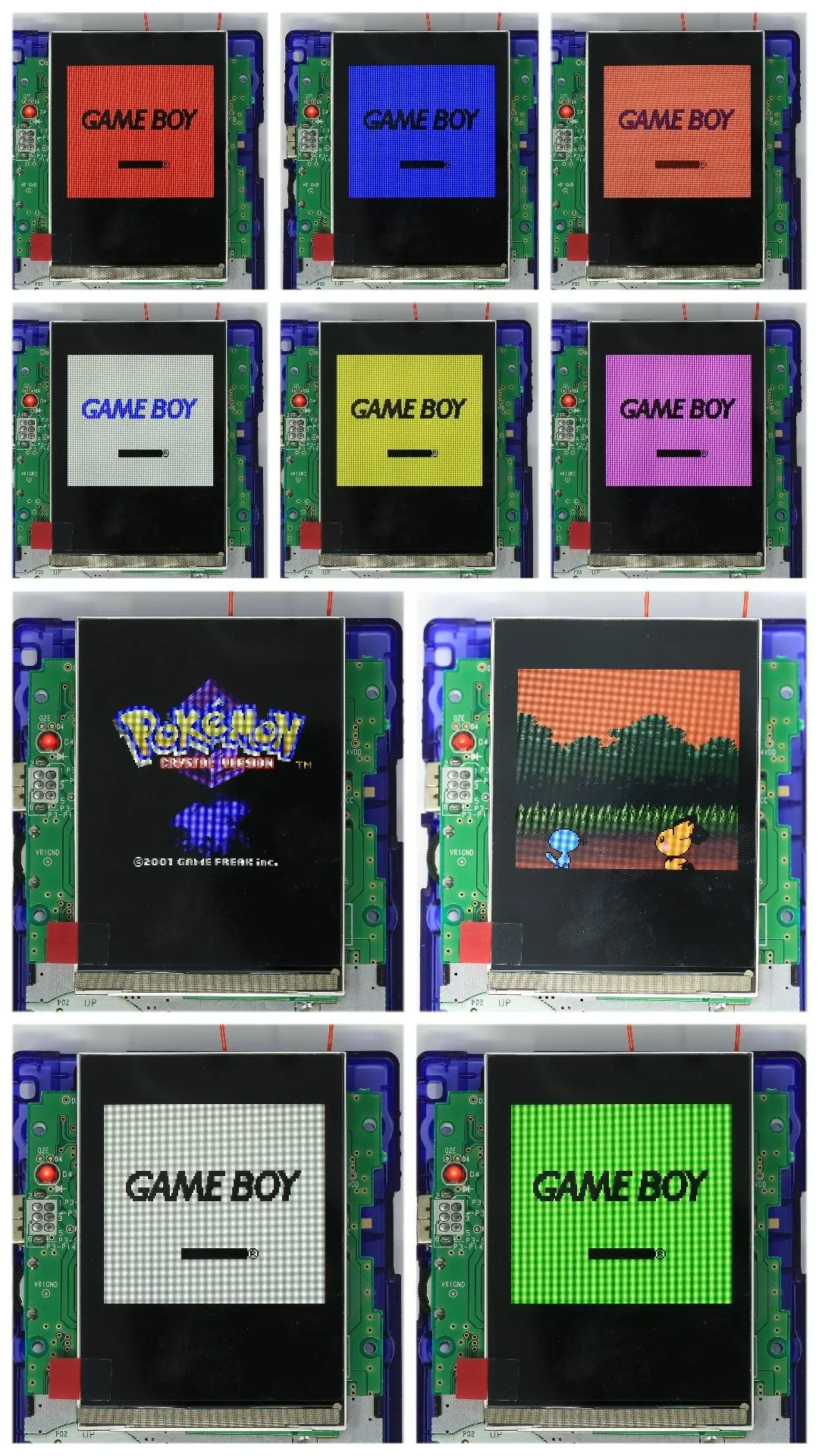

• 8 "color palette" options VIA touch sensor already soldered to PCB.
• 10 brightness levels VIA touch sensor already soldered to PCB.

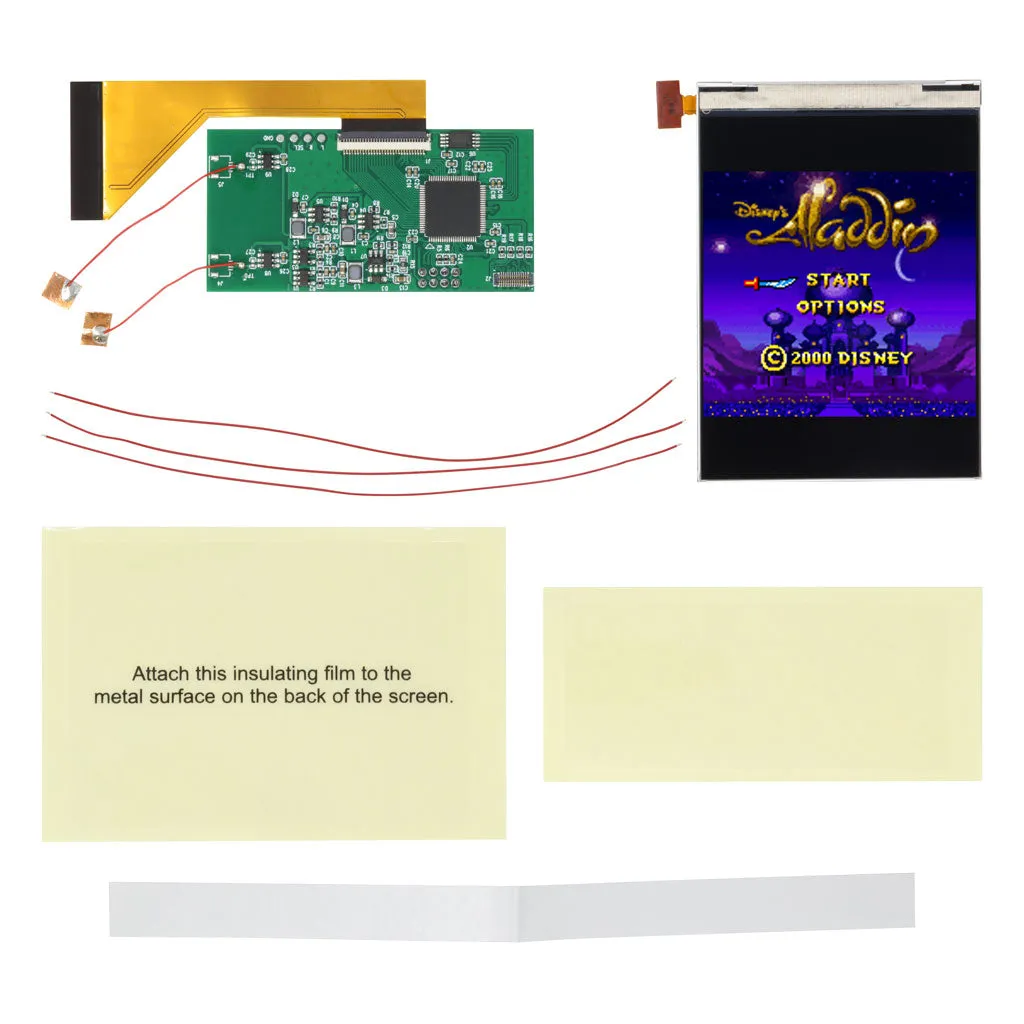

INCLUDED:

• 1x IPS LCD

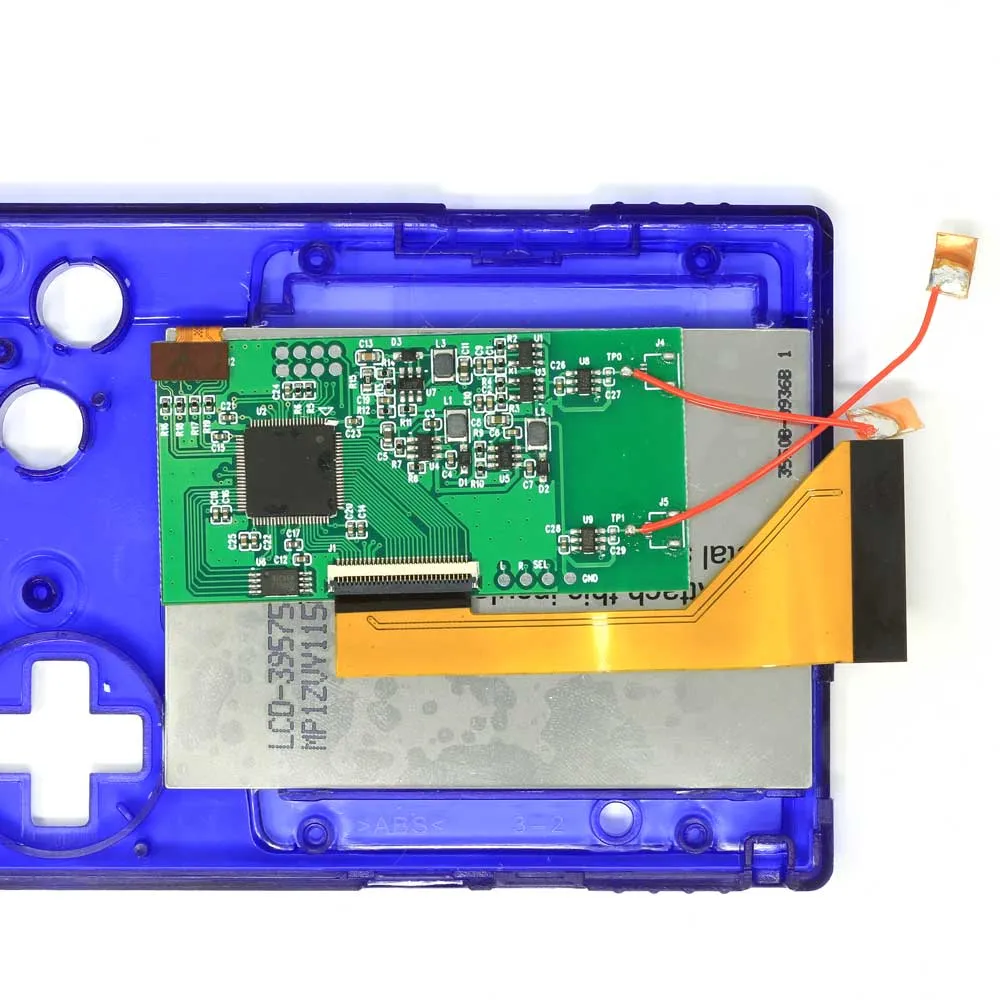

• 1x PCB with two pre-soldered touch sensor wires
• 1x Ribbon
• 2x Insulation films
• 3x Wires
• 1x Adhesive mounting strip

PAIRS WELL WITH:

DOCUMENTATION:

• Button Functionality Instructions:
• Connect "SEL"   to Select button
• Connect "L"   to A button
• Connect "R"   to B button
• Press Select  A and he brightness will decrease
• Press Select  B and the brightness will increase
• Press Select  A B at the same time and the color will change every 1 second

NOTES:

• Shell modification required
• Prestige shells will need some trimming near the D-Pad area inside shell, and the alignment posts/pins.
• After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please  for assistance.

WARNINGS:

• Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.

• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
