Name: Game Boy Color Q5 IPS LCD Backlight Kit with Laminated Lens and OSD - Hispeedido
SKU: 306697

Product Details ＋

**This kit is strongly recommended to use with **

Upgrade your gaming experience with the Game Boy Color Q5 Single Glass Laminated Backlight LCD Kit from HISPEEDIDO. With a built-in OSD menu, 20 brightness levels, and 31 logo color options, you can customize your gameplay like never before. The desaturation function and 8 color modes ensure a true-to-life display, while a 25% larger display area and frame blending provide a more immersive experience.

FEATURES:

Built-in OSD Menu.
20 Brightness Levels.

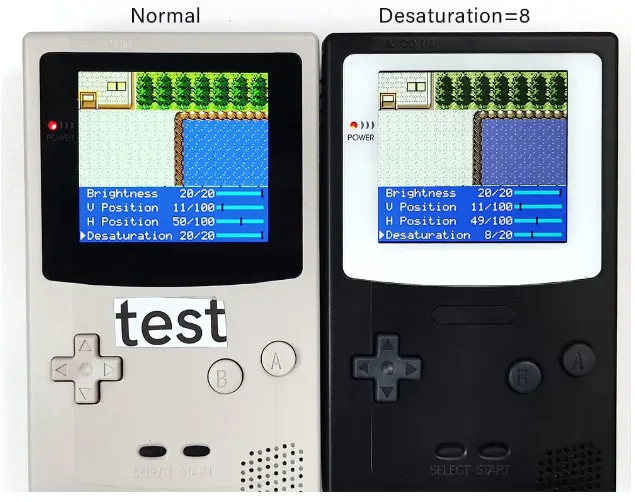

Desaturation Function in Normal Color Mode. This function can make the color of IPS LCD images closer to the original color of GBC games.

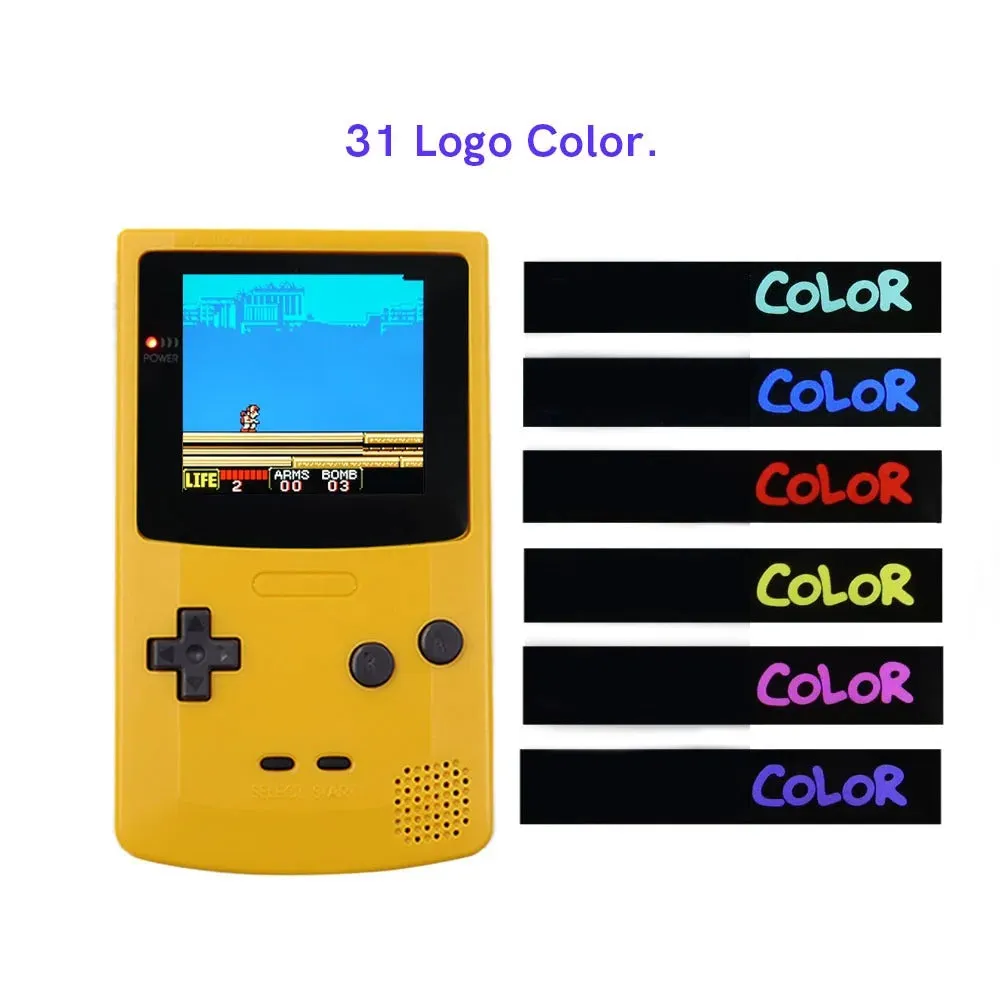

31 Logo Color Options.

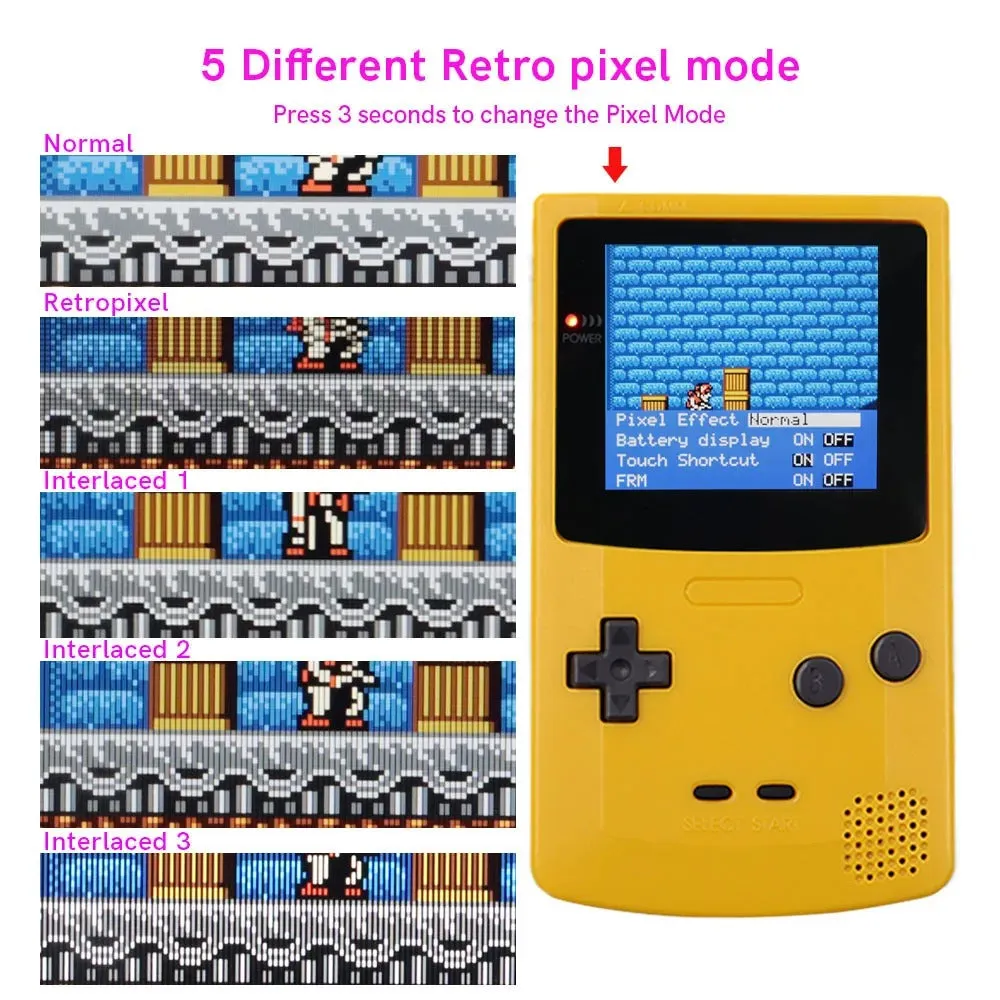

5 Pixel Effects.

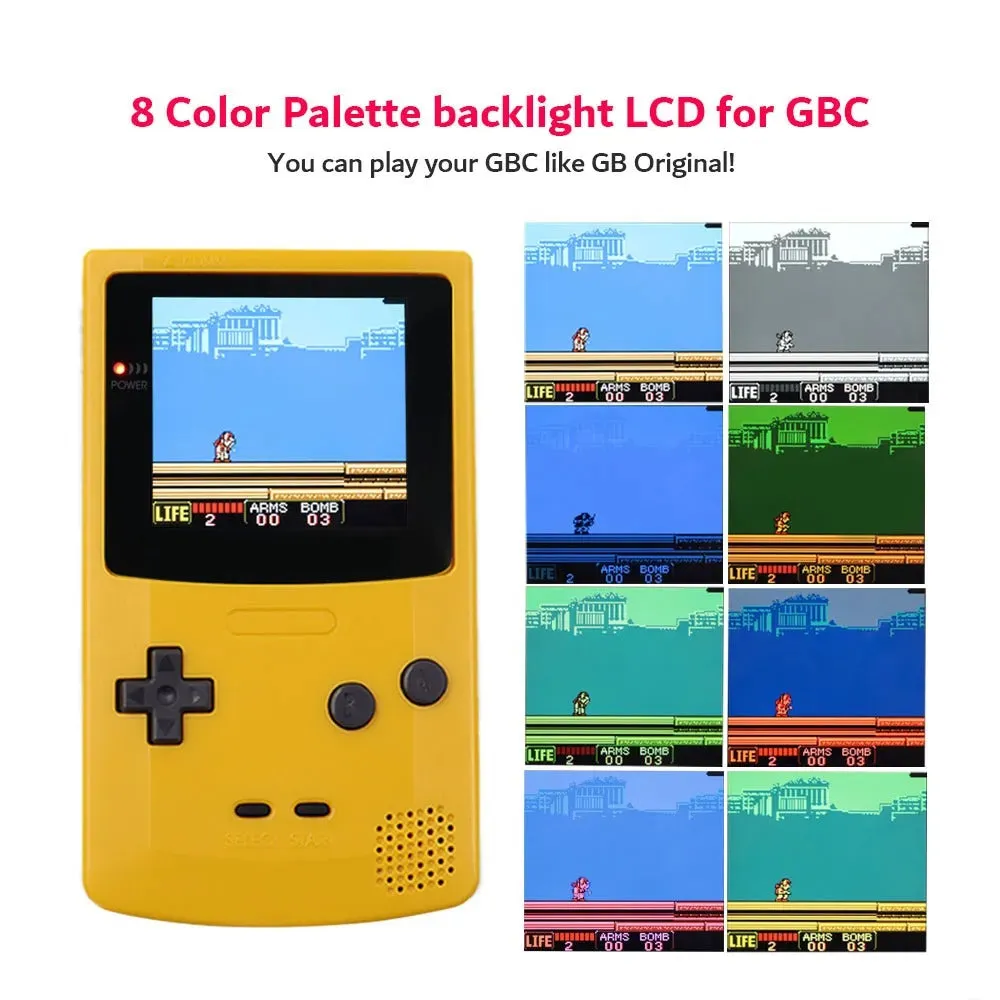

8 Adjustable Color Modes. (Color adjusting not available in normal color mode.)
16 to 1 Pixel Integer Scaling.
25% Larger Display Area.
Frame Blending.
LCD is pre-laminated to glass lens.
Display area is larger than the original. Only recommended when using a or Hispeedido. Shell modification required for all other shells. No refunds are given if a non-recommended shell is used.

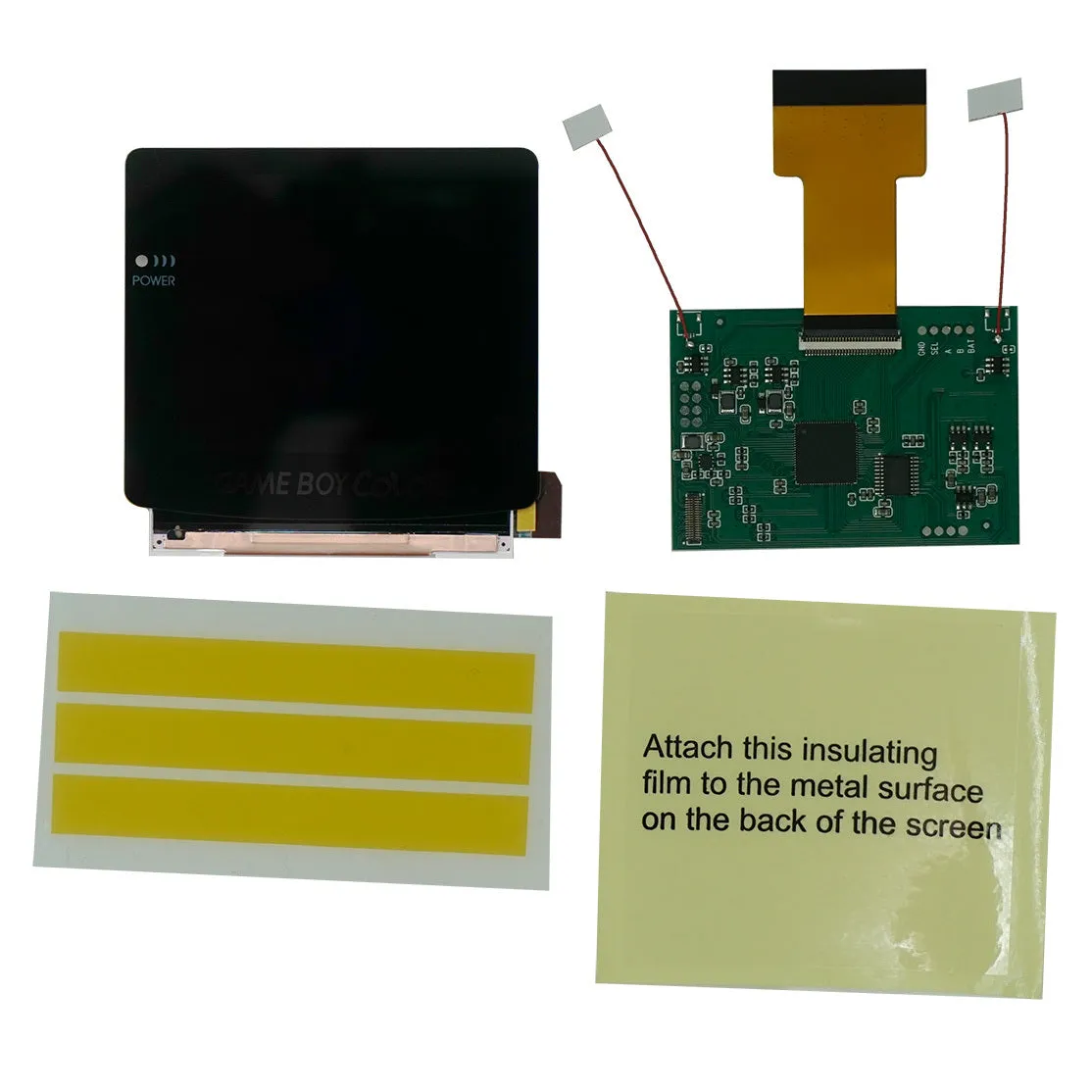

INCLUDED:

1x IPS LCD with laminated lens.
1x PCB with touch sensors
1x Ribbon
3x Pieces of Kapton Tape
1x Insulation Film
5x Wires.

PAIRS WELL WITH:

DOCUMENTATION:

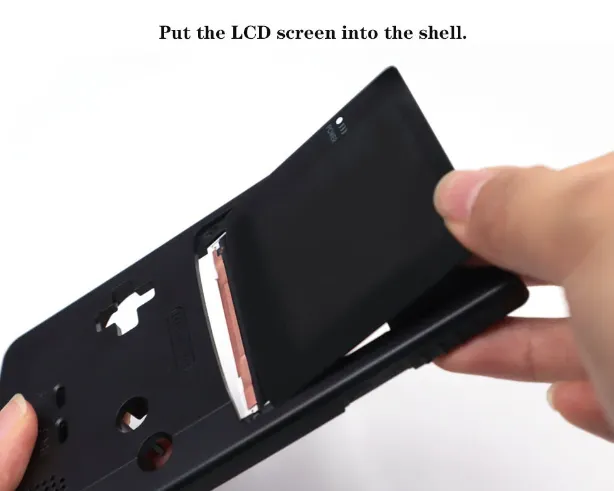

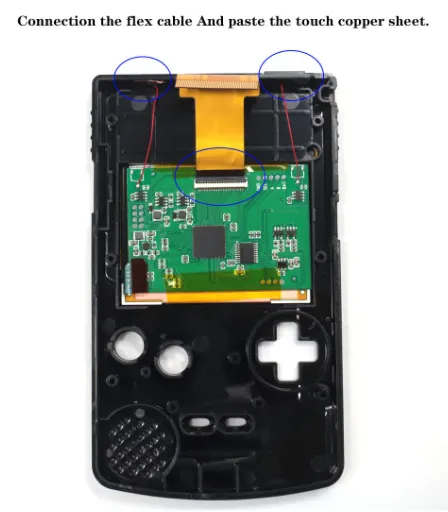

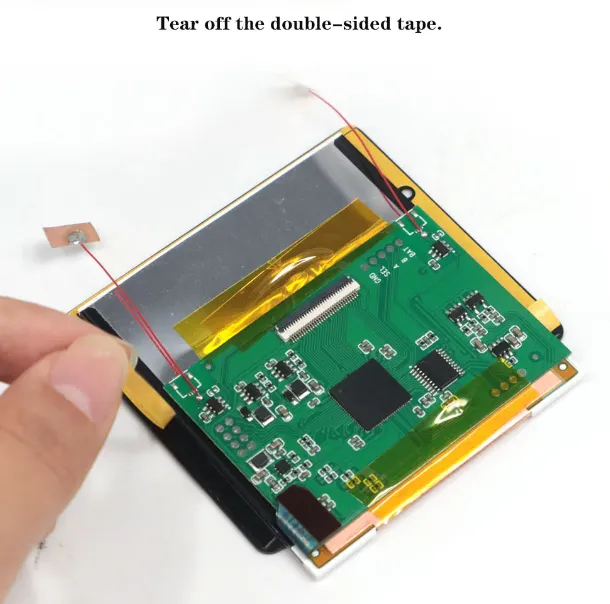

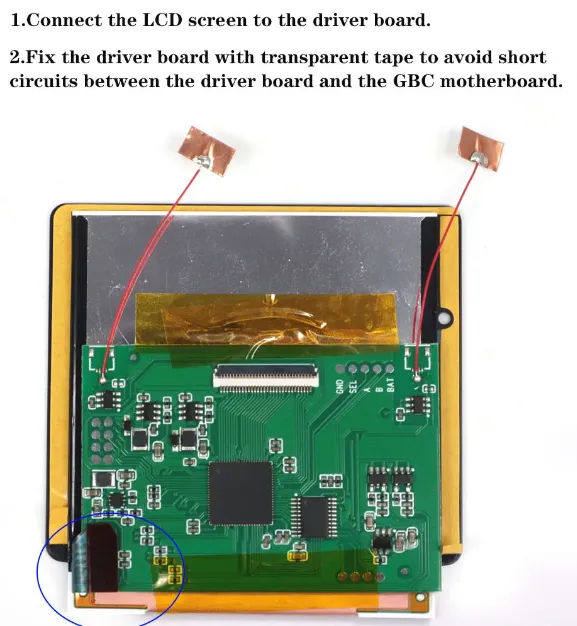

See product photos for install information.
- *Please read warning at the top of product page before proceeding with purchase/install. We only recommend pairing this IPS kit with or Hispeedido. All other shells will require modifications, install at your own risk.

NOTES:

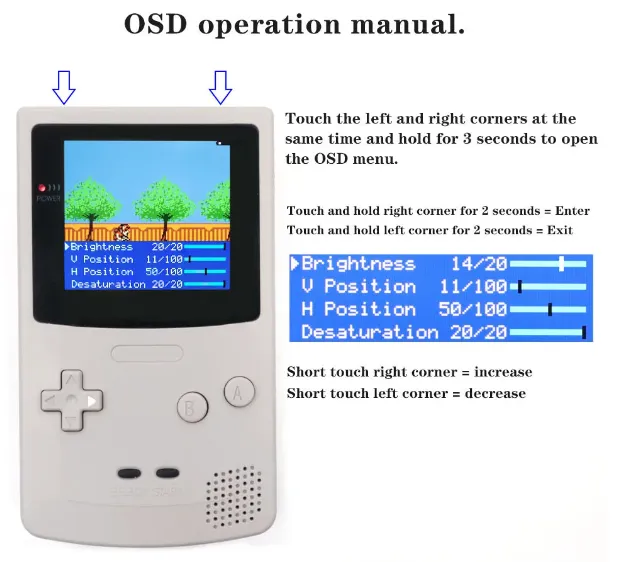

OSD can be operated with touch sensors (no soldering required) or button presses (requires soldering).

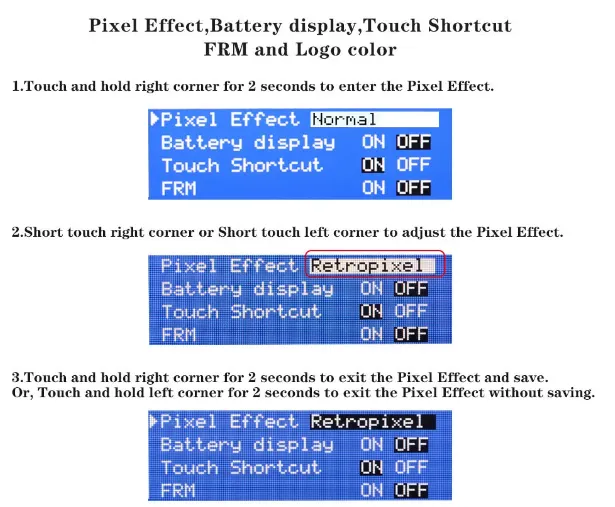

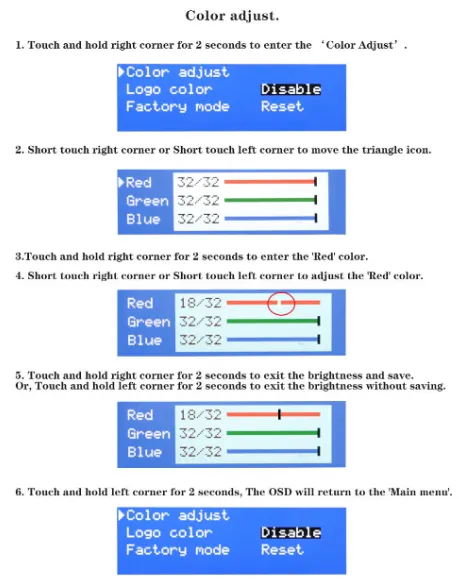

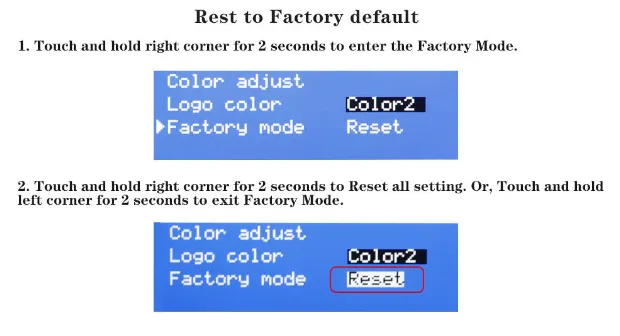

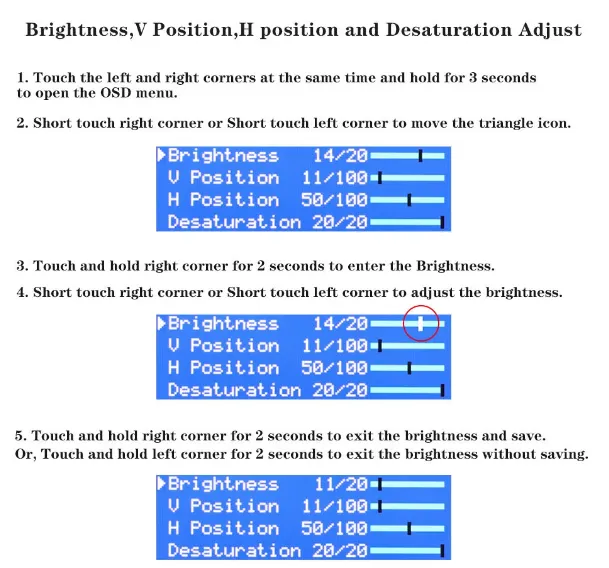

See product photos for OSD menu instructions.
We only recommend installing this kit in laminated shells. All other shells will require trimming, install at your own risk.

WARNINGS:

You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
