Product Details
＋

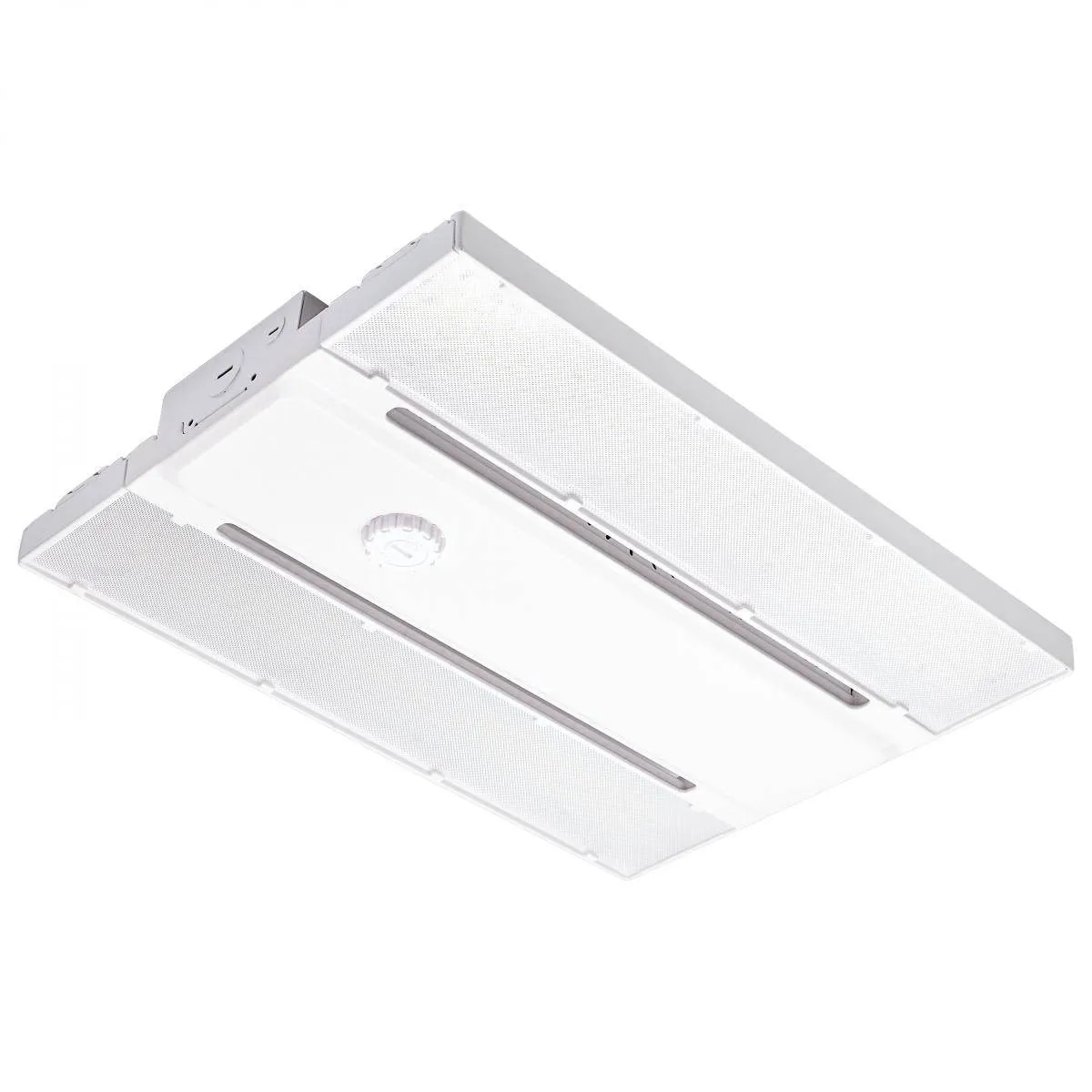

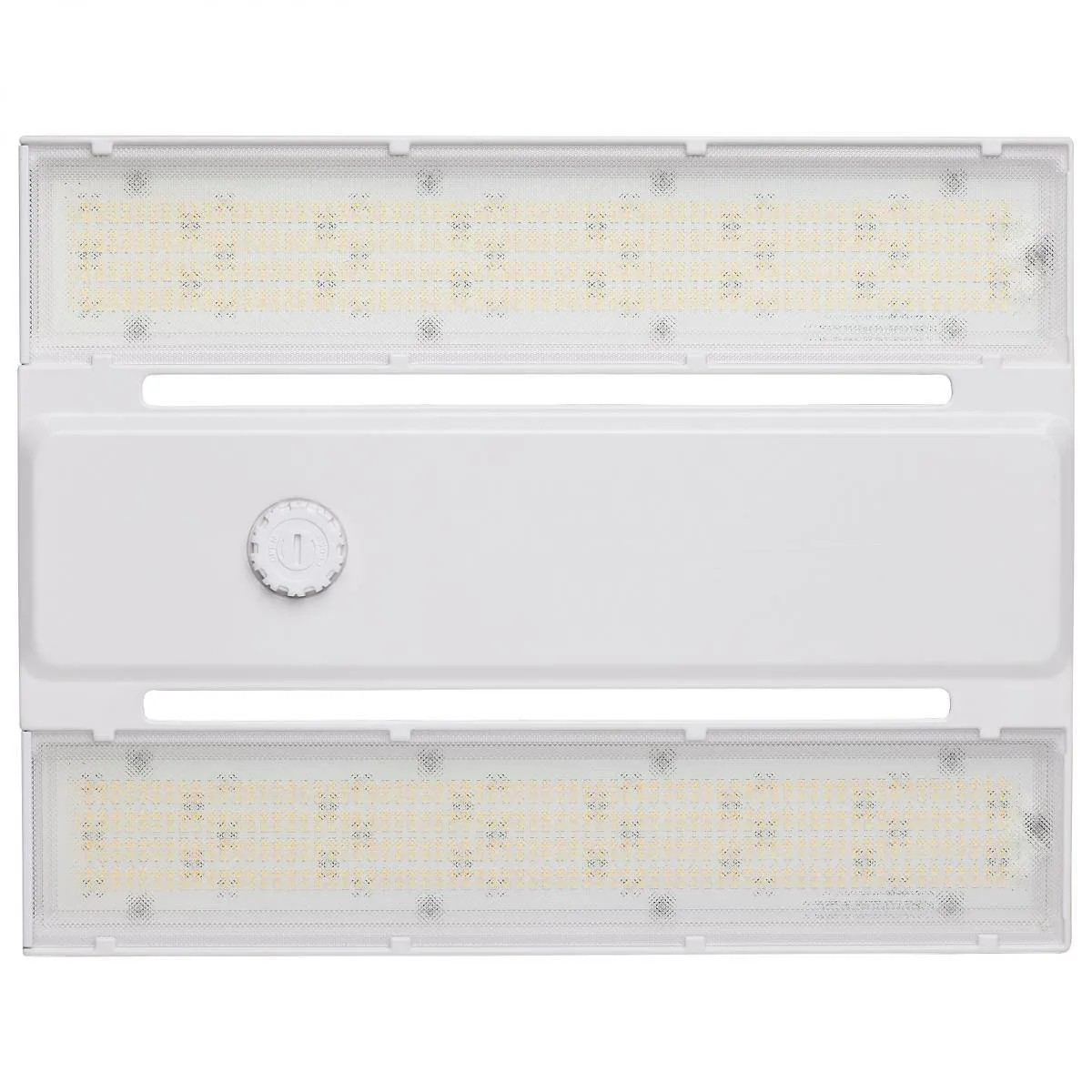

LED Linear High-Bay; 110W/130W/155W Wattage Selectable; 3K/4K/5K

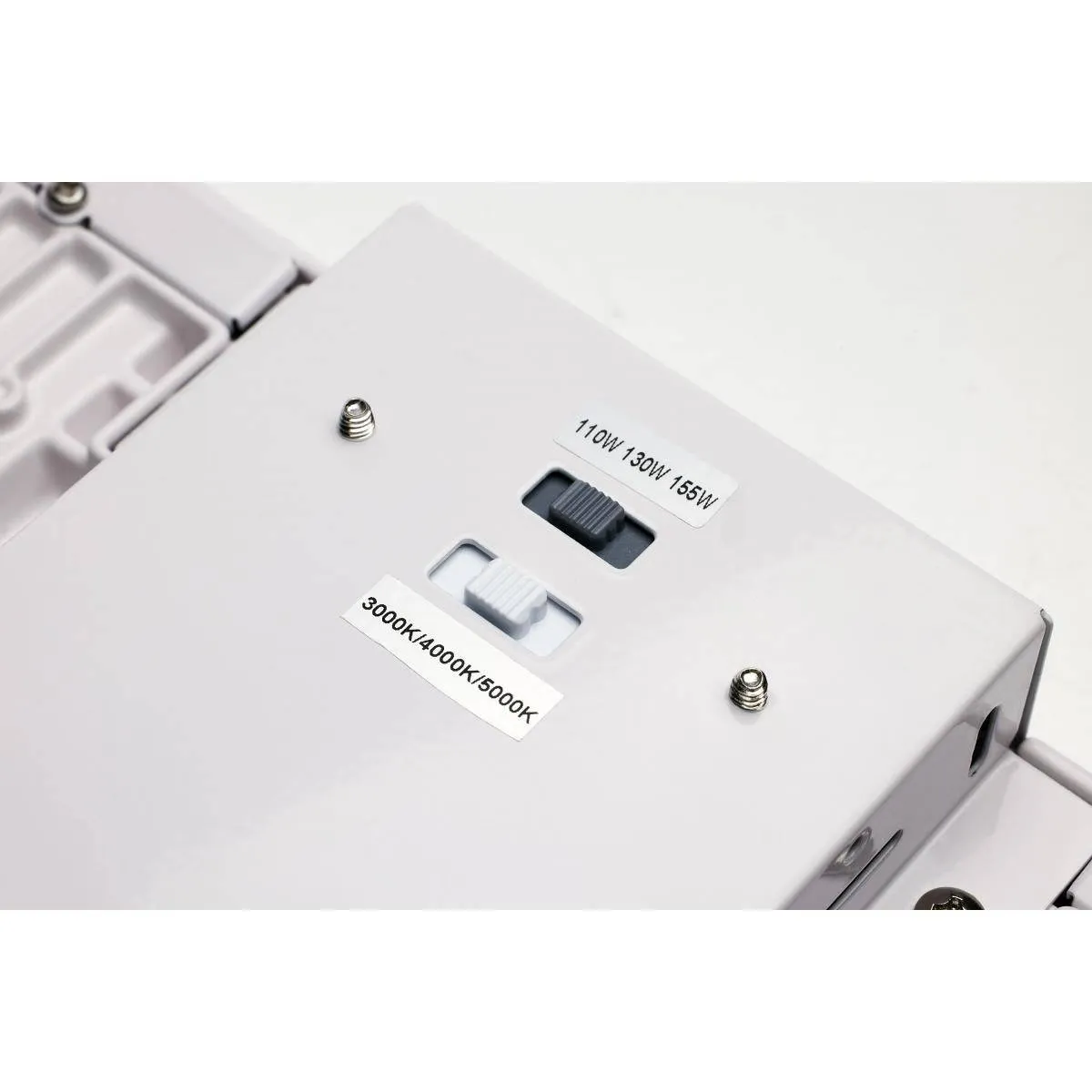

- CCT and Wattage Selectable
- Flicker Free Driver

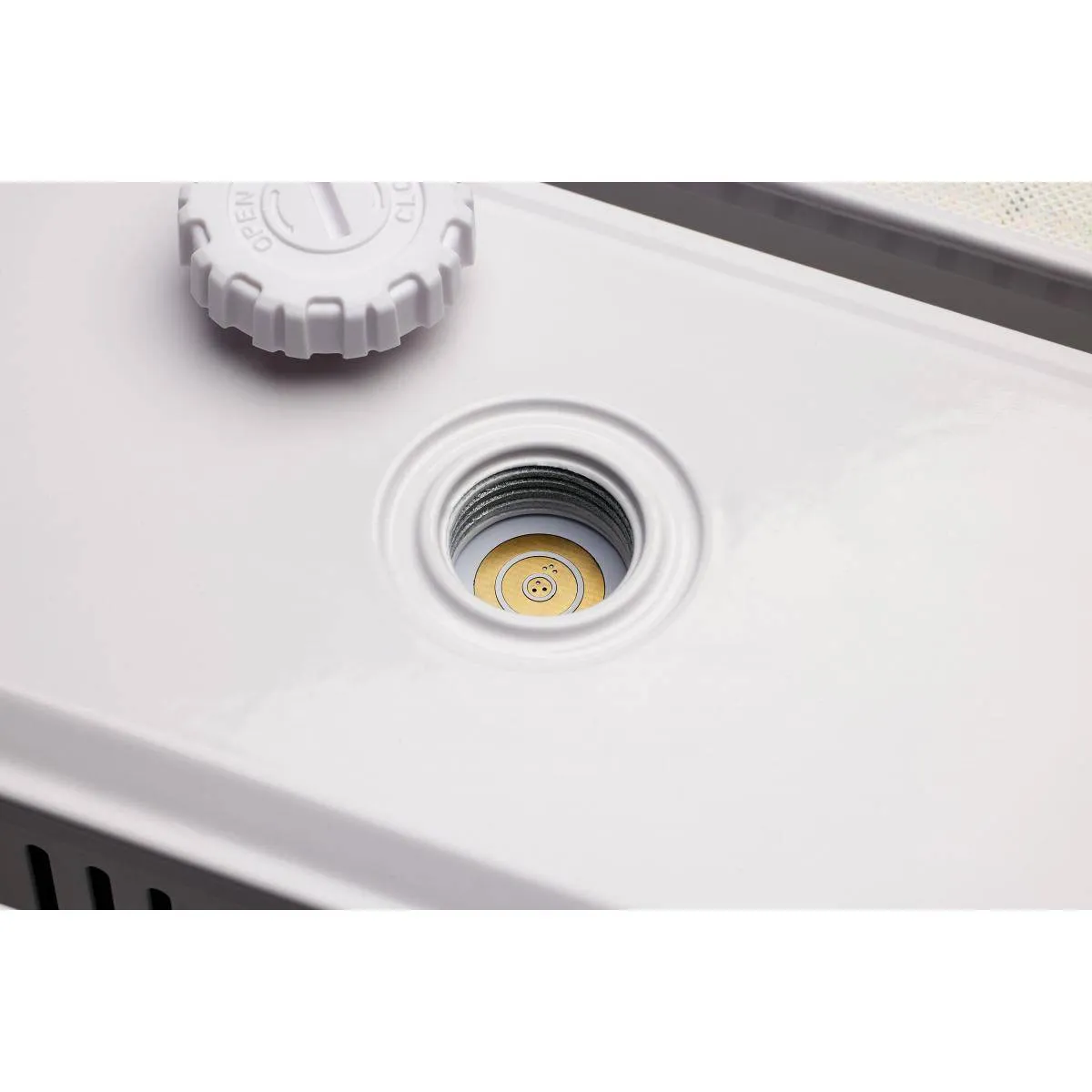

- Integrated Sensor Port
- 41-inch Suspension Kit Included
- 6kV Surge Protection
- 5 Year Warranty
| Fixture Type | Linear Hi-Bay |
| Finish | White |
| Wattage | 110W/130W/155W |
| Lumen Output | 15655L-21714L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| IP Rating | IP20 |
Specifications
| Technology | LED |
| Wattage | 110W/130W/155W |
| Lumen Output | 15655L-21714L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 90x90 |
| Rated Hours | 50000 |
| Operating Temperature | -40C (-40F) to 55C ( 131F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 6KV |
| Weight (lb.) | 5.07 |
| IP Rating | IP20 |
| Material | Die-cast Aluminum |
Dimensions
| Height (in.) | 1.77 |
| Width (in.) | 11.02 |
| Length (in.) | 14.17 |
Compliance
| Safety Listing | cULus - Certified |
| Location Rating | Damp |
| DLC Approved | Yes |
| DLC ID | S-K0QYWM |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
Additional Information
| Includes | 41 Inch Suspension Kit |
| Warranty |
Packaging
| Each UPC | 045923657283 |
| Each Quantity | 1 |
| Each Length (in.) | 14.96 |
| Each Width (in.) | 11.81 |
| Each Height (in.) | 2.95 |
