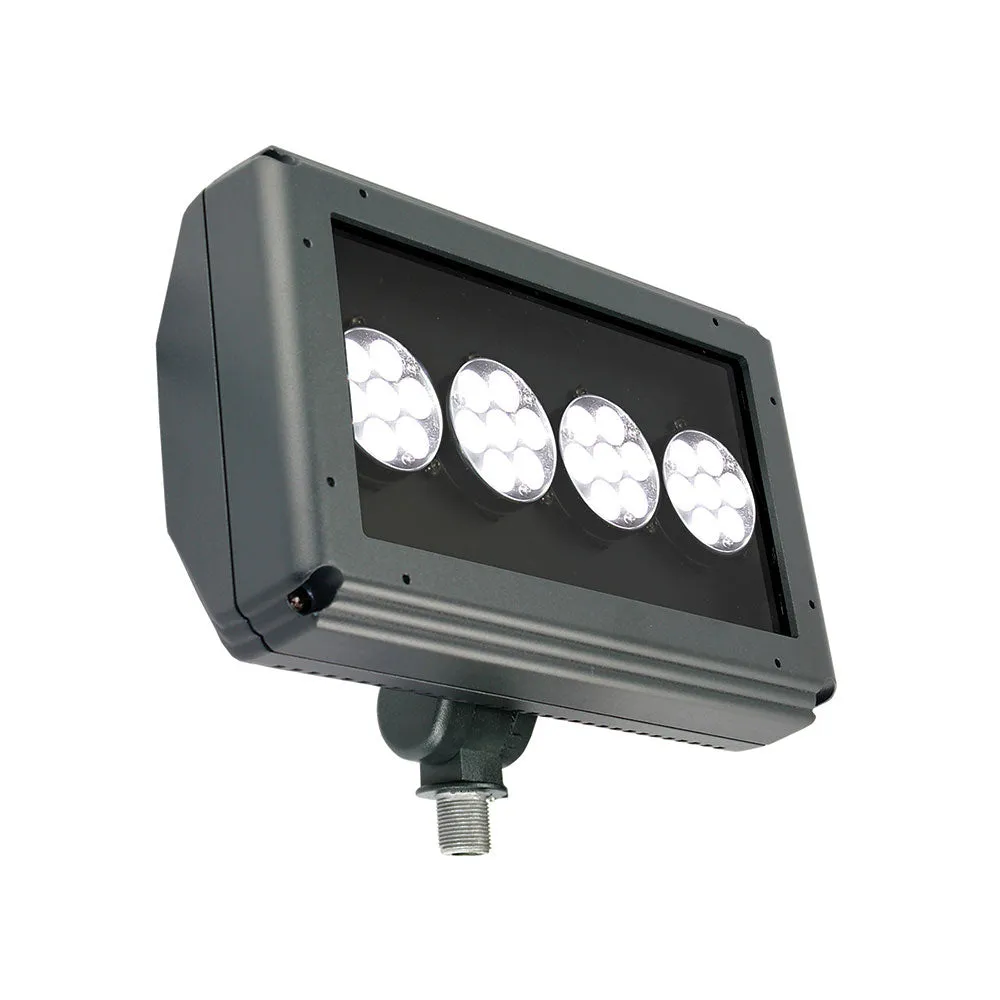

LSI Industries Architectural Flood XFLM

The XFLM is the ideal floodlighting solution for a wide range of outdoor architectural applications. Stunningly good looks, durable construction and outstanding performance are the benchmarks of the XFLM Series. Its architecturally soft-sculptured lines deliver the attention to detail required to properly accentuate your project. The tough, long-lasting construction of its die-cast aluminum housing ensures it will stand up under the toughest elements. Interchangeable LED optical panels provide a choice of distributions which are sure to meet your needs.

Take your pick from multiple high-lumen output LED packages. The XFLM has optimized beam control, external aiming adjustability and superior thermal management. After a quick and easy installation, the XFLM has a minimum of 60,000 hours to 100,000 hours of expected life and a 5-year warranty.

Features & Specifications

Architecturally styled, one-piece, die-cast aluminum, 360 alloy, low copper housing with .156" nominal wall thickness. One-piece vulcanized silicone gasket seals the door frame to the housing and is concealed when fixture is closed. A pressure stabilizing vent breather prevents seal fatigue and failure.

Door frame secures to housing via four, stainless steel recessed captive Torx T-30 screws.

3/16" thick clear tempered glass lens is sealed to door frame by a one-piece silicone gasket and ten black zinc plated clips.

Finished with LSIs DuraGrip® polyester powder coat finishing process to withstand extreme weather changes without cracking or peeling.

6 high performance distributions; HF, VF, MF, NF, WF, SP.

Operating temperature: -40°C to 40°C (-40°F to 104°F)

Standard mount is a heavy duty die cast knuckle assembly with 3/4-14 NPS male threaded arm that provides 185° range of motion. Knuckle locking plate teeth and arm allow for tilt / aiming in 7.5° increments. Aiming angle markings in 15° increments allow reliable error free aiming. Standard knuckle mount tested to withstand up to 3G vibration load rating per ANSI C136.31. Optional YM- Yoke Mount is also available.

Mounting accessories include Stanchion Mount, Post-Top Adapter, Junction Box, & Wall Mount for recessed or surface mount applications.

Meets Buy American Act requirements.

Max Lumens

• 7,000

Min Lumens

• 3,000

Sensors

• Photocell

Color Temperatures

• 3500
• 4000
• 5000

Additional Options

Product Files
