Product Details
＋

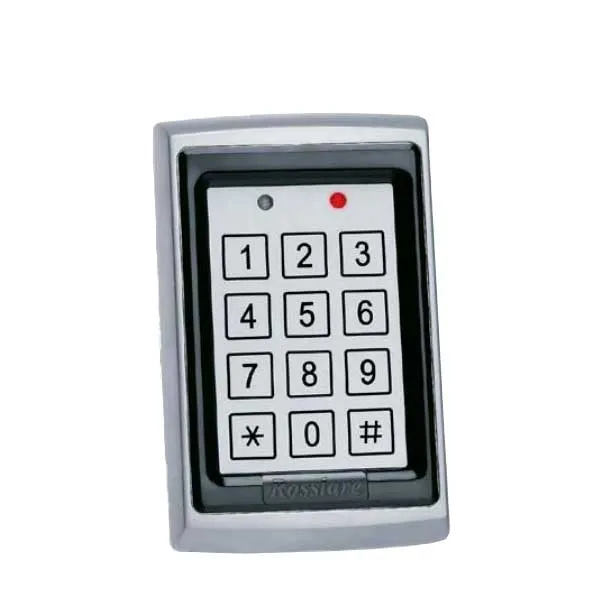

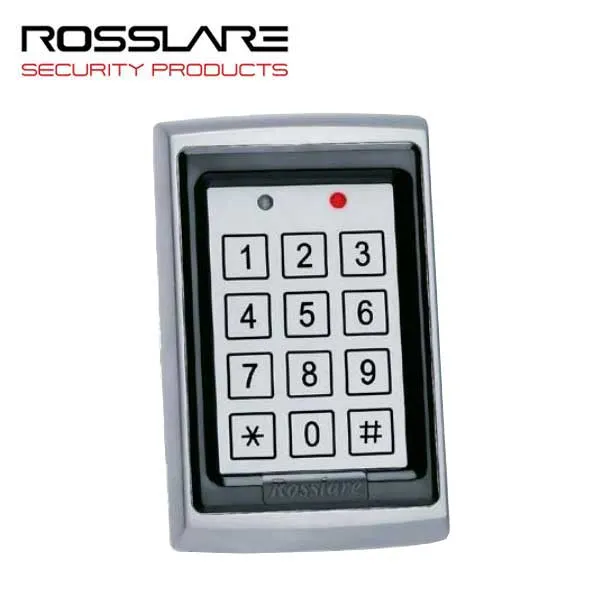

This advanced anti-vandal, 500 user standalone controller features a unique combination of a highly robust metallic unit with a built-in proximity reader for PIN and RFID user credentials. AC-Q44 has a slim and rugged metal construction with no moving parts, ideal for high traffic and extremely harsh environments. This fully sealed model is epoxy filled, has advanced programming options and flexible operation modes. A variety of Rosslare's proximity cards and tags is available for use with this unit. The AC-Q44 compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.
Features
- Built-in 125 kHz RFID card reader
- 500 users can have PIN and / or RFID user credentials for granting access
- Highly-sensitive Piezo metal keys
- Smooth attractive design, with anti-vandal construction
- 3 operational Security Levels can be selected with special PIN codes
- Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
- 2 tri-colored LEDs and integral sounder for programming and operation
- Wide range of low voltage AC/DC power input
Specifications:
| Operating Voltage Range: | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current: | Standby: 65 mA, at 12 VDC Maximum: 125 mA, at 12 VDC |
| Relay Outputs: | Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C |
| Tamper: | Optical back tamper sensor, O.C. active low 32mA max sink current |
| Inputs: | REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Proximity Card Reader | Maximum read range: 65 mm (2.5 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards |
| Capacity: | 500 users, single / dual code each |
| Keypad: | 3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry |
| User levels: |
Normal, Secure, Master |
| Security Modes: | Normal, Bypass, Secure |
| Audio/Visual: | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design: | Epoxy potted, fully sealed in a rugged metal slim enclosure, super strong construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments |
| RFI Protection | > 10 V/m up to 1000 MHz |
| Dimensions: | 4.72 x 3 x 0.85 in. |
| Certifications: | IP65 Water Resistant |
| Manufacturer's Warranty: | 5-Year Limited Product Warranty |
