Product Details
＋

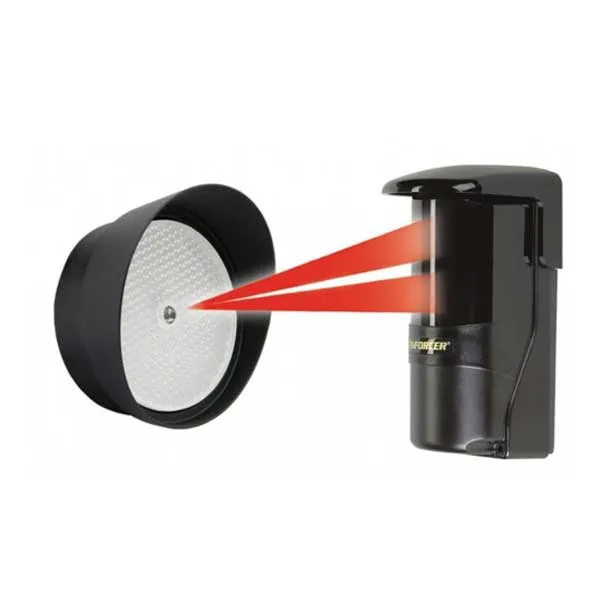

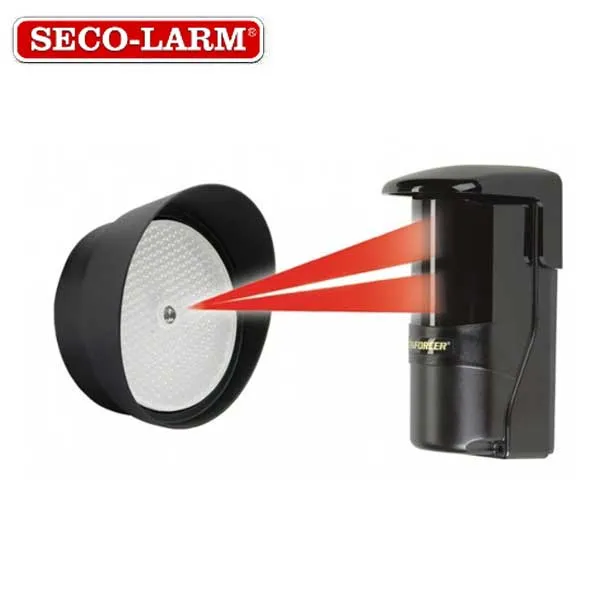

The Reflective Photoelectric Beam Sensor has an adjustable range of up to 50 feet. Perfect for access control applications, automated garage doors or gates.
- For outdoor gates, garage doors, etc.
- Weatherproof (IP55) construction for indoor/outdoor use
- Anti-condensation housing
- Dual-color LED alignment system
- Form C relay: 500mA@30VAC/VDC
- Tamper switch: N.C. 500mA@30VAC/VDC
- 31/4” (82mm) Round reflector with hood included
- Compact size
- Monitored output: N.C., 10kΩ Resistor
- Typical Applications
- For garage or overhead doors, outdoor gates
- Industrial automation: detect objects on manufacturing line
Specifications
| Type | Reflective photoelectric beam sensor |
| Current Draw | Standby - 55mA@12VDC, Active - 40mA@12VDC |
| Sensing Range | Up to 50' (15m) |
| Operating Voltage | 12-30V DC/AC 60Hz, 100mA |
| Reaction time | 10ms |
| Light Source | IR LED |
| LEDs - Red | Solid, No beam signal, triggered |
| LEDs - Green | Solid, Good beam signal, properly aligned |
| LEDs | Alternating Flash - Poor beam signal |
| Alarm Output | SPDT relay output (NO/NC/COM) |
| Switching Capacity | 500mA@30VAC/VDC |
| Tamper Switch | 500mA@30VAC/VDC |
| Operating Temperature | -13º~140º F (-25º~60º C) |
| Enclosure | IP55 |
