Product Details
＋
Note: Product Images/videos are shown for illustrative purposes only and may differ from the actual product.
Fast Adjustment, Easy and Enjoyable Flying.
Parameters can be adjusted through the module for flight control, making wireless configuration no longer just a dream.
(Bluetooth automatically turns off one minute after power-up.)
(Bluetooth automatically turns off one minute after power-up.)
Customizable length, compatible with most cinewhoops.

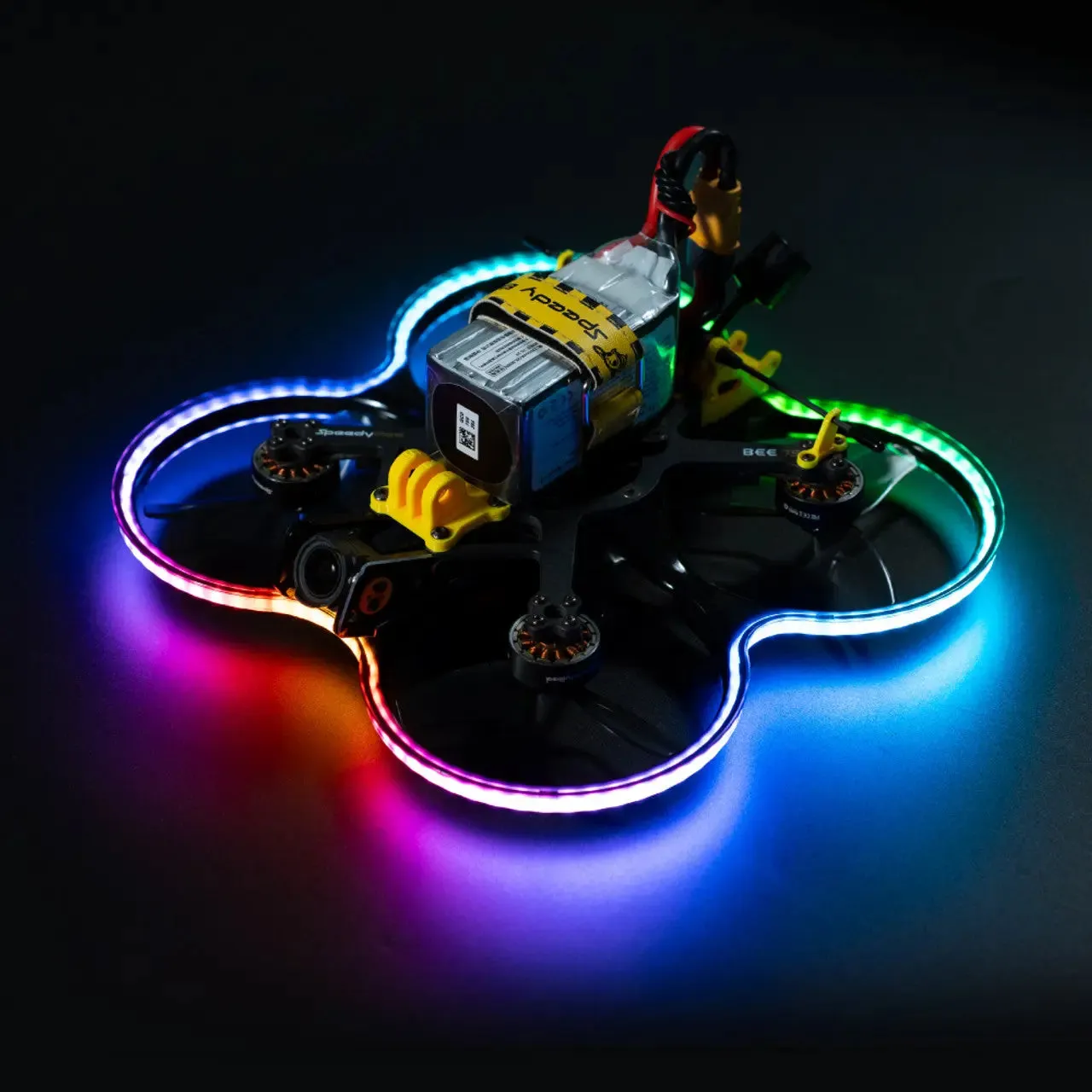

Stylish and colorful, wireless with personality.
Offers seven preset basic effects and allows for wireless customization of your personal lighting styles through the app.
BOOT Key Initiation
Pressing the button enables the flight controller to enter DFU mode.
(only supports flight controllers with a BOOT pad)
(only supports flight controllers with a BOOT pad)
Installation Instructions
SPECIFICATION:- |
|
| Product Name | BEC Module |
| Input Voltage | 7.4V-25.2V |
| Output Voltage | 4.0V-4.5V |
| Operating Current | Max ~2A (5V) |
| Bluetooth | Supported |
| WiFi | Supported, activated automatically only when updating the module's firmware |
| Communication Interface | Serial (UART) |
| Baudrate | 115200 |
| Power Indicator | The Red light stays on indicating the module is powered |
| Button Function | Power on/off, switch effects |
| Dimensions | 23 x 15 x 6.3 mm (excluding screws and fittings) |
| Weight | 2g |
|
|
|
| Product Name | Meteor LED |
| Length Suitable for Model | SpeedyBee BEE35 |
| Number of LEDs | 126 |
| Adhesive Backing | Yes |
| Input Voltage | 4.0V-4.5V |
| Operating Current | Max ~1.7A (5V) |
| Dimensions | 785 x 5 x 2 mm |
| Weight | 10.5g |
Manual
