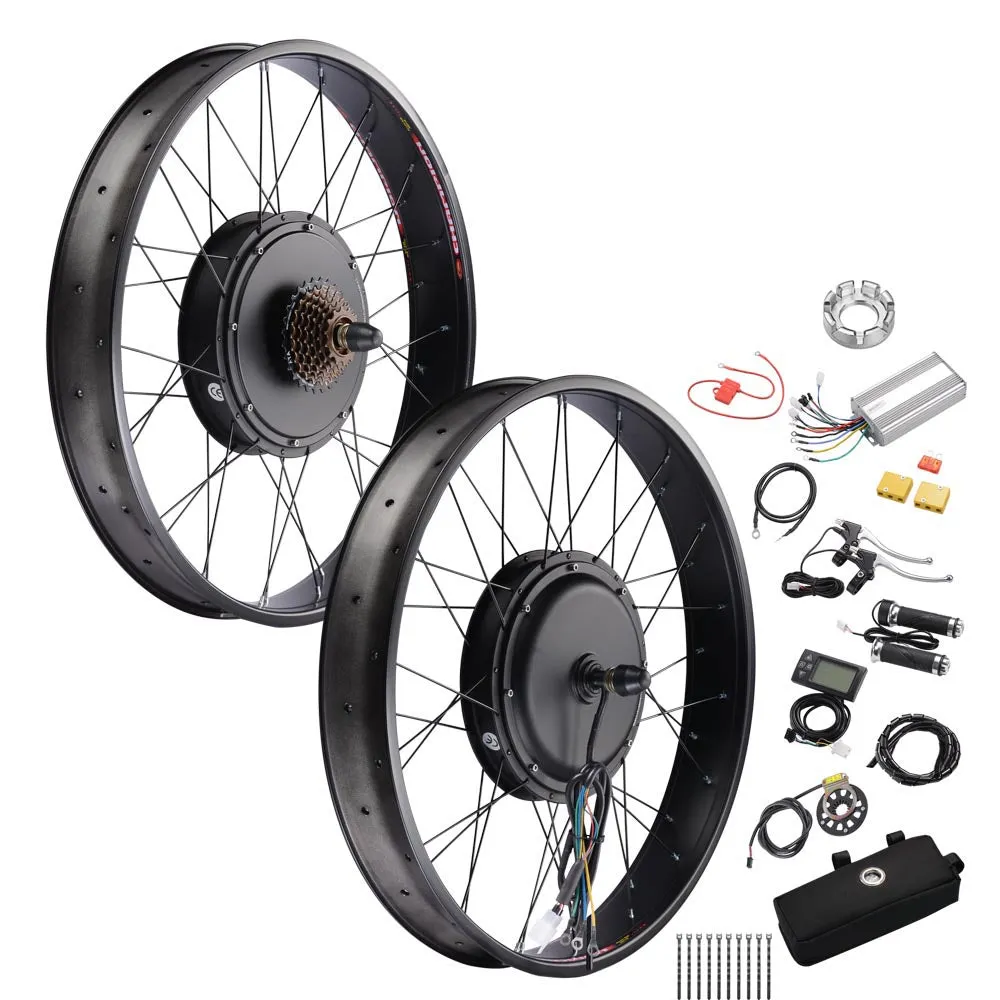

TheLAShop eBike Kit fit for 26x4 inch Fat Bikes, with Front and Rear Hub options. 1500W 48V powerful brushless gearless hub motor makes your bicycle an electric power moped, accelerates the speed up to 34 mile/h, allow you to fully enjoy the pleasure of riding; Suitable for mountain bikes, road bikes and cruise bike.

Features:

• Option - Front Hub Motor Kit with tire excluded, fit for 5 1/8" front dropout spacing & 26"x4" tire

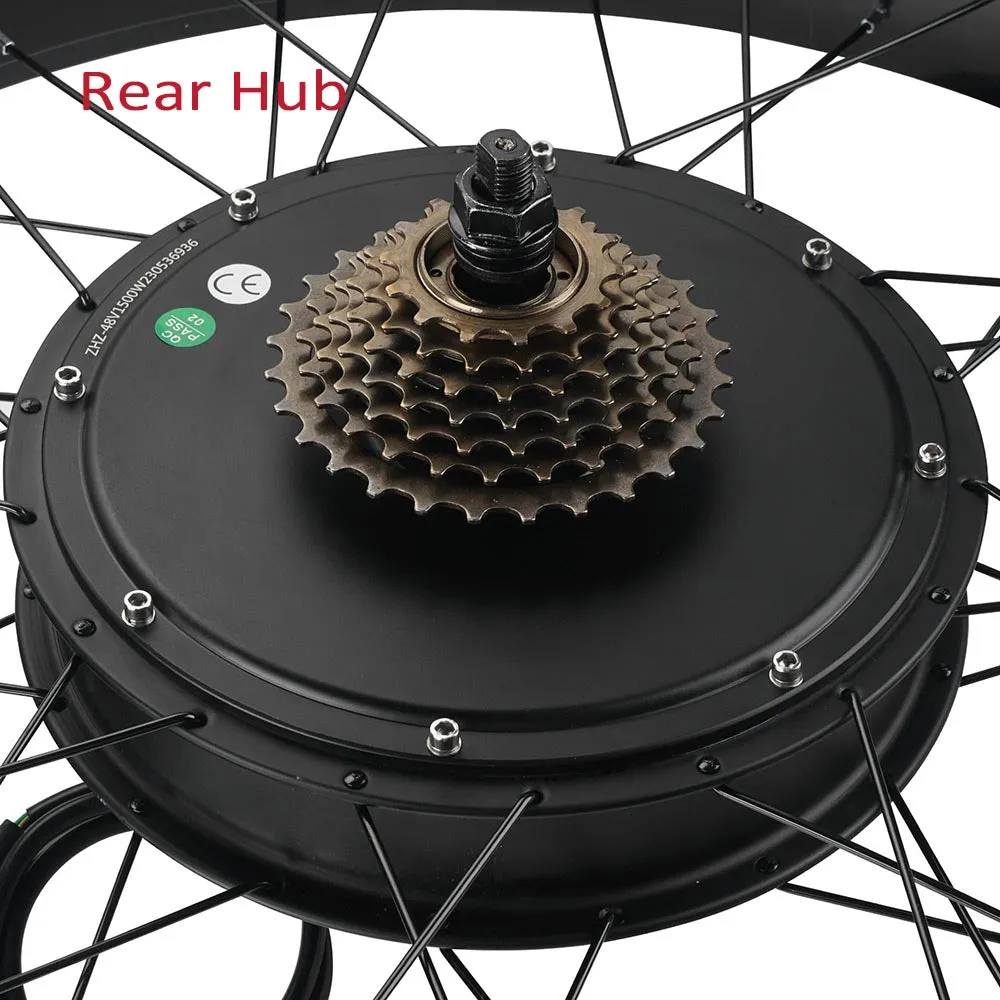

• Option - Rear Hub Motor Kit with tire excluded, fit for 6 14/16" rear dropout spacing & 26"x4" tire

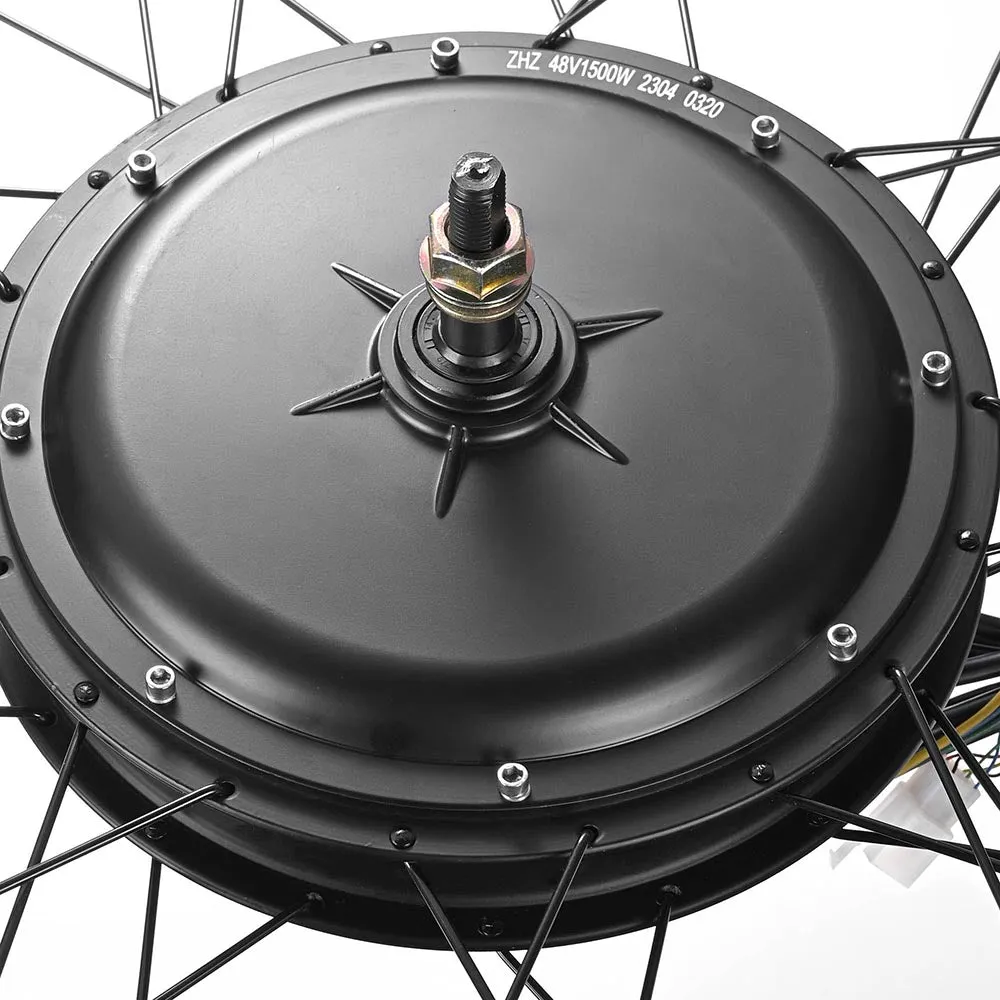

• Brushless and gearless hub motor for efficient running and converting bicycle to be electric bike
• Pedal assist system for sensing your pedal cadence and allowing you to ride electric bike comfortably
• Dual mode controller works under Hall effect and non-Hall effect for extending bicycle life
• Aluminum alloy frame for durability and LCD operation panel for displaying battery power and speed
• Brake levers for cutting off the power and braking for safety; CE certificated for quality assurance

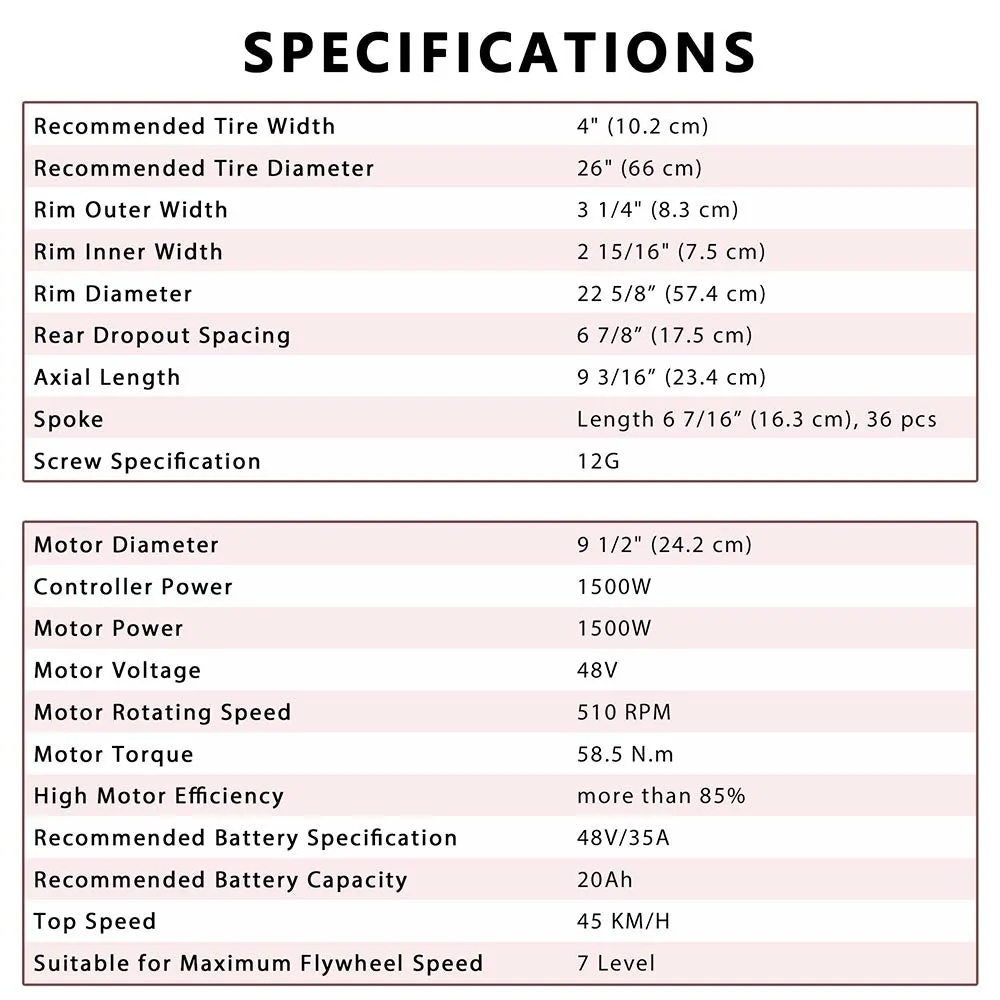

Specifications:

Options	Front Hub	Rear Hub

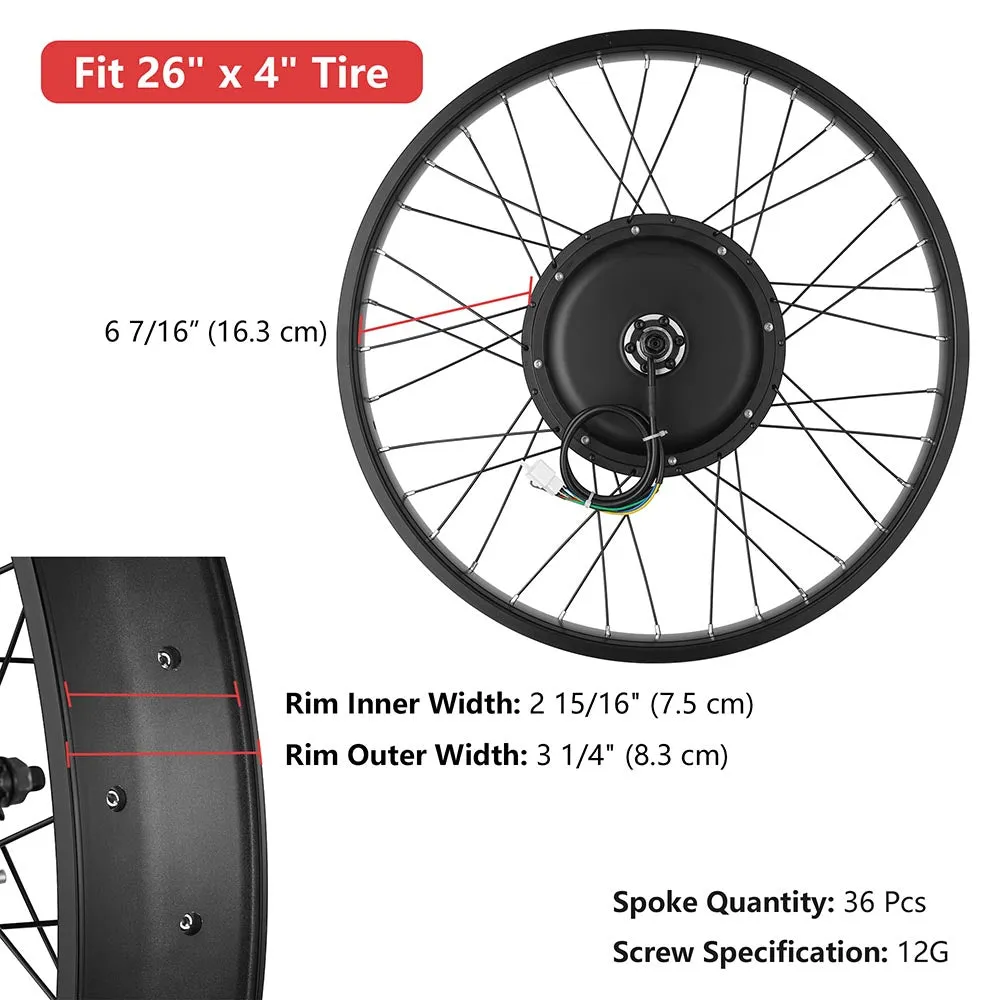

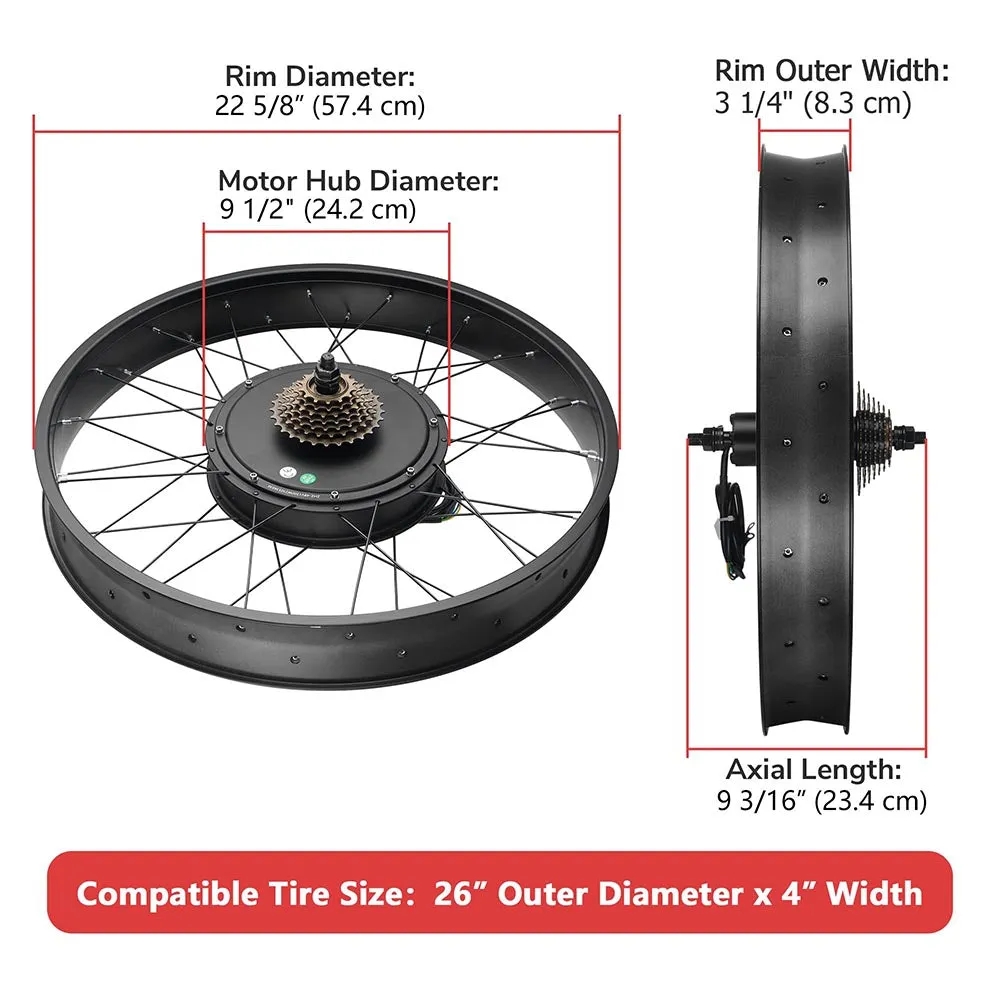

Overall Size(Dia.xW)	22 7/16" x 3 1/4" (57 x 8.3 cm)
Suitable Tire Size(Dia.xW)	26" x 4.0" (66 x 10.2 cm)
Axle Length	7 7/8" (20 cm)	9 3/16" (23.4 cm)
Front Dropout Spacing	5 1/8" (13 cm)	--

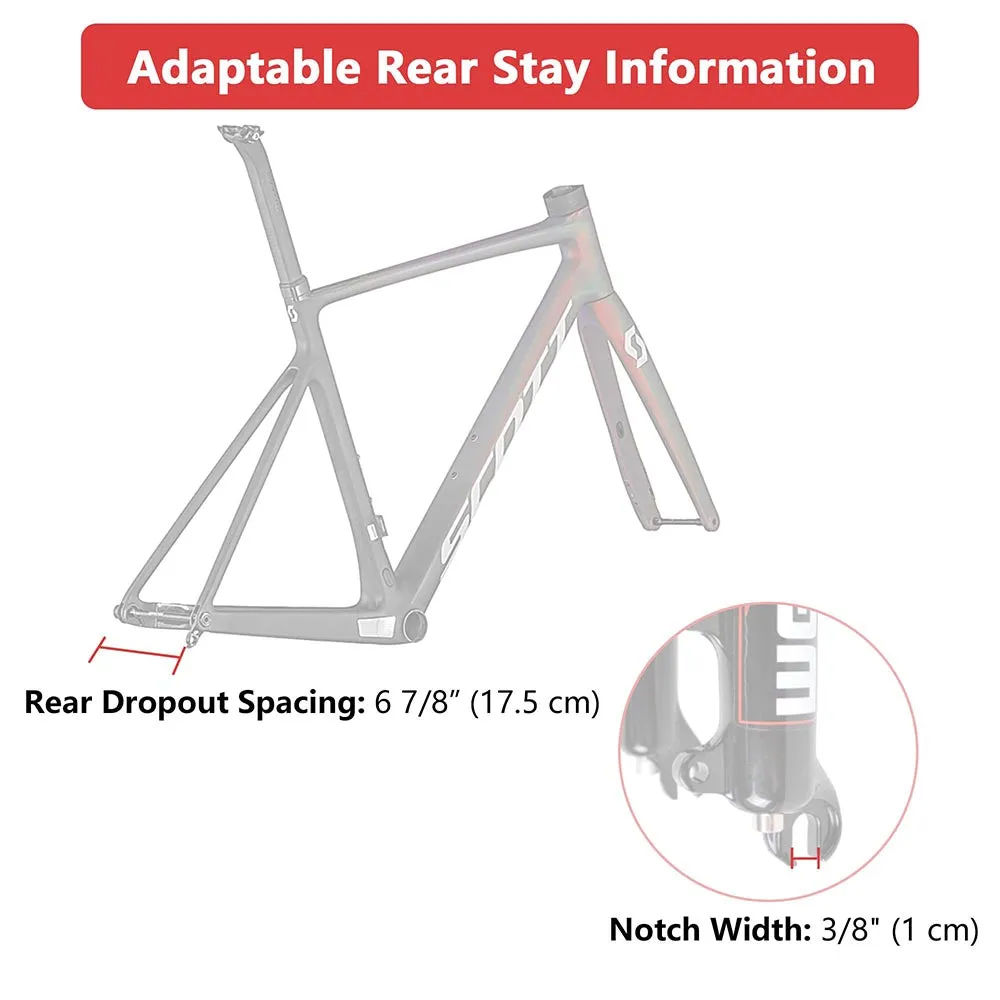

Rear Dropout Spacing	--	6 14/16" (17.5 cm)
Spokes Length	6 5/16" (16 cm)
Controller Size(LxWxH)	8 1/4" x 4 1/8" x 1 15/16" (21 x 10.5 x 5 cm)
The Number of Spokes	36
Controller Current Limit	35A
Controller Power	1500 W
Motor Power	1500 W
Motor Voltage	48 V
Suitable Battery Type and Parameters	48v20AH, about 40KM of travel.
Load Capacity	331 Lbs (150 kg)
Net Weight	23.15 Lbs (10.5 kg)	23.6 Lbs (10.7 kg)

Package Includes:

Option: Front Hub	Option: Rear Hub

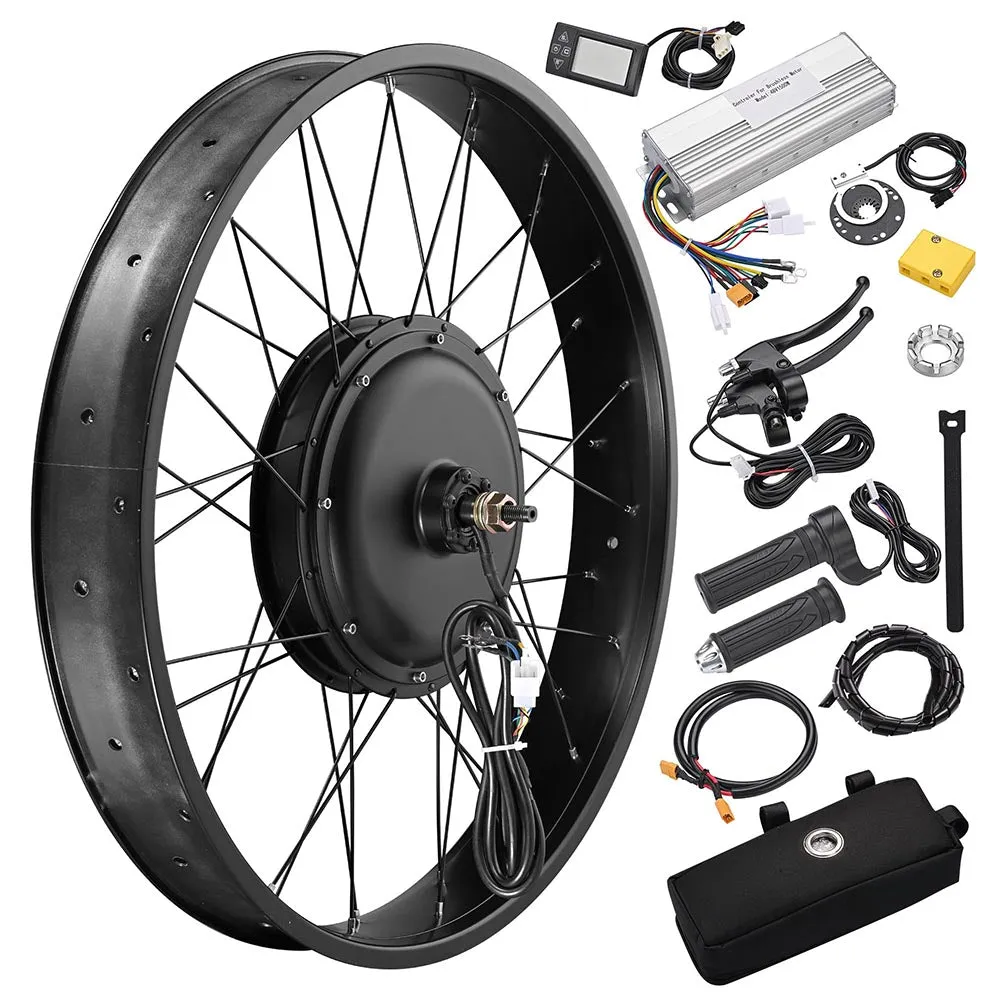

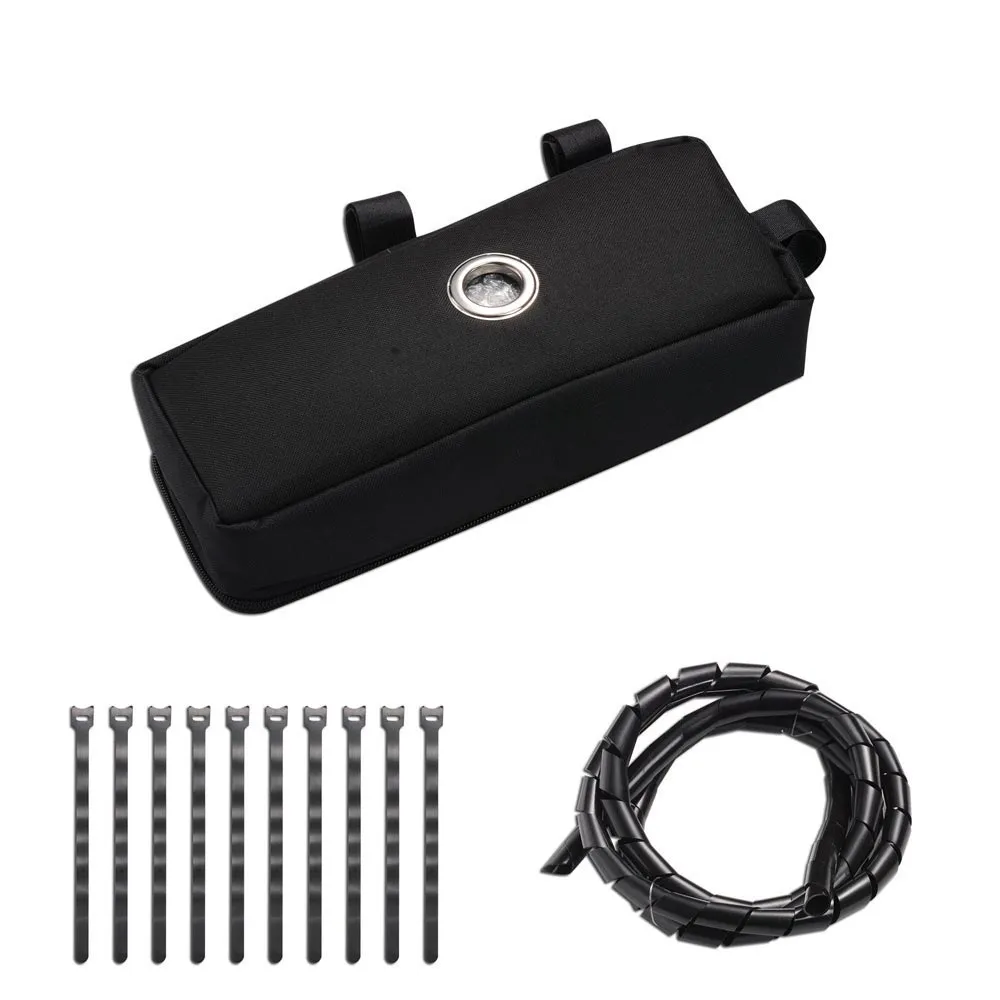

1x 26" Front Wheel Hub with Brushless Hub Motor 1x Battery Connection Cable 1x Electric Controller 2x Hand Brakes 2x Handle Grips 1x Thumb Throttle 1x Controller Bag 1x Set of Winding Pipe and Cable Ties 1x PAS Sensor 1x LCD Display 1x Spare Fuse 2x Terminal Boxes 1x Manual	1x Rear Wheel with Brushless Hub Motor (Tire is not included) 1x Dual Mode Motor Controller 2x Brake Levers 1x Handle Grip 1x Twist Throttle Grip 1x Controller Bag 2x Winding Pipes 10x Cable Ties 1x PAS Sensor 1x LCD Meter 1x Junction Box

Notice:

• 1.Battery and charger are not included, please prepare them before using.
• 2.The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc.
• 3.Please go to automobile repair shops with standard business license for modification.
• 4.For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
